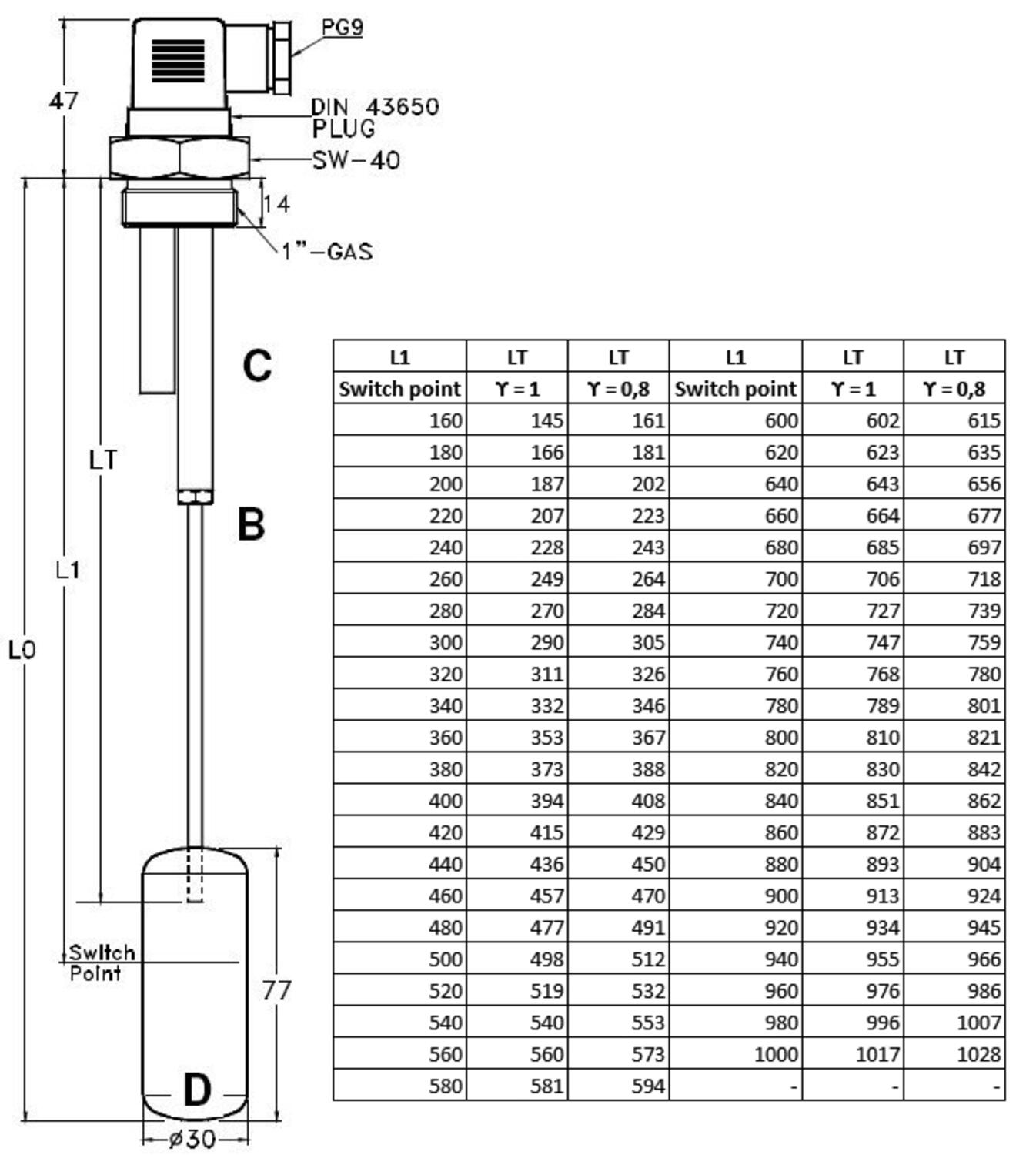

ADJUSTABLE level control for the monitoring of liquids both in industrial and civil environment. Proposed in 2 standard versions of rod length, all intermediate lengths are obtained by the user simply shortening the rod of the float.
The principle of operation of these instruments is based on the drive of a reed switch, located in the head of the instrument, as a result of the hydrostatic thrust exerted by the liquid on the float. The absence of moving parts guarantees extreme ruggedness and a limited need for maintenance
Current | 1.3A |
---|---|
Electrical connection | DIN A 43650 |

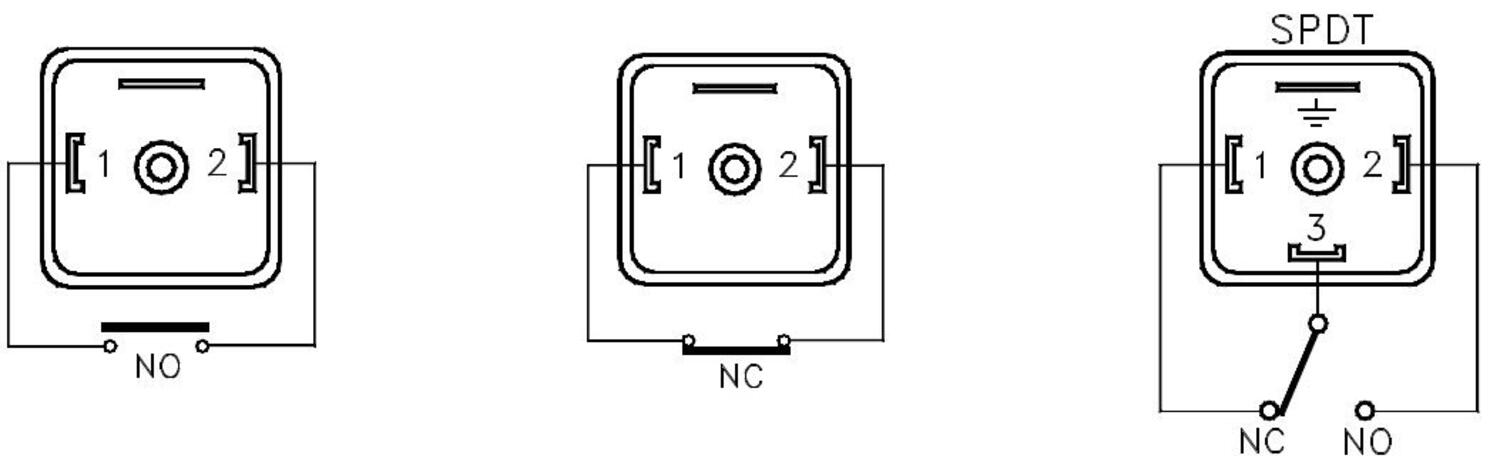

Function | N/O & N/C |
IP Class | IP65 |
Length | 500 |
Manufacturer Part No | R1.B77.4.0500.S.25GB.S1.L.1.I2 |
Material of connection | Nickel-plated brass |
Material of float | SPANSIL |
Material of seals | NBR |
---|---|
Max. pressure | 10 |
Mounting | Vertical |
Process connection | G1 |
Specific gravity | 0.4 |
Temperature range to | 105 |
Voltage | 250V |
ADJUSTABLE level control for the monitoring of liquids both in industrial and civil environment. Proposed in 2 standard versions of rod length, all intermediate lengths are obtained by the user simply shortening the rod of the float.
The principle of operation of these instruments is based on the drive of a reed switch, located in the head of the instrument, as a result of the hydrostatic thrust exerted by the liquid on the float. The absence of moving parts guarantees extreme ruggedness and a limited need for maintenance
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Length | Manufacturer Part No | Process connection | Price | |
---|---|---|---|---|---|---|
![]()
500mm length, G1", Brass/SS/ABS, NC, DIN, Max 10 bar
Art:
00.0002.4057
Copied
|
500
|
R1.B77.4.0500.S.25GB.S1.L.1.I2
|
G1
|
| ||
![]()
500mm length, Flange, Brass/SS/ABS, NC, DIN, Max 10 bar
Art:
00.0002.4472
Copied
|
1000
|
R1.B77.4.1000.S.25GB.S1.L.1.I2
|
Flange
|
| ||
![]()
1000mm length, G1", Brass/SS/ABS, NC, DIN, Max 10 bar
Art:
00.0002.4332
Copied
|
500
|
R1.B77.4.0500.S.FBPX.S1.L.1.I2
|
G1
|
| ||
![]()
1000mm length, Flange, Brass/SS/ABS, NC, DIN, Max 10 bar
Art:
00.0002.9060
Copied
|
1000
|
R1.B77.4.1000.S.FBPX.S1.L.1.I2
|
Flange
|
|
