TECNOPLASTIC

Tecnoplastic - Float switch - Olympic

The Olympic level switch from Tecnoplastic is a popular style of level switch when size is a consideration. This level regulator is very cost effective and can be used in many ways for automated control of liquid levels in various applications.



  • Water pumps
  • Plumbed system automation
  • Maximum depth of 20 metres
  • Single or double function
  • Up to 60°C
  • Compact size

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Approvals CE, TÜV
Cable length 0,52
Cable type H07RN-F
Contact Angle 45
Counterweight included No
Depth-Max 10
Function N/O & N/C
Insulation class I-II
IP Class IP68
Material of float Polypropylene
Operating temperature to 60
Rated Current 8
Specific gravity 0.6 kg/dm³
Supply Voltage 250

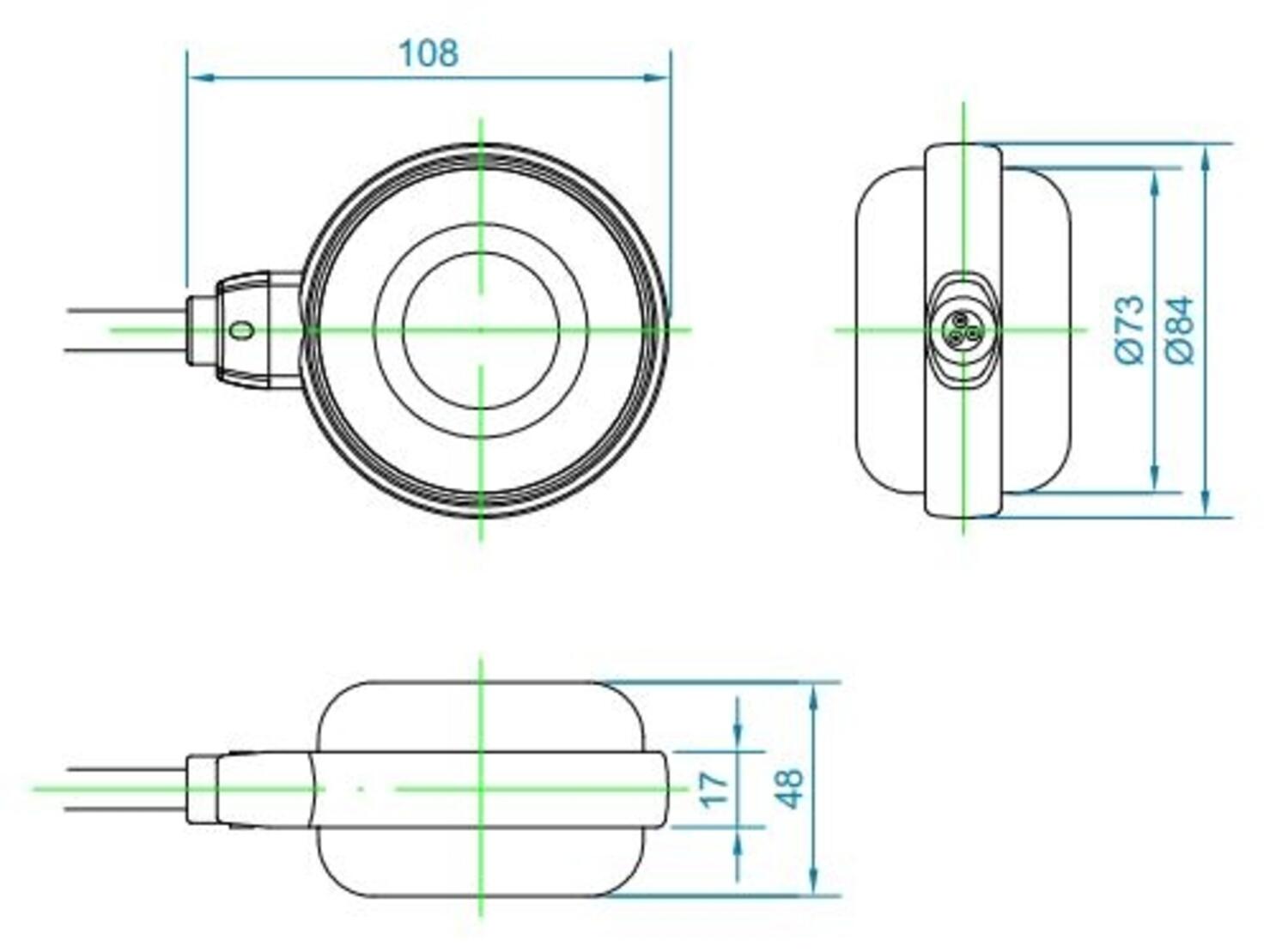

Measurements and connections

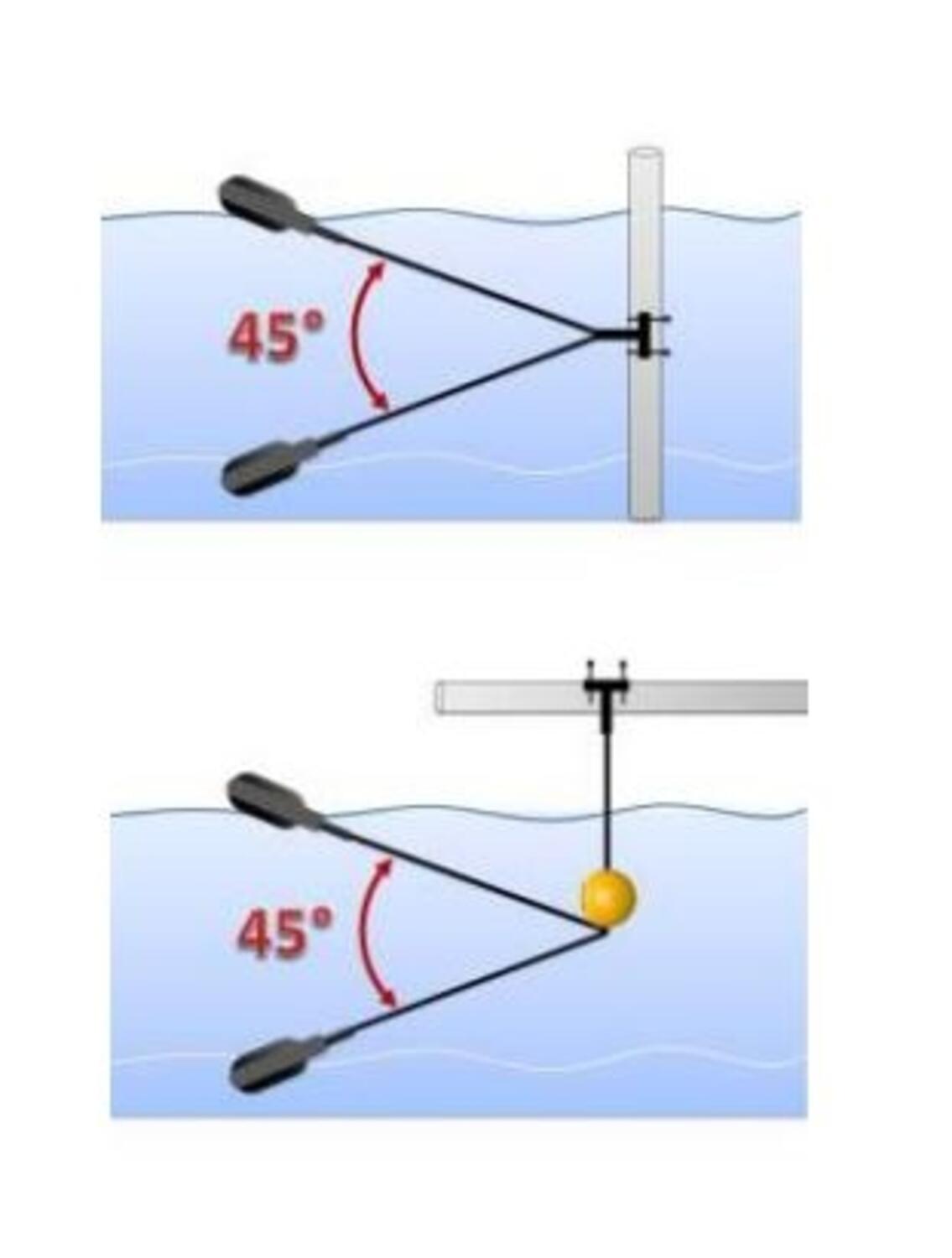

Technical illustrations

Product description

The Olympic level switch from Tecnoplastic is a popular style of level switch when size is a consideration. This level regulator is very cost effective and can be used in many ways for automated control of liquid levels in various applications.



  • Water pumps
  • Plumbed system automation

Accessories

Related products

My favourites Articles Cable length Cable type Counterweight included Function Price
Single function, H07 RNF, 0.52M cable
Art:
GOLH3G100NN01 Copied
0,52
H07RN-F
No
N/O & N/C
Single function, H07 RNF, 3M cable
Art:
GOLH3G103NN01 Copied
3
H07RN-F
No
N/O & N/C
Single function, H07 RNF, 5M cable
Art:
GOLH3G105NN01 Copied
5
H07RN-F
No
N/O & N/C
Single function, H07 RNF, 10M cable
Art:
GOLH3G110NN01 Copied
10
H07RN-F
No
N/O & N/C
Single function, H07 RNF, 15M cable
Art:
GOLH3G115NN01 Copied
15
H07RN-F
No
N/O & N/C
Single function, H07 RNF, 20M cable
Art:
GOLH3G120NN01 Copied
20
H07RN-F
No
N/O & N/C
Double function, H05 RNF, 0.52M cable
Art:
GOL53X100NN01 Copied
0,52
H05RN-F
No
Changeover (SPDT)
Double function, H05 RNF, 3M cable
Art:
GOL53X103NN01 Copied
3
H05RN-F
No
Changeover (SPDT)
Double function, H05 RNF, 5M cable
Art:
GOL53X105NN01 Copied
5
H05RN-F
No
Changeover (SPDT)
Double function, H05 RNF, 10M cable
Art:
GOL53X110NN01 Copied
10
H05RN-F
No
Changeover (SPDT)
Double function, H05 RNF, 15M cable
Art:
GOL53X115NN01 Copied
15
H05RN-F
No
Changeover (SPDT)
Double function, H05 RNF, 20M cable
Art:
GOL53X120NN01 Copied
20
H05RN-F
No
Changeover (SPDT)
Single function, H07 RNF, 3M cable, counterweight
Art:
GOLH3G103NNC1 Copied
3
H07RN-F
Yes
N/O & N/C
Single function, H07 RNF, 5M cable, counterweight
Art:
GOLH3G105NNC1 Copied
5
H07RN-F
Yes
N/O & N/C
Single function, H07 RNF, 10M cable, counterweight
Art:
GOLH3G110NNC1 Copied
10
H07RN-F
Yes
N/O & N/C
Single function, H07 RNF, 15M cable, counterweight
Art:
GOLH3G115NNC1 Copied
15
H07RN-F
Yes
N/O & N/C
Single function, H07 RNF, 20M cable, counterweight
Art:
GOLH3G120NNC1 Copied
20
H07RN-F
Yes
N/O & N/C
Double function, H05 RNF, 3M cable, counterweight
Art:
GOL53X103NNC1 Copied
3
H05RN-F
Yes
Changeover (SPDT)
Double function, H05 RNF, 5M cable, counterweight
Art:
GOL53X105NNC1 Copied
5
H05RN-F
Yes
Changeover (SPDT)
Double function, H05 RNF, 10M cable, counterweight
Art:
GOL53X110NNC1 Copied
10
H05RN-F
Yes
Changeover (SPDT)
Double function, H05 RNF, 15M cable, counterweight
Art:
GOL53X115NNC1 Copied
15
H05RN-F
Yes
Changeover (SPDT)
Double function, H05 RNF, 20M cable, counterweight
Art:
GOL53X120NNC1 Copied
20
H05RN-F
Yes
Changeover (SPDT)
