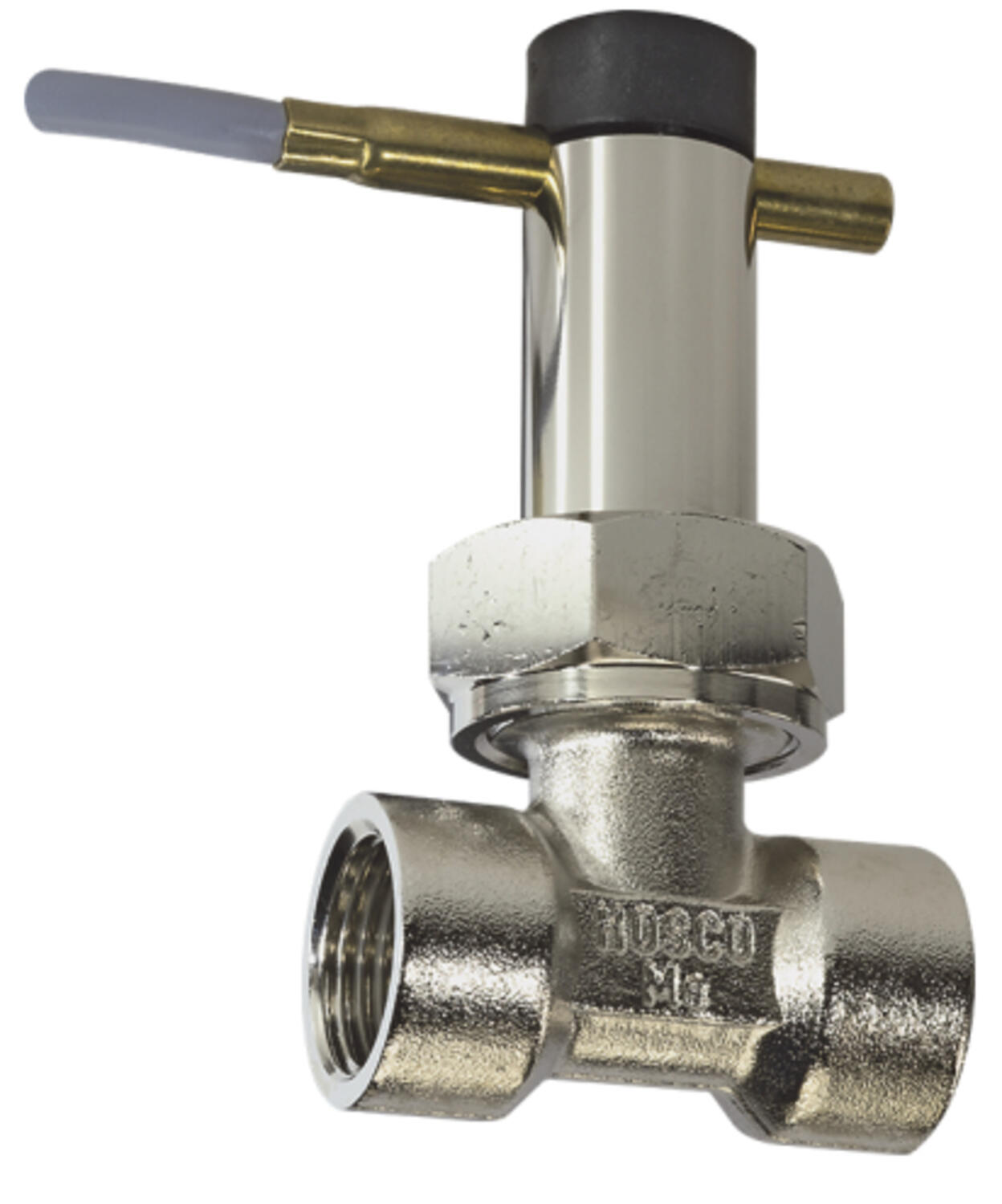

The Honsberg UR1 is a simple flow switch which can easily be adjusted and also changed from normally open to normally closed. The flow switch works via a spring-supported paddle which moves according to the flow and when the specific flow is reach a magnetic reed switch is activated.
• Plastic materials
• Weld/solder connection
• High volume OEM version
• Ex
• Switching ranges for oil or gas
• Special values
• High volume OEM version
• PVC (solder fitting)
Accuracy | ±15% fs |
---|---|
Adjustable Switching Point L / Min Of Water | 2,5..3,5 l/min |
Connection | G3/8" female |
Contact Rating Max | 50 |
Electrical Connection | 1.5m cable |
Flow Max l/min Double | 10 |
Function | Normally open or normally closed (SPST) |
IP Class | IP65 |
Material breaker body | Hard ferrite |
Material of body | Nickel-plated brass, Stainless steel 303 |
Material of connection | Nickel-plated brass |
Material of seals | NBR |
Materials Paddle | Stainless steel 301 |
---|---|
Materials Wetted Parts | Nickel-plated brass, Stainless steel, Hard ferrite, NBR |
Media | Water (oil, air and aggressive media on request) |
Pressure drop | Approx. 0.01 bar at max. flow |
Pressure Range Max | 25 |
Temperature range of media from | 20 |
Temperature range of media to | 110 |
Type of flow component | Flow Switches |
Weight | 0,35 |
Viscosity | 1 |
Voltage AC max | 230 |
The Honsberg UR1 is a simple flow switch which can easily be adjusted and also changed from normally open to normally closed. The flow switch works via a spring-supported paddle which moves according to the flow and when the specific flow is reach a magnetic reed switch is activated.
• Plastic materials
• Weld/solder connection
• High volume OEM version
• Ex
• Switching ranges for oil or gas
• Special values
• High volume OEM version
• PVC (solder fitting)
Ordering information
● Specify direction of flow, medium, and switching range, UR1 or switching value UR2.
● For UR2 specify normally closed (n.c.) or normally open (n.o.).
● For oils, state viscosity, temperature and designation (e.g. ISO VG 68) (enquire about range).
● For gases, state pressure (relative or absolute), temperature and medium (e.g. air) (enquire about range).

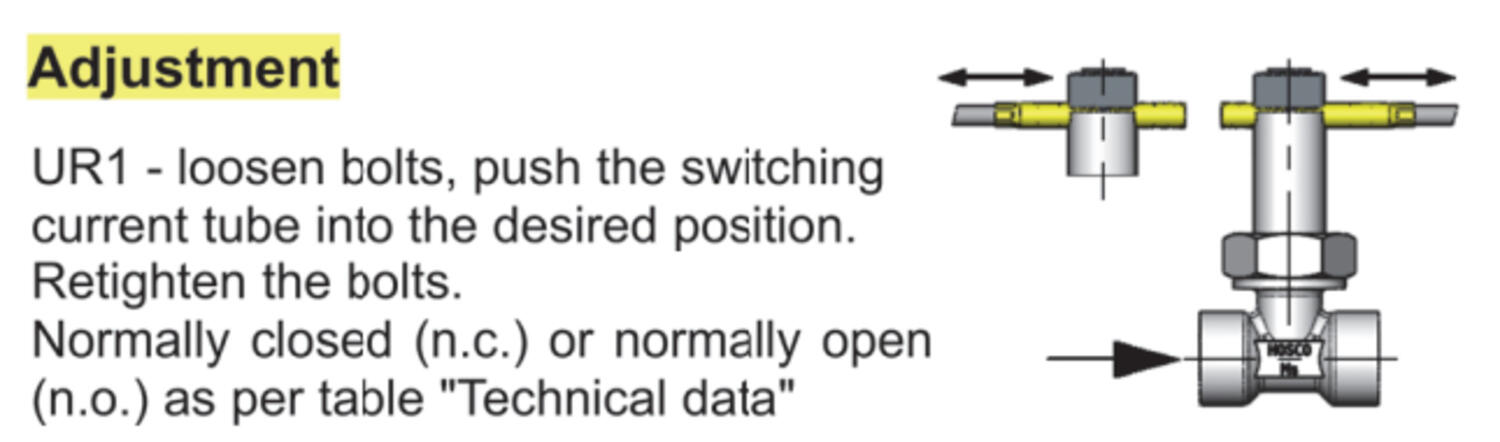

Installation
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Accuracy | Adjustable Switching Point L / Min Of Water | Connection | Flow Max l/min Double | Material breaker body | Material of body | Material of connection | Material of seals | Materials Paddle | Materials Wetted Parts | Pressure drop | Type of flow component | Weight | Viscosity | Voltage AC / DC Max | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Art:
UR1-010GM
Copied
|
±15% fs
|
2,5..3,5 l/min
|
G3/8" female
|
10
|
Hard ferrite
|
Nickel-plated brass, Stainless steel 303
|
Nickel-plated brass
|
NBR
|
Stainless steel 301
|
Nickel-plated brass, Stainless steel, Hard ferrite, NBR
|
Approx. 0.01 bar at max. flow
|
Flow Switches
|
0,35
|
1
|
|
| ||
![]()
Art:
UR1-010GK
Copied
|
±15% fs
|
2,5..3,5 l/min
|
G3/8" female
|
10
|
Hard ferrite, PTFE coating
|
Stainless steel 303
|
Stainless steel
|
FKM
|
Stainless steel 301
|
Stainless steel, Hard ferrite, PTFE coating, FKM
|
Approx. 0.01 bar at max. flow
|
|
0,4
|
1
|
|
| ||
![]()
Art:
UR1-015GM
Copied
|
±15% fs
|
4..4,5 l/min
|
G1/2" female
|
20
|
Hard ferrite
|
Nickel-plated brass, Stainless steel 303
|
Nickel-plated brass
|
NBR
|
Stainless steel 301
|
Nickel-plated brass, Stainless steel, Hard ferrite, NBR
|
Approx. 0.01 bar at max. flow
|
Flow Switches
|
0,35
|
1
|
|
| ||
![]()
4..4,5l/minH2O, G½F, SS
Art:
UR1-015GK
Copied
|
±15% fs
|
4..4,5 l/min
|
G1/2" female
|
20
|
|
|
Stainless steel
|
|
|
Stainless steel, Hard ferrite, PTFE coating, FKM
|
Approx. 0.01 bar at max. flow
|
|
0,4
|
|
1
|
| ||
![]()
Art:
UR1-020GM
Copied
|
±15% fs
|
5..6 l/min
|
G3/4" female
|
40
|
Hard ferrite
|
Nickel-plated brass, Stainless steel 303
|
Nickel-plated brass
|
NBR
|
Stainless steel 301
|
Nickel-plated brass, Stainless steel, Hard ferrite, NBR
|
Approx. 0.01 bar at max. flow
|
Flow Switches
|
0,35
|
1
|
|
| ||
![]()
Art:
UR1-020GK
Copied
|
±15% fs
|
5..6 l/min
|
G3/4" female
|
40
|
Hard ferrite, PTFE coating
|
Stainless steel 303
|
Stainless steel
|
FKM
|
Stainless steel 301
|
Stainless steel, Hard ferrite, PTFE coating, FKM
|
Approx. 0.01 bar at max. flow
|
|
0,35
|
1
|
|
| ||
![]()
Art:
UR1-025GM
Copied
|
±15% fs
|
9,5..11,5 l/min
|
G1" female
|
60
|
Hard ferrite
|
Nickel-plated brass, Stainless steel 303
|
Nickel-plated brass
|
NBR
|
Stainless steel 301
|
Nickel-plated brass, Stainless steel, Hard ferrite, NBR
|
Approx. 0.01 bar at max. flow
|
Flow Switches
|
0,4
|
1
|
|
| ||
![]()
Art:
UR1-025GK
Copied
|
±15% fs
|
9,5..11,5 l/min
|
G1" female
|
60
|
Hard ferrite, PTFE coating
|
Stainless steel 303
|
Stainless steel
|
FKM
|
Stainless steel 301
|
Stainless steel, Hard ferrite, PTFE coating, FKM
|
Approx. 0.01 bar at max. flow
|
|
0,45
|
1
|
|
| ||
![]()
Art:
UR1-032GM
Copied
|
±15% fs
|
13,5..17,5 l/min
|
G1¼" female
|
80
|
Hard ferrite
|
Nickel-plated brass, Stainless steel 303
|
Nickel-plated brass
|
NBR
|
Stainless steel 301
|
Nickel-plated brass, Stainless steel, Hard ferrite, NBR
|
Approx. 0.01 bar at max. flow
|
Flow Switches
|
0,45
|
1
|
|
| ||
![]()
13,5..17,5l/minH2O, G1¼F, SS
Art:
UR1-032GK
Copied
|
±15% fs
|
13,5..17,5 l/min
|
G1¼" female
|
80
|
|
|
Stainless steel
|
|
|
Stainless steel, Hard ferrite, PTFE coating, FKM
|
Approx. 0.01 bar at max. flow
|
|
0,5
|
|
1
|
| ||
![]()
Art:
UR1-040GM
Copied
|
±15% fs
|
30..38 l/min
|
G1½" female
|
100
|
Hard ferrite
|
Nickel-plated brass, Stainless steel 303
|
Nickel-plated brass
|
NBR
|
Stainless steel 301
|
Nickel-plated brass, Stainless steel, Hard ferrite, NBR
|
Approx. 0.01 bar at max. flow
|
Flow Switches
|
0,55
|
1
|
|
| ||
![]()
Art:
UR1-040GK
Copied
|
±15% fs
|
30..38 l/min
|
G1½" female
|
100
|
|
|
Stainless steel
|
|
|
Stainless steel, Hard ferrite, PTFE coating, FKM
|
Approx. 0.01 bar at max. flow
|
|
0,65
|
|
1
|
| ||
![]()
Art:
UR1-050GM
Copied
|
±15% fs
|
42..53 l/min
|
G2" female
|
150
|
Hard ferrite
|
Nickel-plated brass, Stainless steel 303
|
Nickel-plated brass
|
NBR
|
Stainless steel 301
|
Nickel-plated brass, Stainless steel, Hard ferrite, NBR
|
Approx. 0.01 bar at max. flow
|
Flow Switches
|
0,8
|
1
|
|
| ||
![]()
42..53l/minH2O, G2F, SS
Art:
UR1-050GK
Copied
|
|
42..53 l/min
|
G2" female
|
150
|
|
|
Stainless steel
|
|
|
Stainless steel, Hard ferrite, PTFE coating, FKM
|
|
|
0,95
|
|
1
|
|
