Mechanical flow switch, for fluid media, with magnetic triggering of a reed switch. Robust construction in brass or stainless steel.
Accuracy | ± 10% |
---|---|
Connection | 1/4 " |
Contact Rating Max | 20 |
Electrical Connection | Plug connector DIN 43650-C |
Flow Max l/min Double | 0,17 |
Flow Range Max | 0,13 |
Flow Range Min | 0,04 |

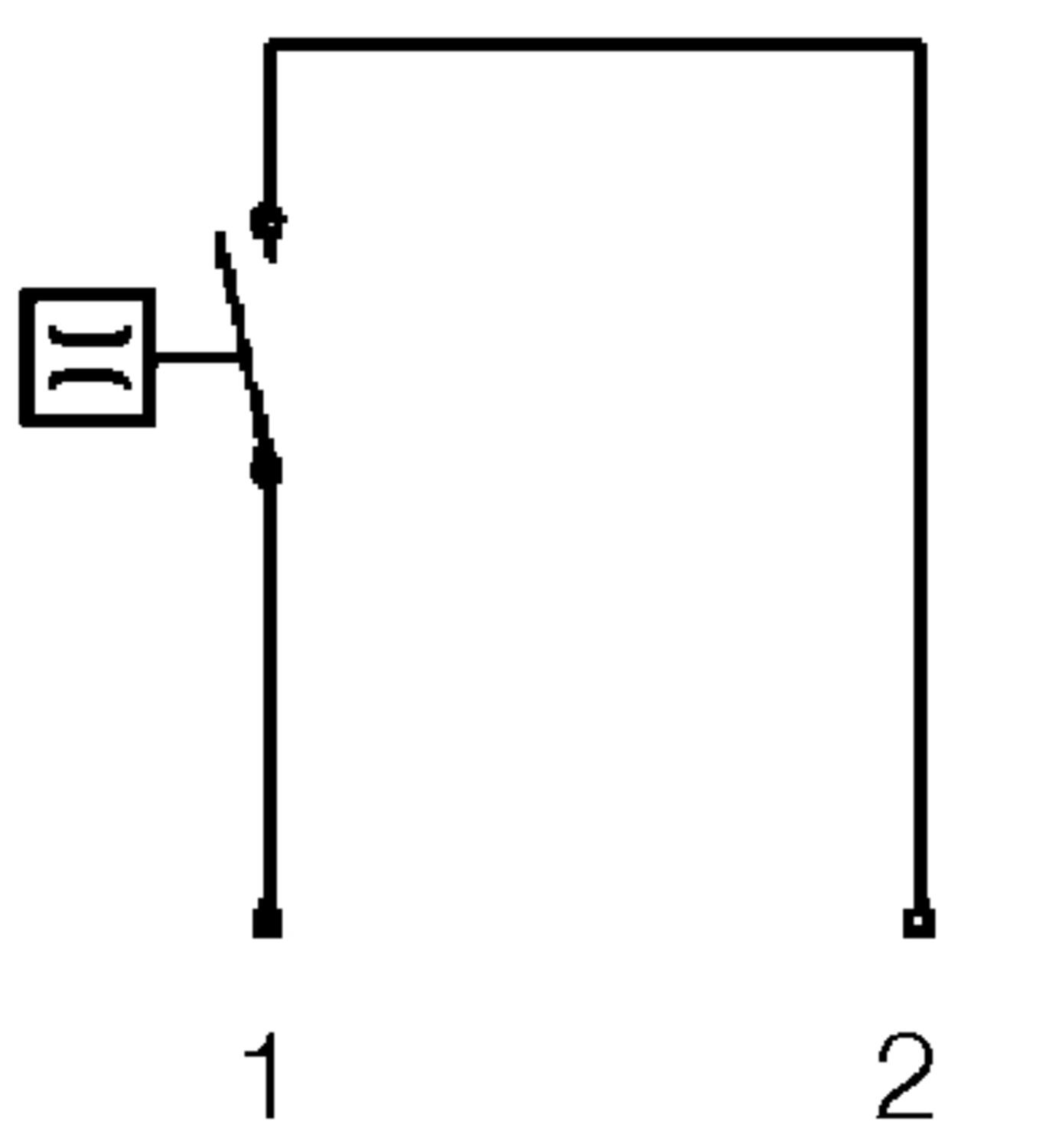

Function | Flask, reed contact, ending |
Hysteresis | min 1 ml / min, depending on breaking value |
IP Class | IP65 |
Material Bolt | Brass |
Material of body | Nickel-plated brass |
---|---|
Material of seals | NBR |
Materials Spring | Stainless steel 316Ti |
Pressure drop | 0.02-0.2 bar at maximum flow |
Pressure Range Max | 300 |
Temperature range of media to | 100 |
Type of flow component | Flow Switches |
Weight | 0,14 |
Viscosity | 1 |
Voltage AC max | 200 |
Mechanical flow switch, for fluid media, with magnetic triggering of a reed switch. Robust construction in brass or stainless steel.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Flow Max l/min Double | Flow Range Max | Flow Range Min | Material Bolt | Material of body | Material of seals | Price | |
---|---|---|---|---|---|---|---|---|---|
![]()
Art:
RVM-008GM013
Copied
|
0,17
|
0,13
|
0,04
|
Brass
|
Nickel-plated brass
|
NBR
|
| ||
![]()
Art:
RVM-008GM060
Copied
|
0,72
|
0,6
|
0,1
|
Brass
|
Nickel-plated brass
|
NBR
|
| ||
![]()
Art:
RVM-008GM300
Copied
|
3,6
|
3
|
0,5
|
Brass
|
Nickel-plated brass
|
NBR
|
| ||
![]()
Art:
RVM-008GK013
Copied
|
0,17
|
0,13
|
0,04
|
Stainless steel 316Ti
|
Stainless steel 316Ti
|
Viton
|
| ||
![]()
Art:
RVM-008GK060
Copied
|
0,72
|
0,6
|
0,1
|
Stainless steel 316Ti
|
Stainless steel 316Ti
|
Viton
|
| ||
![]()
Art:
RVM-008GK300
Copied
|
3,6
|
3
|
0,5
|
Stainless steel 316Ti
|
Stainless steel 316Ti
|
Viton
|
|
