Model HD2K is a flow switch for oil and other viscous media. It has a scale that shows where in the working range you have set the switching point. The switch can also deal with highly viscous media, which makes it highly suitable for hydraulic applications.
• Ex/ATEX version
• Version for higher pressure PN 500 bar
• Integrated flow meter
• Integrated temperature gauge
Accuracy | ± 5% of the final value |
---|---|
Connection | Internal thread ¼ " |
Contact Rating Max | 50 |
Electrical Connection | Plug connector DIN43650-A |
Flow Max l/min Double | 12 |
Flow Range Max | 8 |
Flow Range Min | 0,5 |

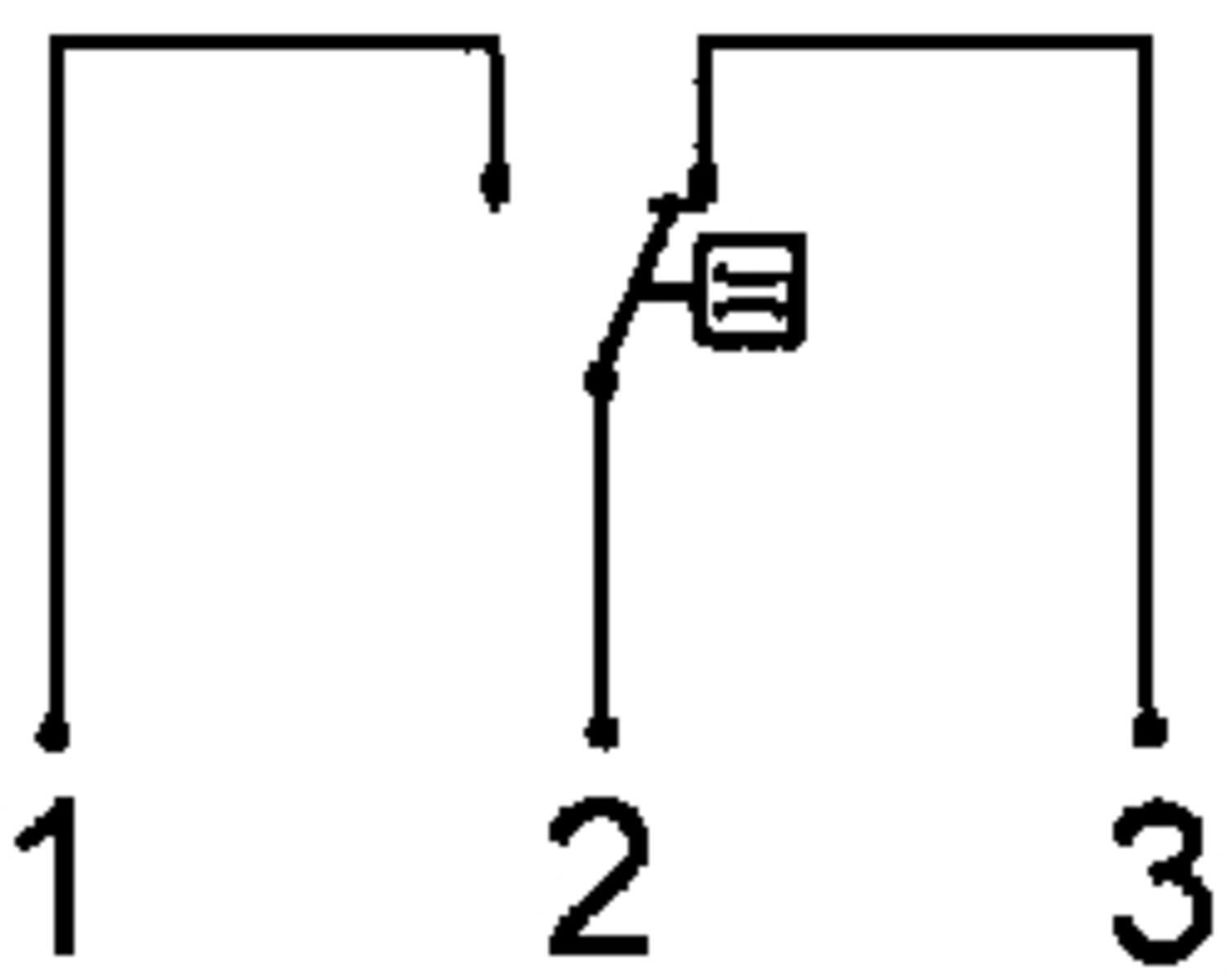

Function | Flask, reed contact, alternating |
Hysteresis | Depending on the breakpoint, however, at least 0.5 l / min |
IP Class | IP65 |
Material Bolt | Brass |
Material of body | Nickel-plated brass |
Material of seals | NBR |
---|---|
Materials Spring | Stainless steel 301 |
Pressure drop | 1.1-3.5 bar, depending on viscosity |
Pressure Range Max | 200 |
Temperature range of media to | 120 |
Type of flow component | Flow Switches |
Weight | 1,4 |
Viscosity Max | 330 |
Viscosity Min | 30 |
Voltage AC / DC Max | 175 |
Model HD2K is a flow switch for oil and other viscous media. It has a scale that shows where in the working range you have set the switching point. The switch can also deal with highly viscous media, which makes it highly suitable for hydraulic applications.
• Ex/ATEX version
• Version for higher pressure PN 500 bar
• Integrated flow meter
• Integrated temperature gauge
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Connection | Flow Max l/min Double | Flow Range Max | Flow Range Min | Material Bolt | Material of body | Material of seals | Pressure drop | Type of flow component | Weight | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Art:
HD2K-008GM008
Copied
|
Internal thread ¼ "
|
12
|
8
|
0,5
|
Brass
|
Nickel-plated brass
|
NBR
|
1.1-3.5 bar, depending on viscosity
|
Flow Switches
|
1,4
|
| ||
![]()
Art:
HD2K-010GM015
Copied
|
Internal thread 3/8 "
|
22
|
15
|
1,5
|
Brass
|
Nickel-plated brass
|
NBR
|
2.2-3.5 bar, depending on viscosity
|
Flow Switches
|
1,4
|
| ||
![]()
Art:
HD2K-015GM008
Copied
|
Internal thread ½ "
|
12
|
8
|
0,5
|
Brass
|
Nickel-plated brass
|
NBR
|
1.1-3.5 bar, depending on viscosity
|
|
1,4
|
| ||
![]()
Art:
HD2K-015GM015
Copied
|
Internal thread ½ "
|
22
|
15
|
1,5
|
Brass
|
Nickel-plated brass
|
NBR
|
2.2-3.5 bar, depending on viscosity
|
|
1,4
|
| ||
![]()
Art:
HD2K-015GM025
Copied
|
Internal thread ½ "
|
35
|
25
|
2,5
|
Brass
|
Nickel-plated brass
|
NBR
|
1.9-2.9 bar, depending on viscosity
|
Flow Switches
|
1,3
|
| ||
![]()
Art:
HD2K-020GM040
Copied
|
Internal thread ¾ "
|
60
|
40
|
6
|
Brass
|
Nickel-plated brass
|
NBR
|
1.9-2.6 bar, depending on viscosity
|
Flow Switches
|
1,2
|
| ||
![]()
Art:
HD2K-025GM060
Copied
|
Internal thread 1 "
|
80
|
60
|
12
|
Brass
|
Nickel-plated brass
|
NBR
|
2.1-2.6 bar, depending on viscosity
|
Flow Switches
|
1,1
|
| ||
![]()
Art:
HD2K-008GK008
Copied
|
Internal thread ¼ "
|
12
|
8
|
0,5
|
Stainless steel 316L
|
Stainless steel 316Ti
|
FKM
|
1.1-3.5 bar, depending on viscosity
|
Flow Switches
|
1,3
|
| ||
![]()
Art:
HD2K-010GK015
Copied
|
Internal thread 3/8 "
|
22
|
15
|
1,5
|
Stainless steel 316L
|
Stainless steel 316Ti
|
FKM
|
2.2-3.5 bar, depending on viscosity
|
Flow Switches
|
1,3
|
| ||
![]()
Art:
HD2K-015GK025
Copied
|
Internal thread ½ "
|
35
|
25
|
2,5
|
Stainless steel 316L
|
Stainless steel 316Ti
|
FKM
|
1.9-2.9 bar, depending on viscosity
|
Flow Switches
|
1,3
|
| ||
![]()
Art:
HD2K-020GK040
Copied
|
Internal thread ¾ "
|
60
|
40
|
6
|
Stainless steel 316L
|
Stainless steel 316Ti
|
FKM
|
1.9-2.6 bar, depending on viscosity
|
Flow Switches
|
1,2
|
| ||
![]()
Art:
HD2K-025GK060
Copied
|
Internal thread 1 "
|
80
|
60
|
12
|
Stainless steel 316L
|
Stainless steel 316Ti
|
FKM
|
2.1-2.6 bar, depending on viscosity
|
Flow Switches
|
1,1
|
|
