Model HD1K is a flow switch for liquids and gases. It has a built-in scale that shows where in the working range switching point is set. The switch can also deal with media with high viscosity, which makes it highly suitable for hydraulic applications.
• Viscosity compensating version HD1KV
• Version for higher pressure 400 or 500 bar
• Integrated flow meter
• Integrated temperature gauge
• Connector M12x1, 4 pole
• Ex/ATEX version
Accuracy | ± 5% |
---|---|

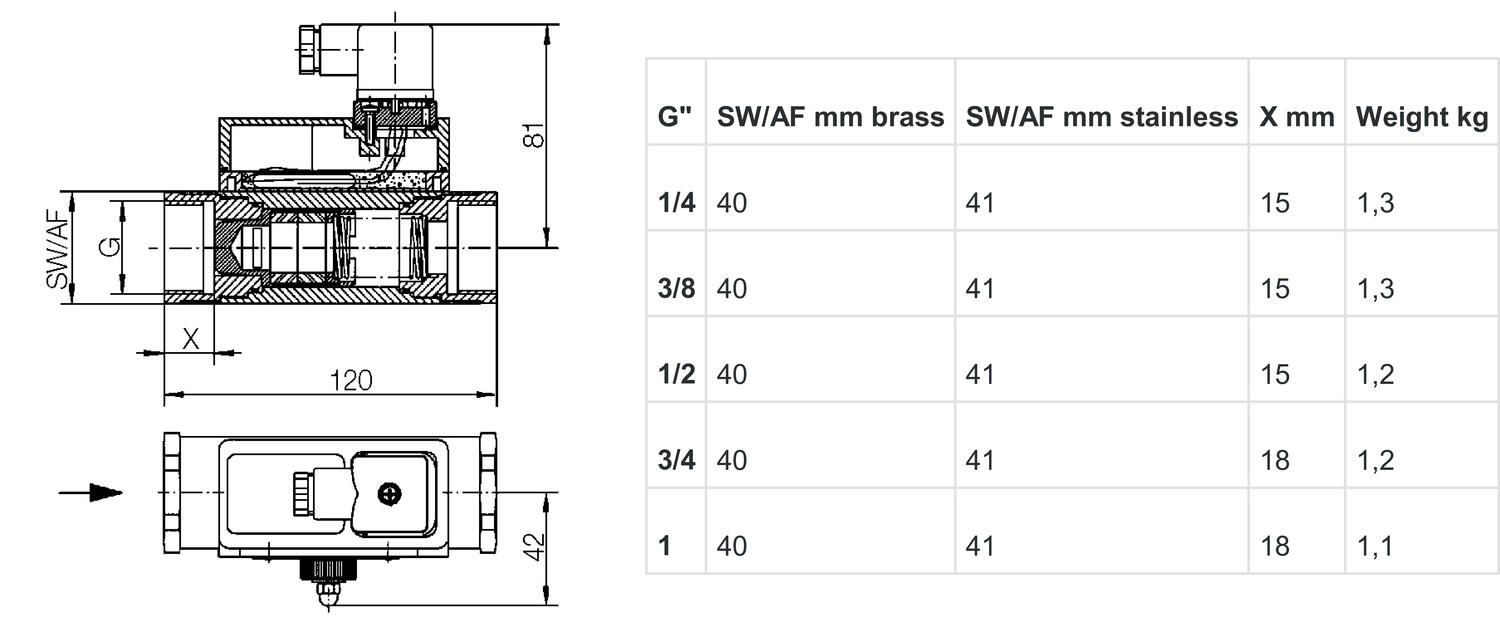

Connection | Internal thread ¼ " |
Contact Rating Max | 50 |
Electrical Connection | Plug connector DIN 43650-A |
Flow Max l/min Double | 10 |
Flow Range Max | 5 |
Flow Range Min | 0,5 |
Function | Flask, reed contact, alternating |
Hysteresis | Depending on the breaking value, however, at least 0.7 l / min |
IP Class | IP65 |
Material Bolt | Nickel-plated brass |
Material of body | Nickel-plated brass |
---|---|
Material of seals | NBR |
Materials Spring | Stainless steel 301 |
Pressure drop | Approximately 0.5 bar at maximum flow |
Pressure Range Max | 200 |
Temperature range of media to | 120 |
Type of flow component | Flow Switches |
Weight | 1,4 |
Viscosity Max | 150 |
Voltage AC / DC Max | 175 |
Model HD1K is a flow switch for liquids and gases. It has a built-in scale that shows where in the working range switching point is set. The switch can also deal with media with high viscosity, which makes it highly suitable for hydraulic applications.
• Viscosity compensating version HD1KV
• Version for higher pressure 400 or 500 bar
• Integrated flow meter
• Integrated temperature gauge
• Connector M12x1, 4 pole
• Ex/ATEX version
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Connection | Flow Max l/min Double | Flow Range Max | Flow Range Min | Material Bolt | Material of body | Material of seals | Weight | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Art:
HD1K-008GM005
Copied
|
Internal thread ¼ "
|
10
|
5
|
0,5
|
Nickel-plated brass
|
Nickel-plated brass
|
NBR
|
1,4
|
| ||
![]()
Art:
HD1K-010GM010
Copied
|
Internal thread 3/8 "
|
20
|
10
|
1
|
Nickel-plated brass
|
Nickel-plated brass
|
NBR
|
1,4
|
| ||
![]()
Flow switch 1/2", 3-30 l/min
Art:
HD1K-015GM030
Copied
|
Internal thread ½ "
|
40
|
30
|
3
|
Nickel-plated brass
|
Nickel-plated brass
|
NBR
|
1,3
|
| ||
![]()
Art:
HD1K-020GM040
Copied
|
Internal thread ¾ "
|
60
|
40
|
4
|
Nickel-plated brass
|
Nickel-plated brass
|
NBR
|
1,3
|
| ||
![]()
Art:
HD1K-025GM060
Copied
|
Internal thread 1 "
|
80
|
60
|
6
|
Nickel-plated brass
|
Nickel-plated brass
|
NBR
|
1,2
|
| ||
![]()
Art:
HD1K-008GK005
Copied
|
Internal thread ¼ "
|
10
|
5
|
0,5
|
Stainless steel 316L
|
Stainless steel 316Ti
|
Viton
|
1,4
|
| ||
![]()
Art:
HD1K-010GK010
Copied
|
Internal thread 3/8 "
|
20
|
10
|
1
|
Stainless steel 316L
|
Stainless steel 316Ti
|
Viton
|
1,3
|
| ||
![]()
Art:
HD1K-015GK030
Copied
|
Internal thread ½ "
|
40
|
30
|
3
|
Stainless steel 316L
|
Stainless steel 316Ti
|
Viton
|
1,3
|
| ||
![]()
Art:
HD1K-020GK040
Copied
|
Internal thread ¾ "
|
60
|
40
|
4
|
Stainless steel 316L
|
Stainless steel 316Ti
|
Viton
|
1,2
|
| ||
![]()
Art:
HD1K-025GK060
Copied
|
Internal thread 1 "
|
80
|
60
|
6
|
Stainless steel 316L
|
Stainless steel 316Ti
|
Viton
|
1,1
|
|
