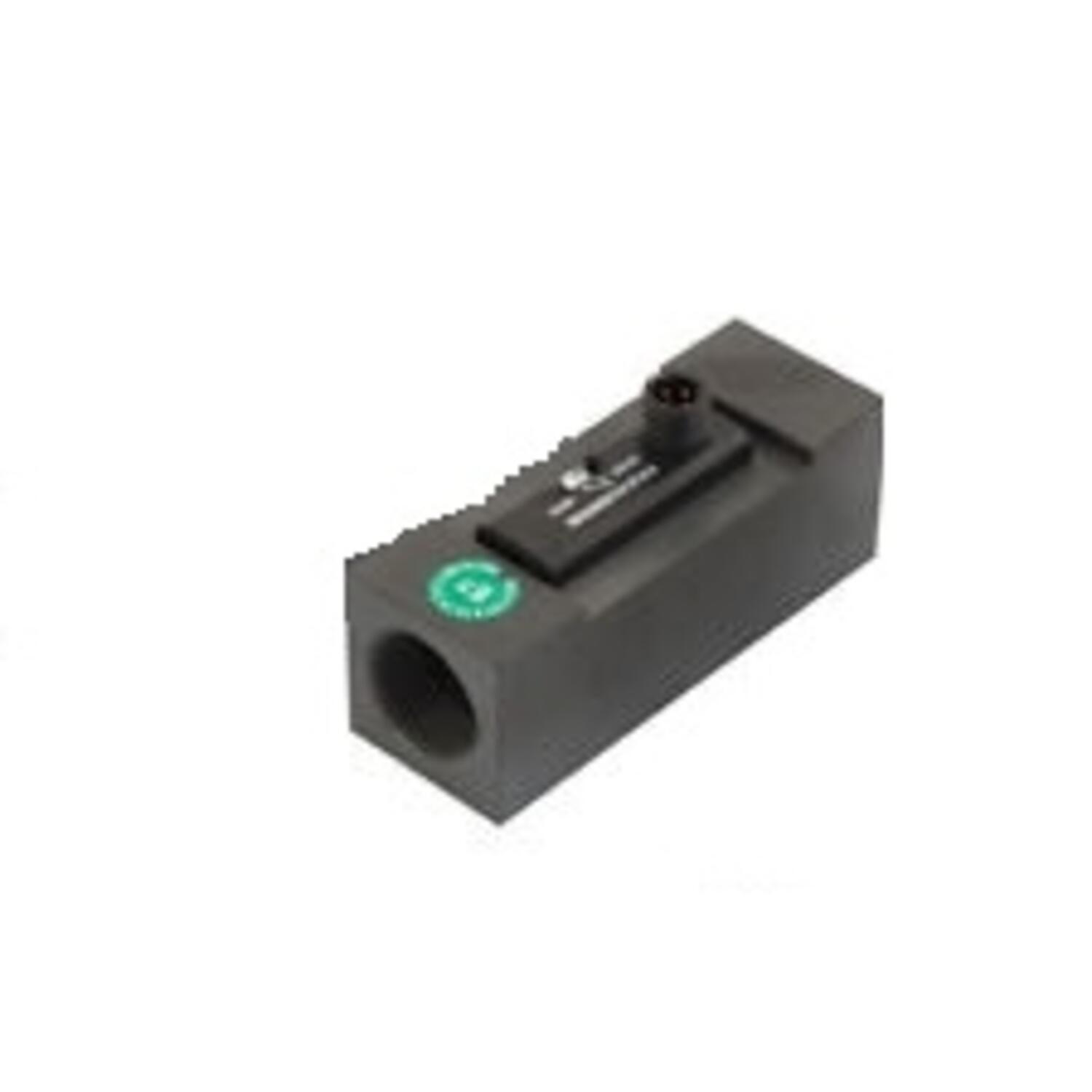

Mechanical flow switch, for fluid media, with spring-supported piston and magnetic triggering of a reed switch. Robust construction in brass and POM
Connection | Internal thread, G ½ " |
---|---|
Contact Rating Max | 0,5 |

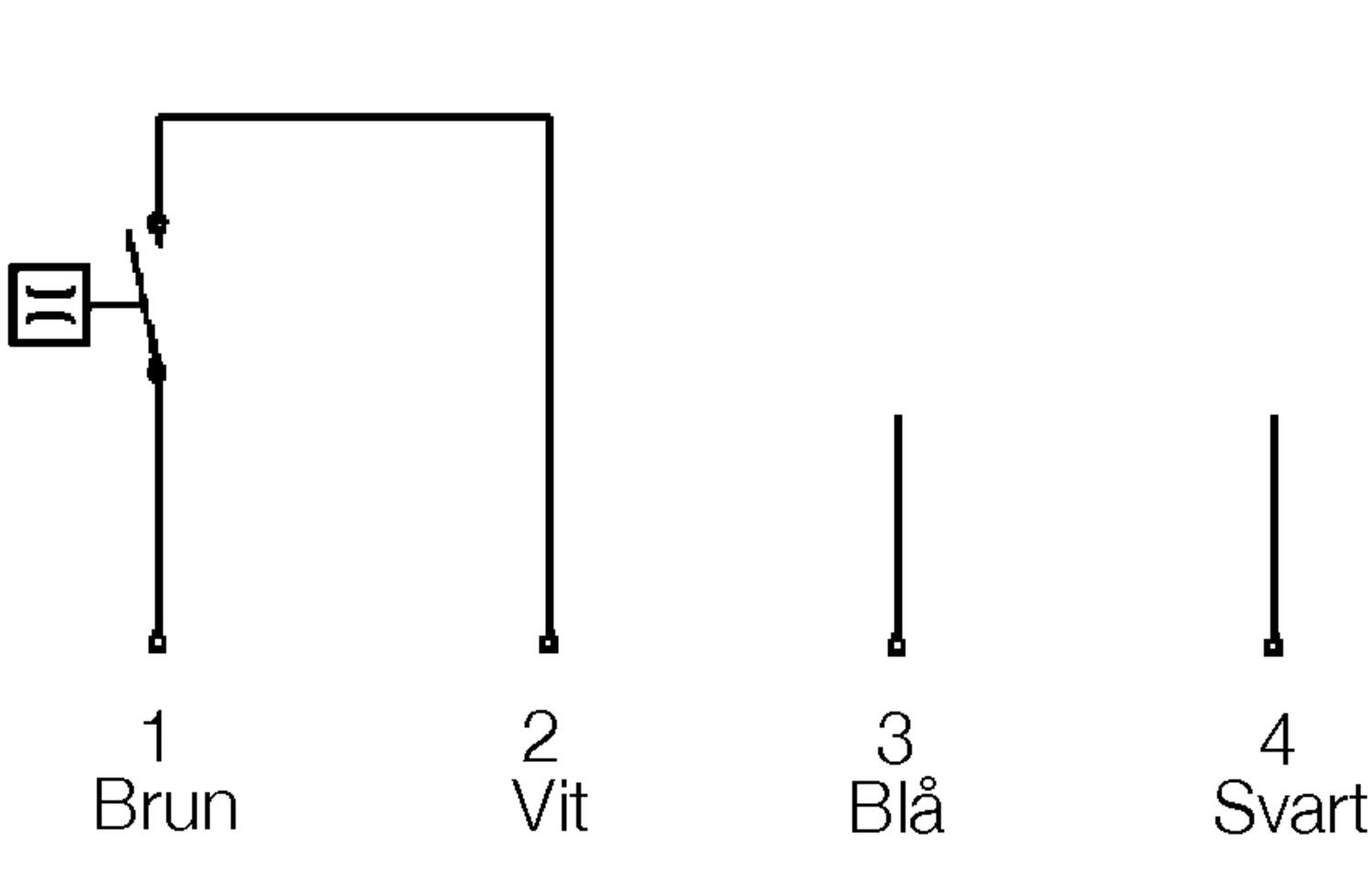

Electrical Connection | M12x1, 4-pole |
Flow Max l/min Double | 20 |
Flow Range Max | 6 |
Flow Range Min | 1 |
Function | Flask, reed contact, ending |
IP Class | IP67 |
Material of body | POM |
Materials Spring | Stainless steel 301 |
---|---|
Pressure drop | 0.8 bar at maximum flow |
Pressure Range Max | 10 |
Temperature range of media to | 90 |
Type of flow component | Flow Switches |
Weight | 0,05 |
Voltage AC max | 230 |
Mechanical flow switch, for fluid media, with spring-supported piston and magnetic triggering of a reed switch. Robust construction in brass and POM
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
My favourites | Articles | Connection | Flow Max l/min Double | Flow Range Max | Material of body | Material of seals | Pressure drop | Pressure Range Max | Weight | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Art:
FW1-015GP006
Copied
|
Internal thread, G ½ "
|
20
|
6
|
POM
|
|
0.8 bar at maximum flow
|
10
|
0,05
|
| ||
![]()
Art:
FW1-020GP011
Copied
|
Internal thread, G ¾
|
30
|
11
|
POM
|
|
0.2 bar at maximum flow
|
10
|
0,15
|
| ||
![]()
Art:
FW1-025GP011
Copied
|
Internal thread, G 1
|
30
|
11
|
POM
|
|
0.2 bar at maximum flow
|
10
|
0,2
|
| ||
![]()
Art:
FW1-008GM006
Copied
|
Internal thread, G ¼ "
|
8
|
6
|
Nickel-plated brass
|
Viton
|
0.2 bar at maximum flow
|
100
|
0,35
|
| ||
![]()
Art:
FW1-010GM006
Copied
|
Internal thread, G 3/8 "
|
10
|
6
|
Nickel-plated brass
|
Viton
|
0.3 bar at maximum flow
|
100
|
0,35
|
| ||
![]()
Art:
FW1-015GM006
Copied
|
Internal thread, G ½ "
|
20
|
6
|
Nickel-plated brass
|
Viton
|
0.8 bar at maximum flow
|
100
|
0,3
|
| ||
![]()
Art:
FW1-020GM011
Copied
|
Internal thread, G ¾
|
30
|
11
|
Nickel-plated brass
|
Viton
|
0.2 bar at maximum flow
|
100
|
0,75
|
| ||
![]()
Art:
FW1-025GM011
Copied
|
Internal thread, G 1
|
30
|
11
|
Nickel-plated brass
|
Viton
|
0.2 bar at maximum flow
|
100
|
0,75
|
|
