Honsberg - FF Series Flow Switch
Piston
The Honsberg FF series flow switch is a simple unit which indicates when a specific flow rate has been acheieved. The basic operation of the switch is when the volume flow raises a piston (fitted with a magnet) out from a valve seat which is against a spring force and when the specificed flow rate is achieved the piston actuates an hermetically separated reed switch. The FF is designed for horizontal inwards flow; switching head not recommended underneath; other installation positions are possible; the installation position affects the switching point and range.
*The switch point must always be specified/factory-set item
- Adjusted switching value
- Highly reproducible
- Insensitive to dirt
- Adjustment for oil or gas
- Special values
- Switching Range 0,4..90 l/min H₂O
- Water (oils on request)
- G¼ up to G1½
- Bronze, brass, stainless steel, ferrite & NBR
- Pressue range from 16 bar up to 200 bar
Selected variant
Selected variant
Specifications
| Accuracy | ± 3% of reading value, but at least ± 0.3 l / min |
|---|---|
| Connection | Internal thread, G ¼ " |
| Contact Rating Max | 50 |
| Electrical Connection | 1.5 m fused cable |
| Flow Max l/min Double | 10 |
| Flow Range Max | 9 |
| Flow Range Min | 0,4 |
| Function | Flask, reed contact |
| IP Class | IP65 |
| Material Bolt | Stainless steel 303 |
| Material of body | Nickel-plated brass |
| Material of connection | Bronze |
|---|---|
| Material of seals | NBR |
| Materials Spring | Stainless steel 301 |
| Pressure drop | Approx. 0.4 bar at maximum flow |
| Pressure Range Max | 200 |
| Temperature range of media to | 110 |
| Type of flow component | Flow Switches |
| Weight | 0,6 |
| Viscosity Max | 1 |
| Voltage AC max | 230 |
Product description
The Honsberg FF series flow switch is a simple unit which indicates when a specific flow rate has been acheieved. The basic operation of the switch is when the volume flow raises a piston (fitted with a magnet) out from a valve seat which is against a spring force and when the specificed flow rate is achieved the piston actuates an hermetically separated reed switch. The FF is designed for horizontal inwards flow; switching head not recommended underneath; other installation positions are possible; the installation position affects the switching point and range.
*The switch point must always be specified/factory-set item
- Adjusted switching value
- Highly reproducible
- Insensitive to dirt
- Adjustment for oil or gas
- Special values
Ordering information
*The switch point must always be specified/factory-set item
- Specify direction of flow, medium, and switching point.
- For oils, state viscosity, temperature and designation (e.g. ISO VG 68) (enquire about range).
- For gases, state pressure (relative or absolute), temperature and medium (e.g. air) (enquire about range).
Installation
- Include straight calming section of 5 x DN in inlet and outlet.
- If the media are dirty, install a filter (use magnetic filter for ferritic components).

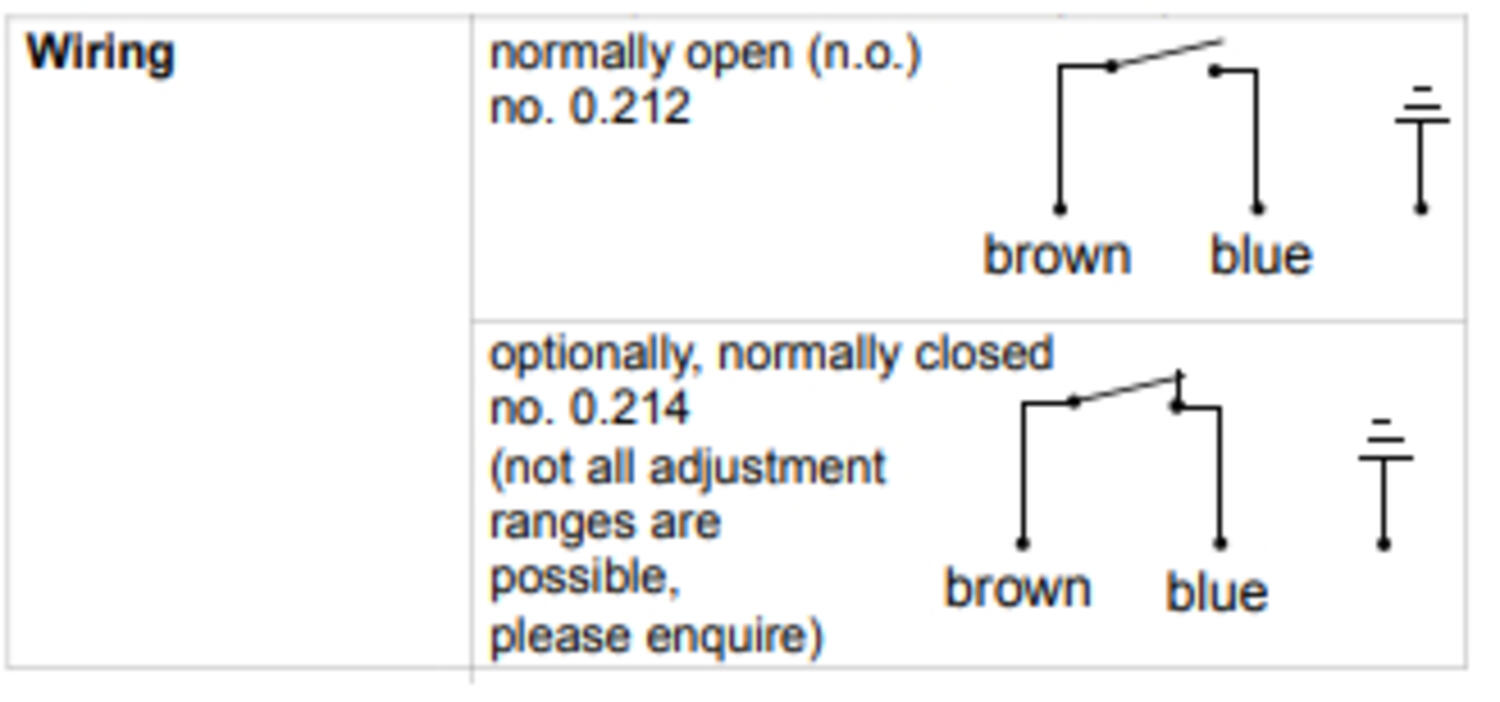

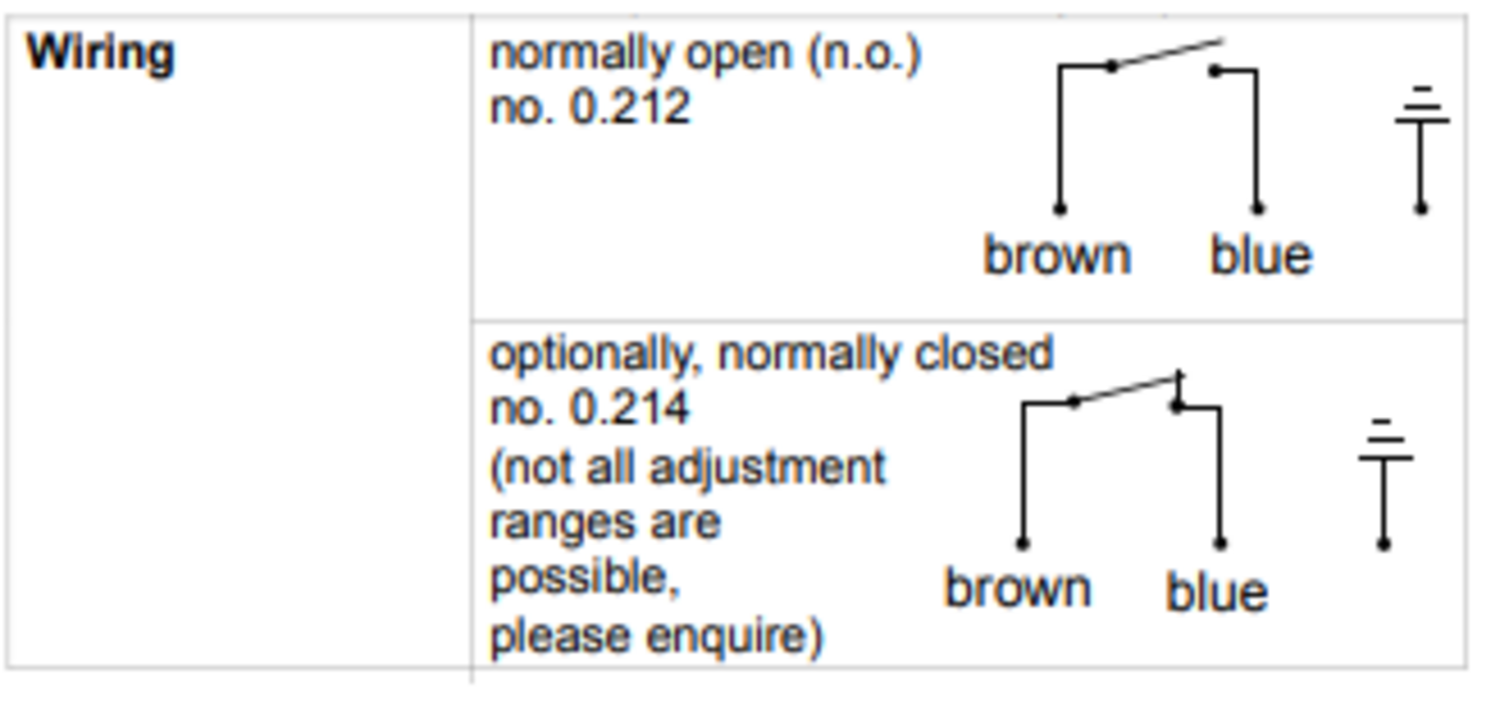

- It must be ensured that the values given for voltage, current, and power are not exceeded.
- When switched on, a load must be connected in series. The electrical details apply to ohmic loads. Capacitive, inductive and lamp loads must be operated using a protective circuit.

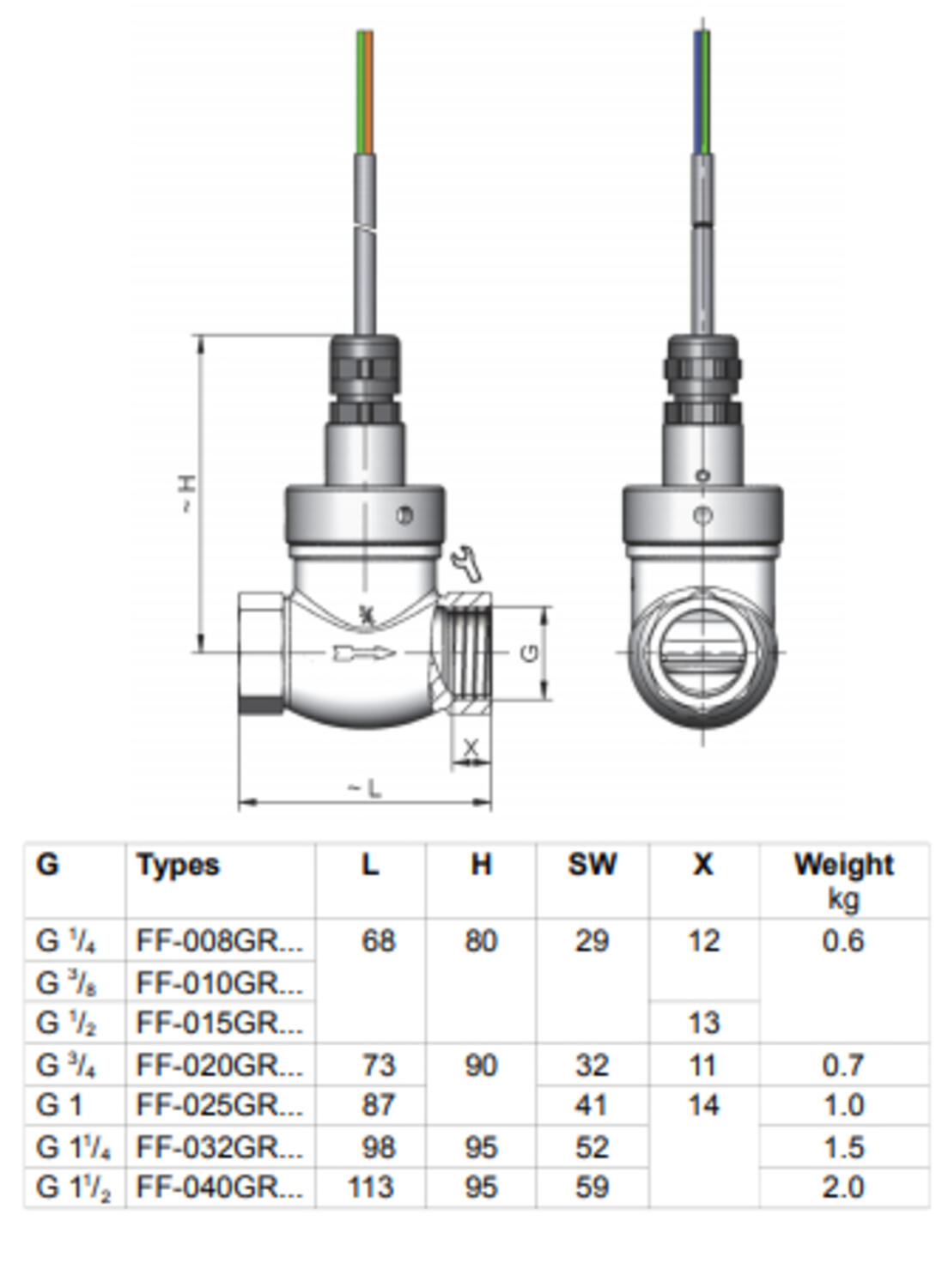

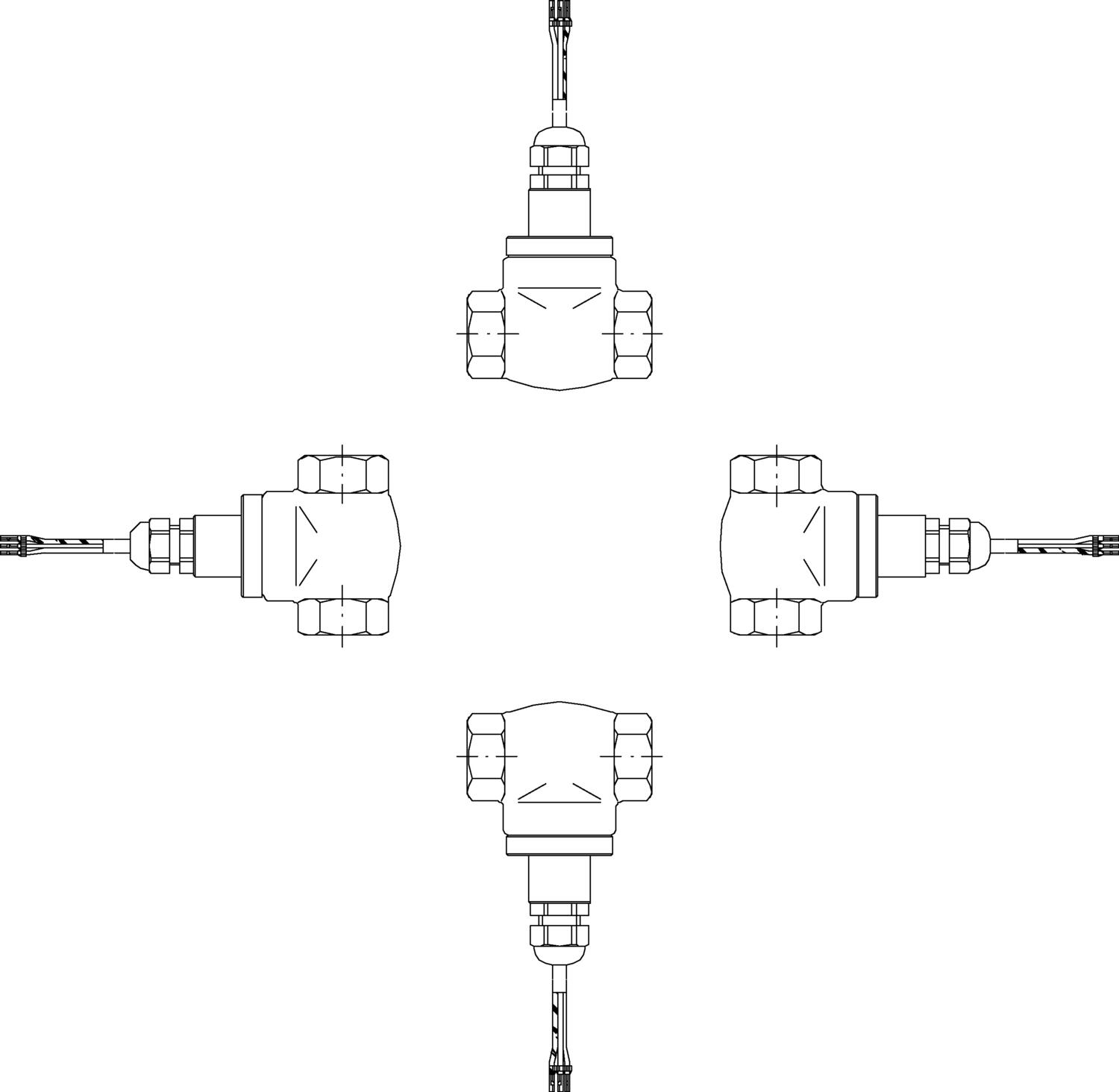

- Standard: horizontal inwards flow; switching head not recommended underneath; other installation positions are possible; the installation position affects the switching point and range.
