Honsberg - Flex-F Series Flow Meter
Calorimetric
Model Flex is a calorimetric flow sensor with analogue output signal and one switching point. It is equipped with LED indication and is simple to set via the magnetic tab.
- No moving parts
- Wetted parts in stainless steel
- Simple installation of set point
Selected variant
Selected variant
Specifications
| Accuracy | +/- 10% of the final value, but at least +/- 2 cm / s |
|---|---|
| Connection | External thread, G 1/4 " |

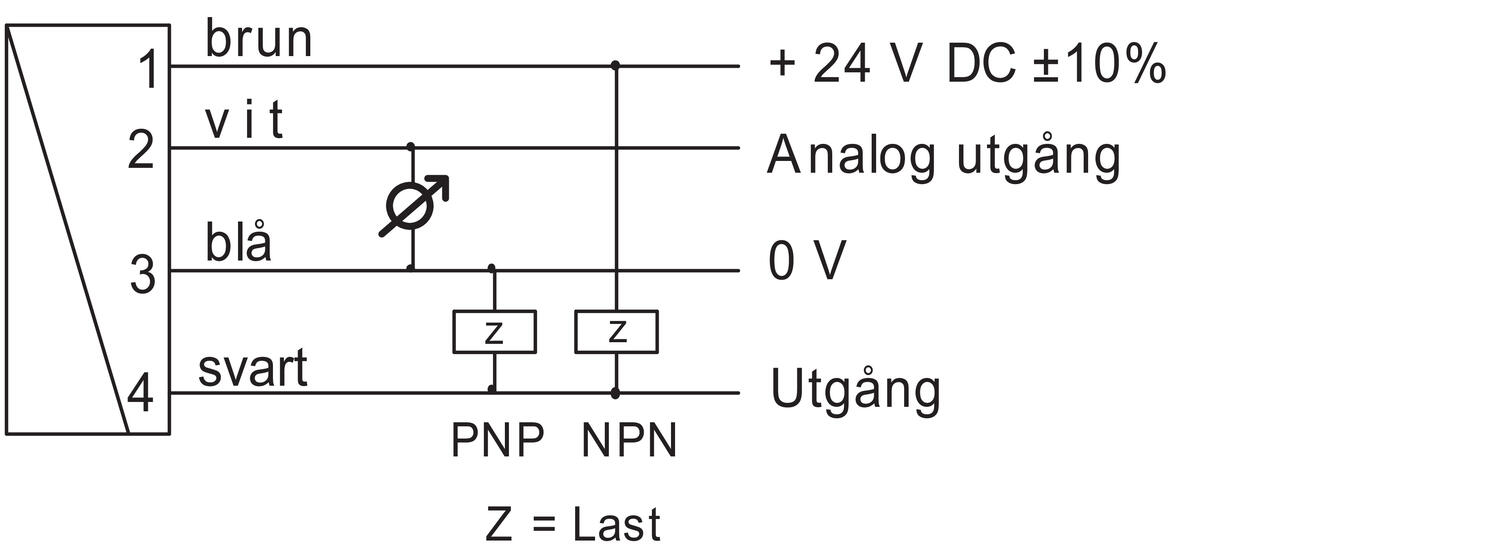

| Electrical Connection | Plug M12x1, 4-pole |
| Flow Range Max | 150 |
| Flow Range Min | 1 |
| Function | calorimetric |
| Hysteresis | 0.04 |
| IP Class | IP67 |
| Load Max | 100 |
| Material of body | Stainless steel 1.4305 |
| Materials Clips | PA6.6 |
|---|---|
| Materials Wetted Parts | Stainless steel 316Ti |
| Output | 4-20 mA |
| Power Consumption | 100 |
| Pressure Range Max | 100 |
| Repeatability | 1 |
| Temperature range of media to | 70 |
| Voltage DC max | 24 |
Downloads
Product description
Model Flex is a calorimetric flow sensor with analogue output signal and one switching point. It is equipped with LED indication and is simple to set via the magnetic tab.
