Honsberg - WO1 SERIES FLOW INDICATOR

Sight Glass

  • G ¼ - 151l/min - G1½ - 220l/min
  • Water , Oils
  • DN-8-G ¼ - DN40-G1½
  • Brass / Stainless Steel
  • 16 Bar max

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Connection G1/4 FEMALE
Flow Range Max 15
Flow Range Min 0
Material of connection Stainless steel
Material of glass tube Borosilicate glass
Material of seals FKM
Materials Wipers FKM
Media WATER, OILS
Pressure Range Max 16
Temperature range of media from -20
Temperature range of media to 100
Weight 1,5

Downloads

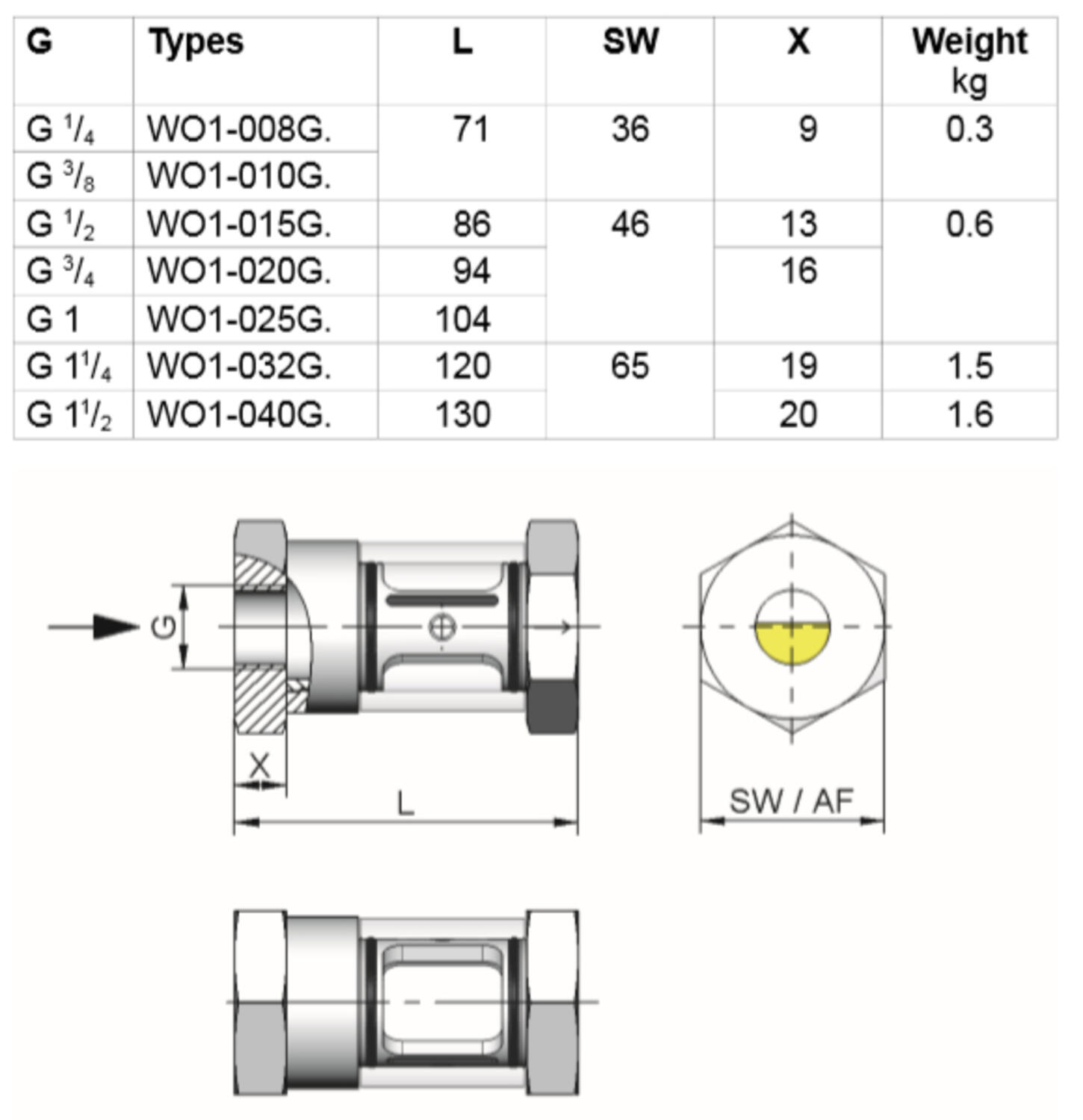

Measurements and connections

Accessories

My favourites Articles Connection Flow Range Max Material of connection Material of seals Materials Wipers Weight Price
honsberg wo1.png
15l/min,G1/4, S/S
Art:
WO1-008GK Copied
G1/4 FEMALE
15
Stainless steel
FKM
FKM
1,5
honsberg wo1.png
15l/min,G1/4, Brass
Art:
WO1-008GM Copied
G1/4 FEMALE
15
Brass
NBR
NBR
1,5
honsberg wo1.png
20l/min, G3/8, S/S
Art:
WO1-010GK Copied
G3/8 FEMALE
20
Stainless steel
FKM
FKM
0,3
honsberg wo1.png
20l/min, G3/8, Brass
Art:
WO1-010GM Copied
G3/8 FEMALE
20
Brass
NBR
NBR
0,3
honsberg wo1.png
Art:
WO1-015GK Copied
G1/2 FEMALE
30
Stainless steel
FKM
FKM
0,6
honsberg wo1.png
30l/min, G1/2, Brass
Art:
WO1-015GM Copied
G1/2 FEMALE
30
Brass
NBR
NBR
0,6
honsberg wo1.png
60l/min, G3/4, S/S
Art:
WO1-020GK Copied
G3/4 FEMALE
60
Stainless steel
FKM
FKM
0,6
honsberg wo1.png
60l/min, G3/4, Brass
Art:
WO1-020GM Copied
G3/4 FEMALE
60
Brass
NBR
NBR
0,6
honsberg wo1.png
Art:
WO1-025GK Copied
G1 FEMALE
90
Stainless steel
FKM
FKM
0,6
honsberg wo1.png
Art:
WO1-025GM Copied
G1 FEMALE
90
Brass
NBR
NBR
0,6
honsberg wo1.png
150l/min, G1 1/4, S/S
Art:
WO1-032GK Copied
G1 1/4 FEMALE
150
Stainless steel
FKM
FKM
1,5
honsberg wo1.png
150l/min, G1 1/4, Brass
Art:
WO1-032GM Copied
G1 1/4 FEMALE
150
Brass
NBR
NBR
1,5
honsberg wo1.png
220l/min, G1 1/2, S/S
Art:
WO1-040GK Copied
G1 1/2 FEMALE
220
Stainless steel
FKM
FKM
1,6
honsberg wo1.png
Art:
WO1-040GM Copied
G1 1/2 FEMALE
220
Brass
NBR
NBR
1,6
