Honsberg - UK & UKV Series Flow Indicator

Flow display with float

Model UK is a variable area type flow meter. It is available in two different versions, with or without needle valve. It has been developed to measure liquids and gases in various forms.

Special versions

• Special scales
• Connections in stainless steel
• Connections upwards and downwards (PVC)

  • For liquids and air up to 6 bar
  • Flow from 0.04 to 100 Nl/min. air (0.2 to 220 l/h water)
  • With or without needle valve

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Accuracy ± 5% of full setpoint
Connection Internal thread, NPT 1/8 "
Flow Range Max 0,5
Flow Range Min 0,04
Function Flow indicator, float body
Material of body Acrylic
Material of connection Brass
Material of seals NBR
Materials Float Glass
Pressure drop Approx. 0.1 bar at maximum flow
Pressure Range Max 6
Temperature range of media to 65
Type of flow component Flowmeter
Weight 0,13

Downloads

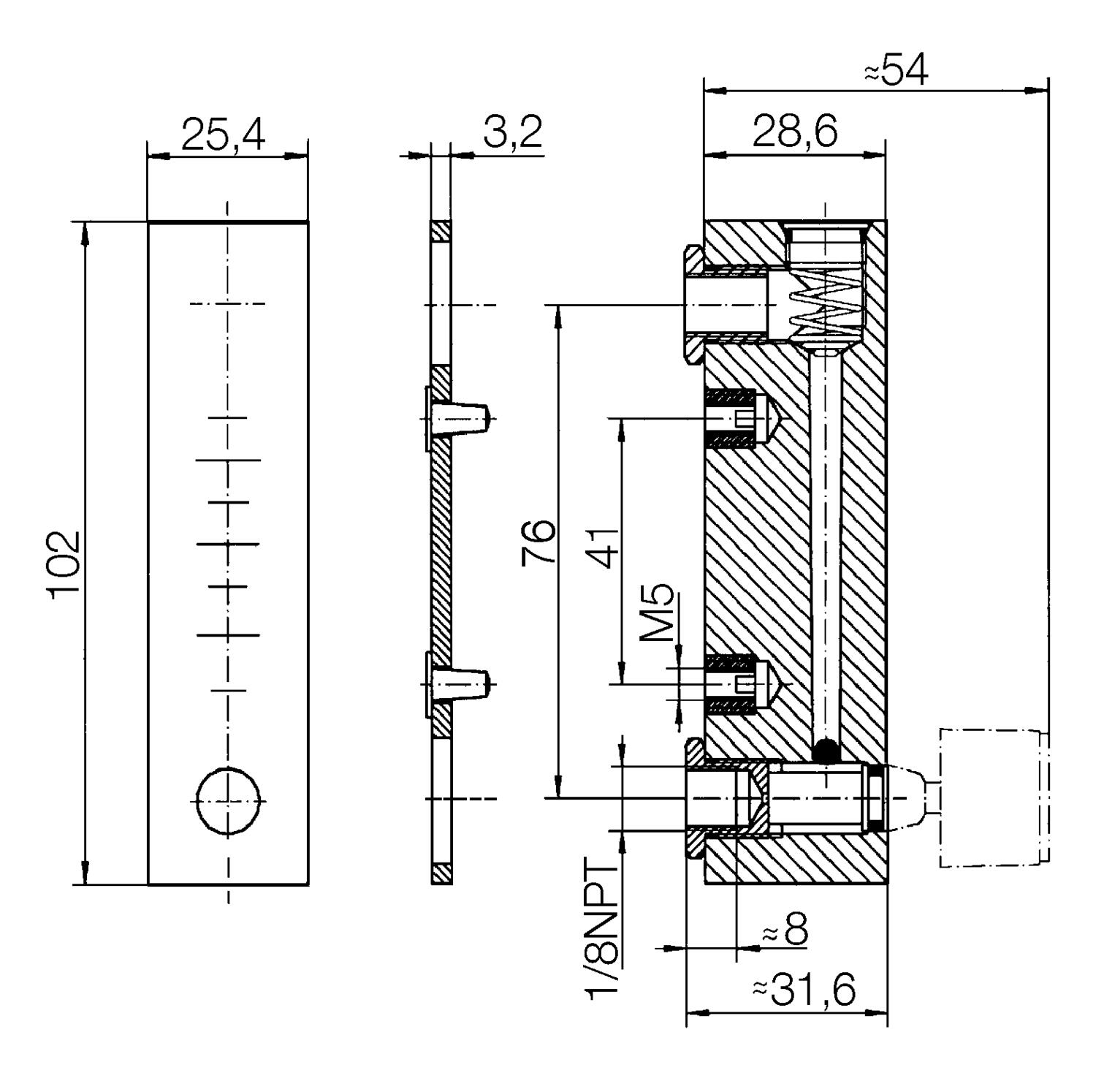

Measurements and connections

Product description

Model UK is a variable area type flow meter. It is available in two different versions, with or without needle valve. It has been developed to measure liquids and gases in various forms.

Special versions

• Special scales
• Connections in stainless steel
• Connections upwards and downwards (PVC)

Accessories

My favourites Articles Accuracy Flow Max l/min Double Flow Range Max Flow Range Max Flow Range Min Flow Range Min Function Weight Price
138534_812.tif
Flow meter 1/8", 0,04-0,5 Nl/min,air
Art:
UK-020GML0000 Copied
± 5% of full setpoint
0,5
0,04
Flow indicator, float body
0,13
138534_812.tif
Flow meter 1/8" w. valve 0,04-0,5Nl/mi
Art:
UKV-020GML0000 Copied
± 5% of full setpoint
0,5
0,04
Flow indicator, float body
0,13
138534_812.tif
Flow meter 1/8", 0,1-1 Nl/min,air
Art:
UK-020GML0001 Copied
± 5% of full setpoint
1
0,1
Flow indicator, float body
0,13
138534_812.tif
Flow meter 1/8" w. valve, 0,1-1 Nl/min
Art:
UKV-020GML0001 Copied
± 5% of full setpoint
1
0,1
Flow indicator, swivel body, with needle valve
0,13
138534_812.tif
Flow meter 1/8", 0,2-3,0 l/h, water
Art:
UK-020GMW0003 Copied
± 5% of full setpoint
0,1
0,05
0,003
Flow indicator, float body
0,13
138534_812.tif
Flow meter 1/8" w. valve, 0,2-3,0 l/h
Art:
UKV-020GMW0003 Copied
± 5% of full setpoint
0,1
0,05
0,003
Flow indicator, swivel body, with needle valve
0,13
138534_812.tif
Flow meter 1/8", 0,5-6,0 l/h, water
Art:
UK-020GMW0006 Copied
± 5% of full setpoint
0,1
0,1
0,008
Flow indicator, float body
0,13
138534_812.tif
Flow meter 1/8" w. valve, 0,5-6,0 l/h
Art:
UKV-020GMW0006 Copied
± 5% of full setpoint
0,1
0,1
0,008
Flow indicator, swivel body, with needle valve
0,13
138534_812.tif
Flow meter 1/8", 1,0-10 Nl/min
Art:
UK-040GML0010 Copied
± 3% of full setpoint
10
1
Flow indicator, float body
0,24
138534_812.tif
Flow meter 1/8" w. valve, 1,0-10 Nl/mi
Art:
UKV-040GML0010 Copied
± 3% of full setpoint
10
1
Flow indicator, swivel body, with needle valve
0,24
138534_812.tif
Flow meter 1/8", 4,0-50 Nl/min
Art:
UK-040GML0050 Copied
± 3% of full setpoint
50
4
Flow indicator, float body
0,24
138534_812.tif
Flow meter 1/8" w. valve 4,0-50 Nl/min
Art:
UKV-040GML0050 Copied
± 3% of full setpoint
50
4
Flow indicator, swivel body, with needle valve
0,24
138534_812.tif
Flow meter 1/8" w. valve, 10-100 Nl/mi
Art:
UKV-040GML0100 Copied
± 3% of full setpoint
100
10
Flow indicator, swivel body, with needle valve
0,24
138534_812.tif
Flow meter 1/8", 4,0-40 l/h
Art:
UK-040GMW0040 Copied
± 3% of full setpoint
6
0,66
0,066
Flow indicator, float body
0,24
138534_812.tif
Flow meter 1/8" w. valve, 4,0-40 l/h
Art:
UKV-040GMW0040 Copied
± 3% of full setpoint
6
0,66
0,066
Flow indicator, swivel body, with needle valve
0,24
138534_812.tif
Flow meter 1/8", 8,0-80 l/h
Art:
UK-040GMW0080 Copied
± 3% of full setpoint
6
1,33
0,13
Flow indicator, float body
0,24
138534_812.tif
Flow meter 1/8" w. valve, 8,0-80 l/h
Art:
UKV-040GMW0080 Copied
± 3% of full setpoint
6
1,33
0,13
Flow indicator, swivel body, with needle valve
0,24
138534_812.tif
Flow meter 1/8", 20-220 l/h
Art:
UK-040GMW0220 Copied
± 3% of full setpoint
6
3,66
0,33
Flow indicator, float body
0,24
138534_812.tif
Flow meter 1/8" w. valve, 20-220 l/h
Art:
UKV-040GMW0220 Copied
± 3% of full setpoint
6
3,66
0,33
Flow indicator, swivel body, with needle valve
0,24
