Molex - mPm M8/M12-DIN A / DIN B Industrial moulded cable connectors

DIN Valve Connectors with moulded cable, IP65 rated. IP67 version available on request.

  • Fully overmoulded for better protection
  • Quick and simple installation with M8 and M12
  • With or without LED and transient protection
  • EN175301-803 (DIN43650)-M8 / M12

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Cable length 0,6
Circuit No circuit
Color Cable Black
Connection male M12
Connector DINA 43650
Cross-Section 0,5
Current max 3
Head 1 DIN
IP Class IP65
LED indicator No
Material Cable PUR/PVC
Temperature Range Flexible Use Of -15
Temperature Range For Flexible Use 90
Temperature Range The Use Of -40
Voltage AC / DC Max 250

Downloads

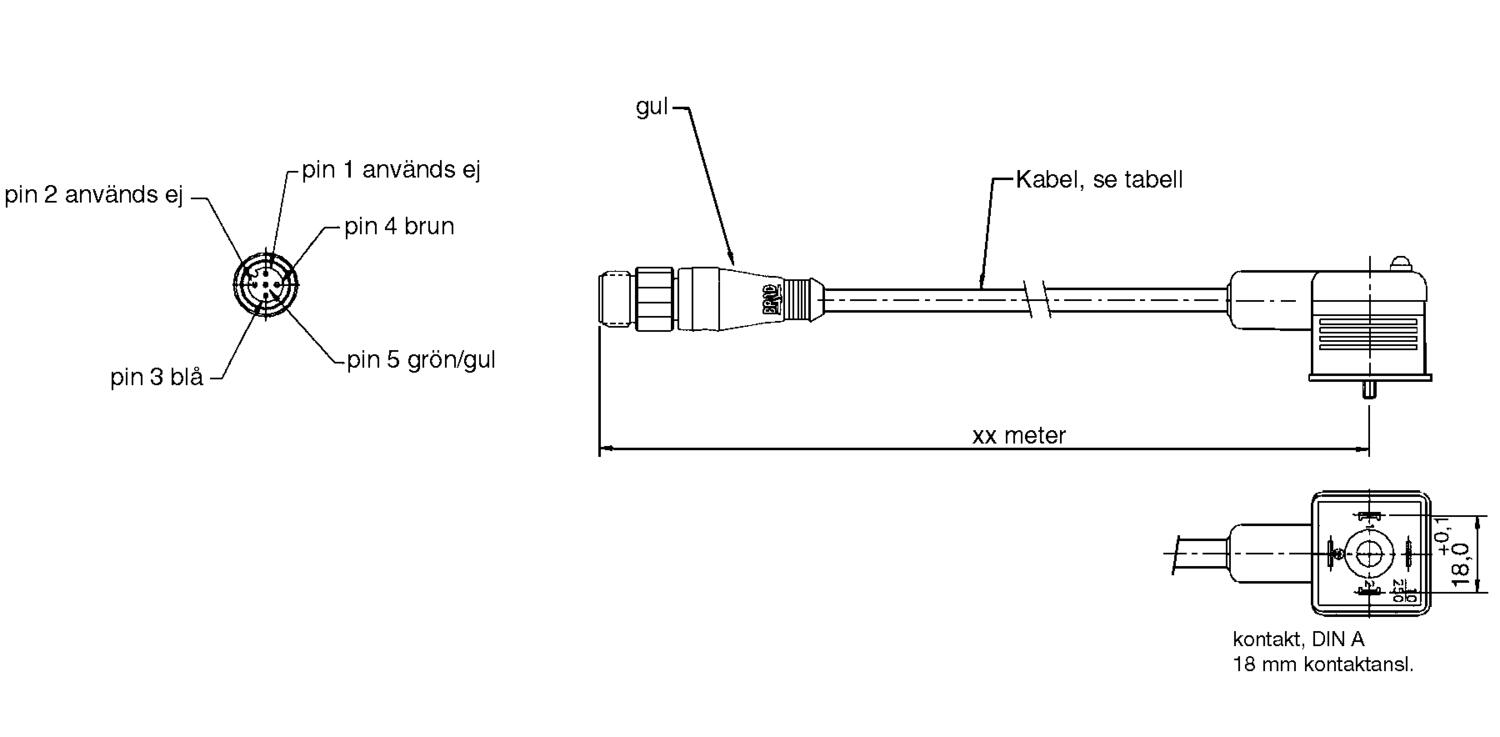

Measurements and connections

Product description

DIN Valve Connectors with moulded cable, IP65 rated. IP67 version available on request.

Accessories

My favourites Articles Cable length Circuit Colour LED Connection male Connector Head 1 Head 2 Isolation Internal Isolation Outer LED indicator Material Cable Rated Voltage Voltage AC / DC Max Price
137417_555.tif
DINA-M12 0,6m PUR-cable 0-250 V
Art:
E85000P12M006 Copied
0,6
No circuit
M12
DINA 43650
DIN
No
PUR/PVC
250
137417_555.tif
DINA-M12 1m PUR-cable 0-250 V
Art:
E85000P12M010 Copied
1
No circuit
M12
DINA 43650
DIN
No
PUR/PVC
250
137417_555.tif
DINA-M12 0,6m PUR-cable C4 24V AC/DC
Art:
E850B0P12M006 Copied
0,6
C4: LED & varistor
Yellow
M12
DINA 43650
DIN
Yes
PUR/PVC
24

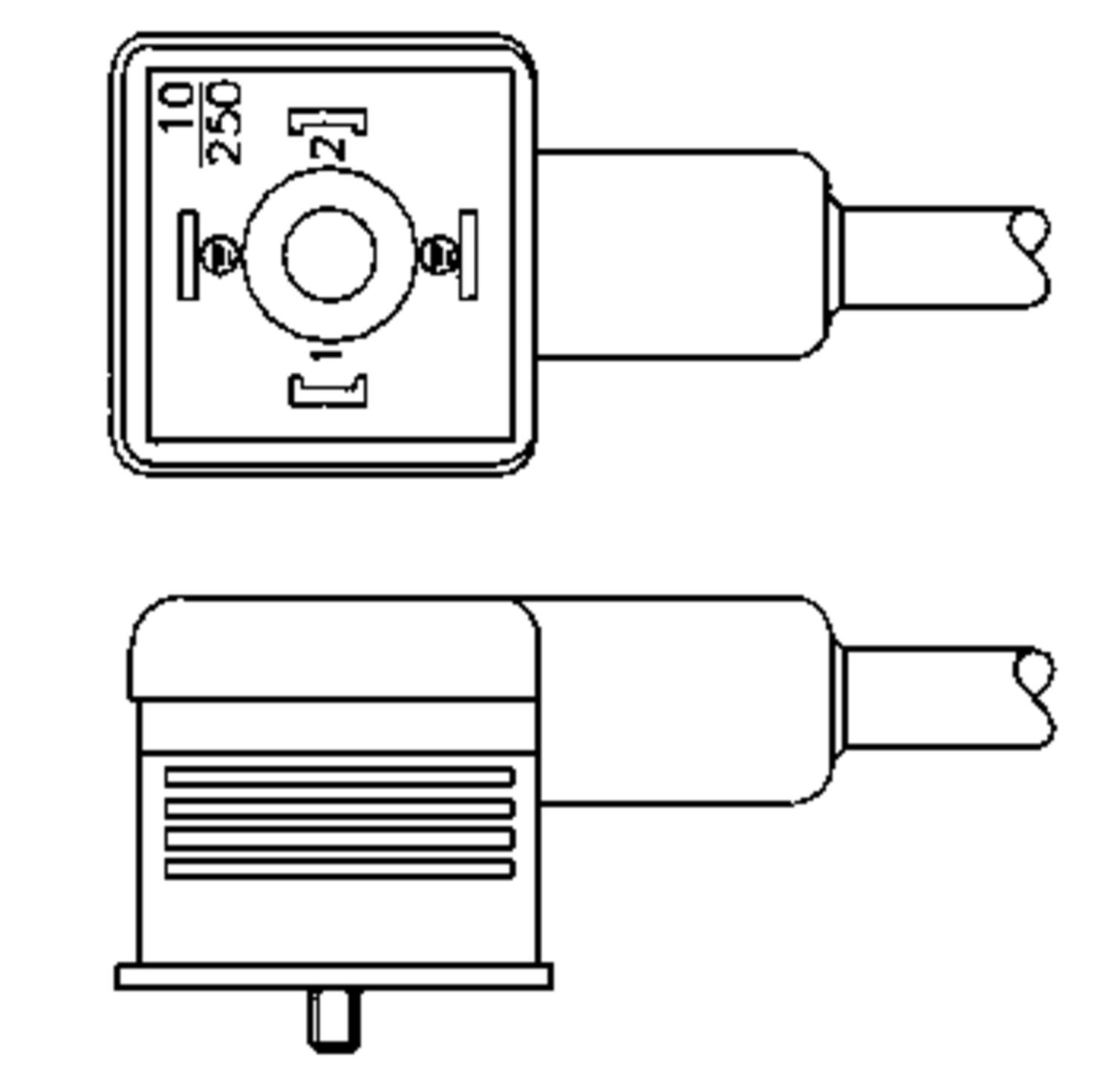

137413_555.tif
DIN/MMC-5P-24V-MM-ST-1M-PUR
Art:
E850B0P12M010 Copied
1
C4: LED & varistor
Yellow
M12
DINA 43650
DIN
Yes
PUR/PVC
24
137417_555.tif
Cordset DINA-M12 str. male 1m PUR
Art:
E85000P12M010R Copied
1
No circuit
M12
DIN
PVC
PUR
PUR/PVC
250
137417_555.tif
Cordset DINA-M12 str. male 2m PUR
Art:
E85000P12M020R Copied
2
M12 5-pole male, DINA 43650
DIN
PUR
PUR
250
137417_555.tif
DINA-M12 1,5m PUR-cable C4 24V AC/DC
Art:
E850B0P12M015 Copied
1,5
C4: LED & varistor
Yellow
M12
DINA 43650
DIN
Yes
PUR/PVC
24
137417_555.tif
Cordset-M12 str. male LED+VDR 1m PUR
Art:
E850B0P12M010R Copied
1
C4: LED & varistor
Yellow
M12
DINA 43650
DIN
Yes
PUR/PVC
24
137417_555.tif
Form A - M12, C4, 24V,PUR, 24V, 2m Length, Yellow
Art:
E850B0P12M020 Copied
2
C4: LED & varistor
Yellow
M12
DINA 43650
DIN
Yes
PUR/PVC
24
137417_555.tif
Cordset DINA-M12 str. male LED+VDR 2m PUR
Art:
E850B0P12M020R Copied
2
C4: LED & varistor
Yellow
M12
DIN
PUR
Yes
PUR
24
250

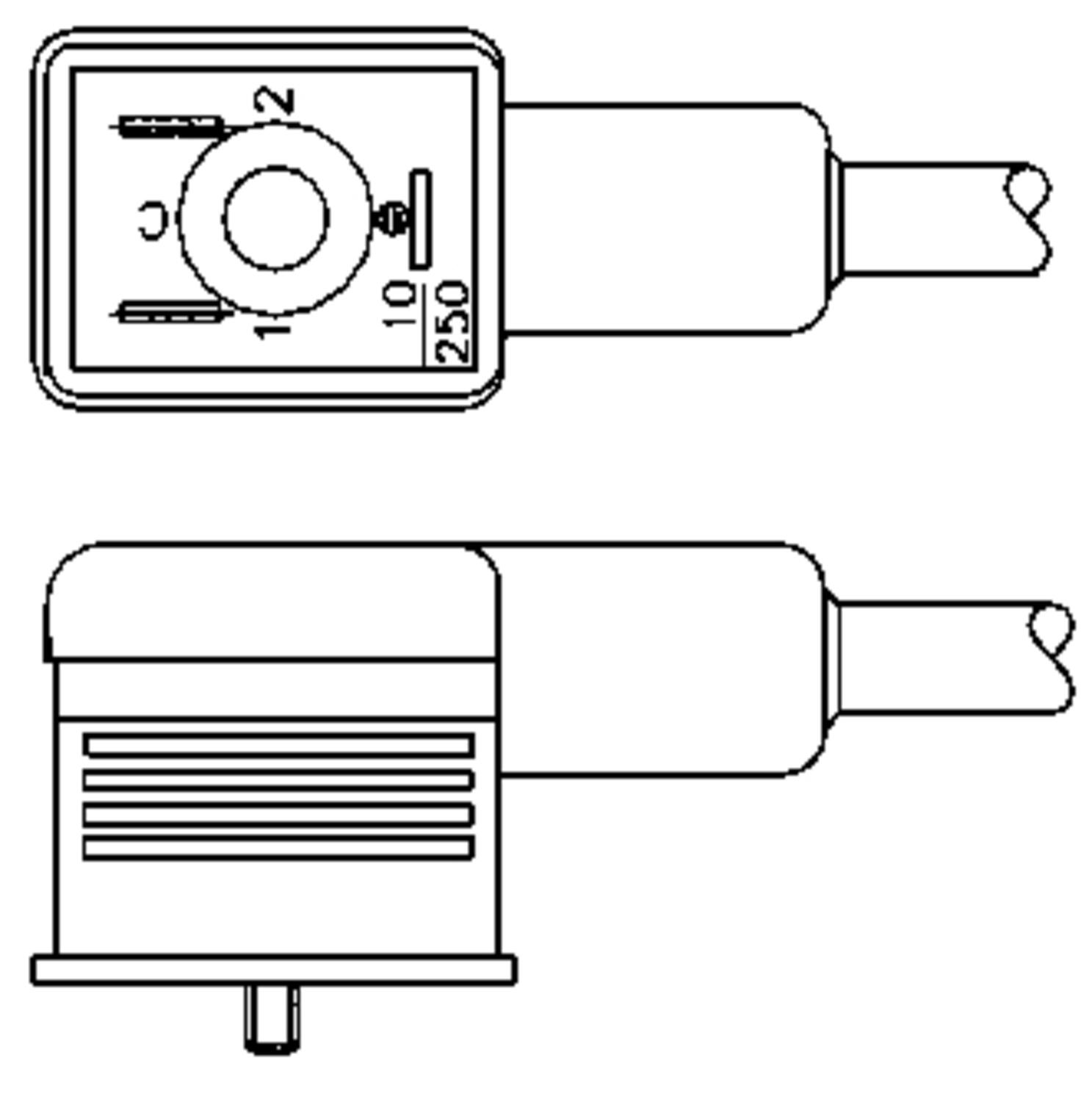

137410_555.tif
Art:
F85000P12M006 Copied
0,6
No circuit
M12
DINB Industry
DIN
No
PUR/PVC
250
137410_555.tif
DINB-M12 male straight, 1m PUR 0-250V
Art:
F85000P12M010 Copied
1
No circuit
M12
DINB Industry
DIN
No
PUR/PVC
250
137410_555.tif
Art:
F85000P12M020 Copied
2
No circuit
M12
DINB Industry
DIN
No
PUR/PVC
250
137410_555.tif
Cordset M12 str. male-DINB LED+VDR 60cm
Art:
F850B0P12M006 Copied
0,6
C4: LED & varistor
Yellow
M12
DINB Industry
DIN
Yes
PUR/PVC
24
137410_555.tif
DINB-M12 1,0m PUR-cable C4 24V AC/DC
Art:
F850B0P12M010 Copied
1
C4: LED & varistor
Yellow
M12
DINB Industry
DIN
Yes
PUR/PVC
24
137410_555.tif
KABELKONT RM12/MPM 2,0M 3POL
Art:
F850B0P12M020 Copied
2
C4: LED & varistor
Yellow
M12
DINB Industry
DIN
Yes
PUR/PVC
24
