Molex - mPm DIN C Industrial / DIN C overmoulded cable

DIN Valve Connectors with moulded cable, IP65 rated. IP67 version available on request. Conforms to EN 175301-803.

  • Fully overmoulded providing a high level of protection
  • Quick and simple installation
  • With or without LED and transient protection
  • 9.4 mm or 8 mm contact distance EN175301-803 (DIN43650-C Industrial/-C)

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Cable length 1
Circuit No circuit
Colour LED No
Connector DIN C 8mm
Cross-Section 0,5
Current max 3
IP Class IP65
LED indicator No
Material Cable PVC
Number of poles 2 + earth
Packing Materials NBR
Rated voltage 250 V
Screw size M2,5x22,5
Temperature range from -40
Temperature range to 90

Downloads

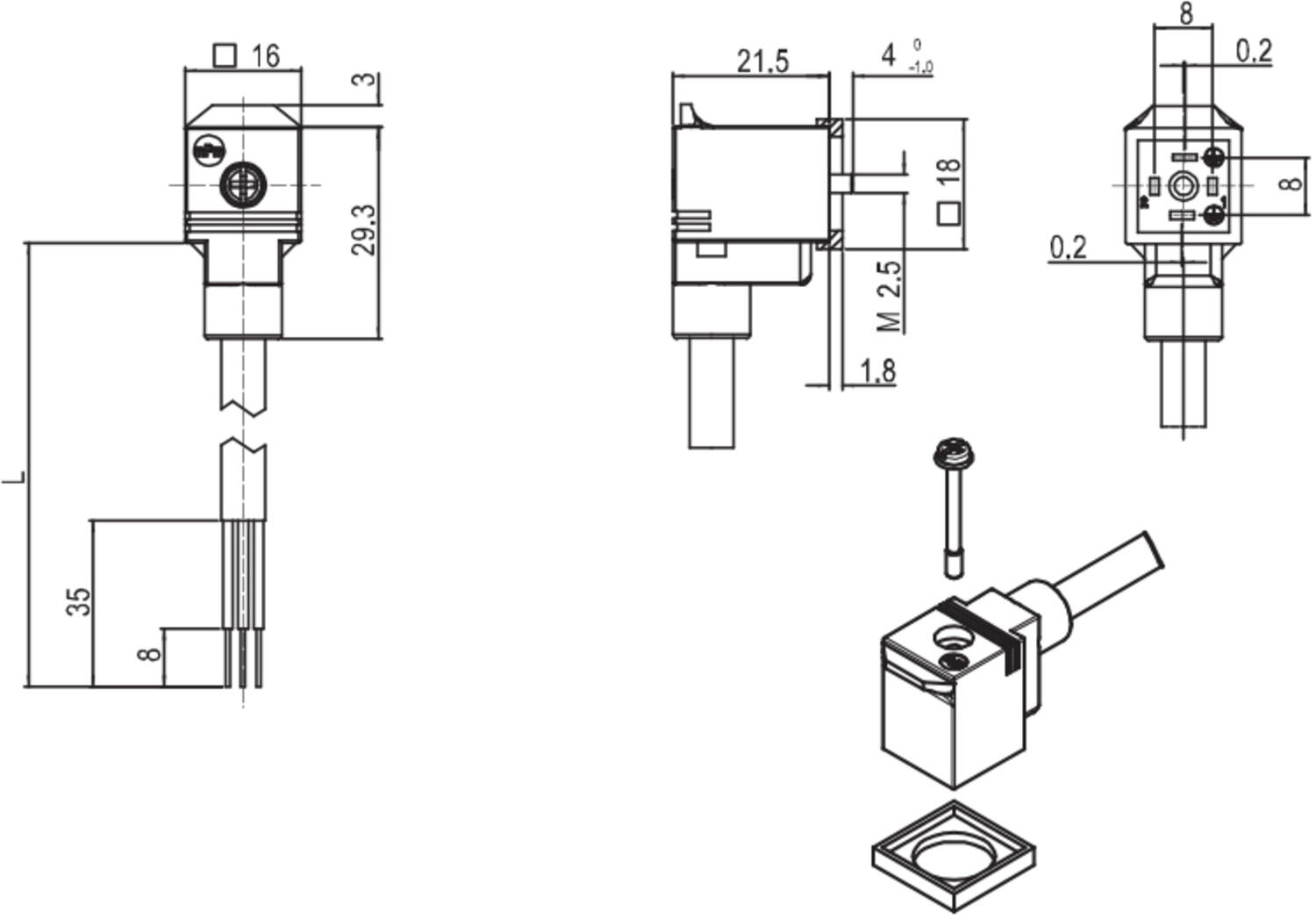

Measurements and connections

Product description

DIN Valve Connectors with moulded cable, IP65 rated. IP67 version available on request. Conforms to EN 175301-803.

Accessories

Related products

My favourites Articles Cable diameter Cable length Circuit Colour LED Connector LED indicator Manufacturer Part No Rated voltage Screw size Price
137421_812.tif
Form C, 2P+Earth, H03 PVC, 1m Length, Profile Gasket
Art:
432N2N10011 Copied
1
No circuit
No
DIN C 8mm
No
250 V
M2,5x22,5
137421_812.tif
Form C, 2P+Earth, H03 PVC, 3m Length, Profile Gasket
Art:
432N2N30011 Copied
3
No circuit
No
DIN C 8mm
No
250 V
M2,5x22,5
137421_812.tif
Form C, 2P+Earth, H03 PVC, 1m, H6/H12, C4, 24V, Yellow
Art:
492N2N10011C4H Copied
1
C4: LED & varistor
Yellow
DIN C 8mm
Yes
24 V AC/DC
M2,5x22,5
137421_812.tif
Form C, 2P+Earth, H03 PVC, 3m, H6/H12, C4, 24V, Yellow
Art:
492N2N30011C4H Copied
3
C4: LED & varistor
Yellow
DIN C 8mm
Yes
24 V AC/DC
M2,5x22,5
137421_812.tif
Form C, 2P+Earth, H03 PVC, 3m, H6/H12, C4, 230V, Yellow
Art:
492N2N30011C4M Copied
3
C4: LED & varistor
Yellow
DIN C 8mm
Yes
230 V AC/DC
M2,5x22,5
137421_812.tif
Form Micro, 2P+Earth, PVC, 1m, H6/H12, NBR Gasket, Black
Art:
332N2N10011 Copied
1
No circuit
No
DIN C micro 94mm
No
250 V
M3x20
137421_812.tif
Form Micro, 2P+Earth, PVC, 3m, H6/H12, NBR Gasket, Black
Art:
332N2N30011 Copied
3
No circuit
No
DIN C micro 94mm
No
250 V
M3x20
137421_812.tif
Form Micro, 2P+Earth, H03 PVC, 1m Length, C4, 24V, Yellow
Art:
392N2N10011C4H Copied
5,4mm
1
C4: LED & varistor
Yellow
DIN C micro 94mm
Yes
24 V AC/DC
M3x20
137421_812.tif
Form Micro, 2P+Earth, H03 PVC, 1m Length, C4, 48V, Yellow
Art:
392N2N10011C4K Copied
5,4mm
1
C4: LED & varistor
Yellow
DIN C micro 94mm
Yes
48 V AC/DC
M3x20
137421_812.tif
Form Micro, 2P+Earth, H03 PVC, 1m Length, C4, 115V, Yellow
Art:
392N2N10011C4L Copied
5,4mm
1
C4: LED & varistor
Yellow
Yes
115 V AC/DC
M3x20
137421_812.tif
Form Micro, 2P+Earth, H03 PVC, 1m Length, C4, 230V, Yellow
Art:
392N2N10011C4M Copied
5,4mm
1
C4: LED & varistor
Yellow
Yes
230 V AC/DC
M3x20
137421_812.tif
Form Micro, 2P+Earth, H03 PVC, 3m Length, C4, 24V, Yellow
Art:
392N2N30011C4H Copied
5,4mm
3
C4: LED & varistor
Yellow
DIN C micro 94mm
Yes
1210500177
24 V AC/DC
M3x20
137421_812.tif
Form Micro, 2P+Earth, H03 PVC, 3m Length, C4, 230V, Yellow
Art:
392N2N30011C4M Copied
5,4mm
3
C4: LED & varistor
Yellow
DIN C micro 94mm
Yes
230 V AC/DC
M3x20
