MOLEX

Molex - mPm Light adapters DIN

DIN Adaptors with protective circuit. The range covers the most important and common applications.

  • Perfect for fault finding
  • Quick and simple installation
  • LED and transient protection

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

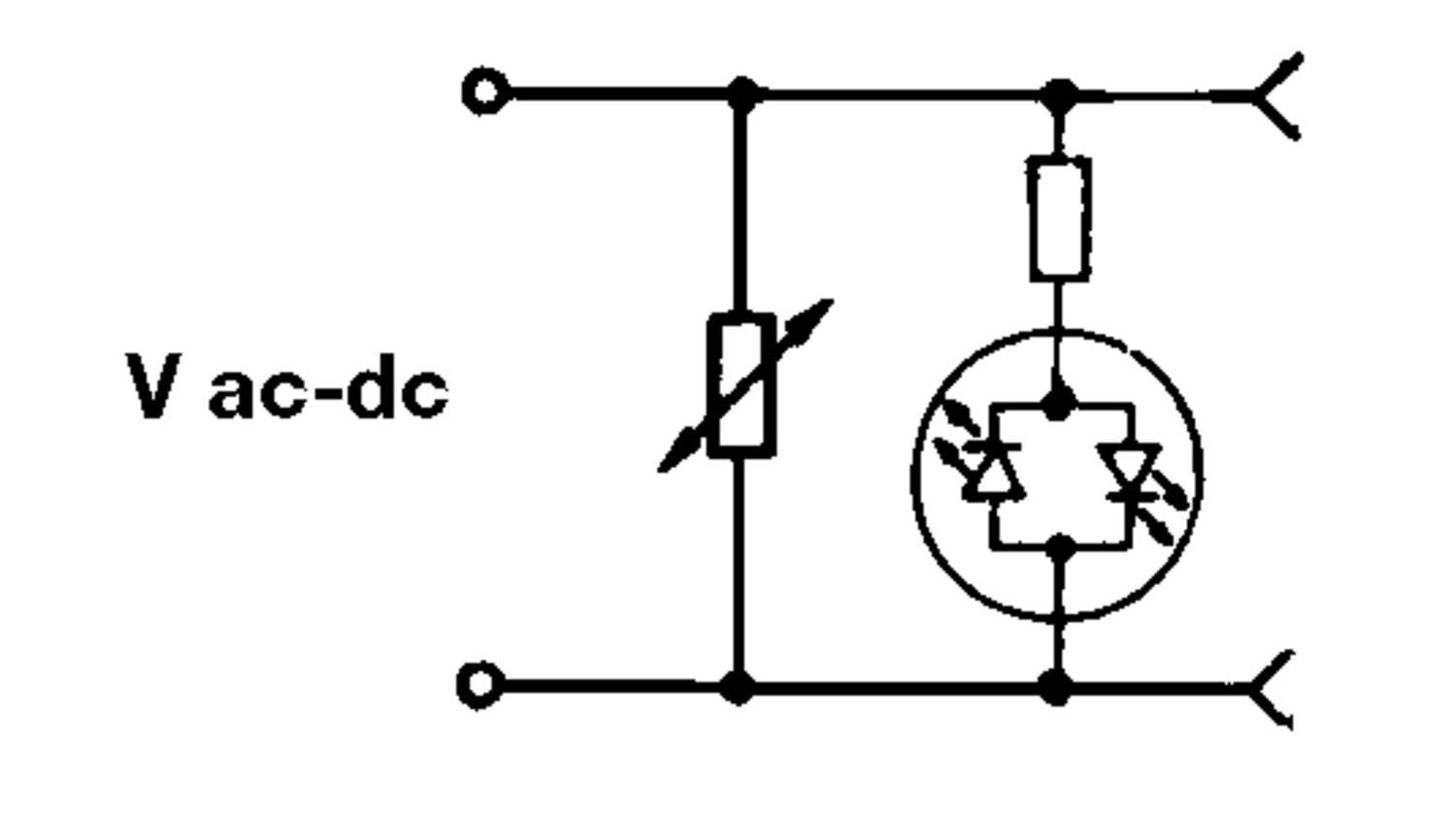

Circuit C4: LED & varistor
Color Contact Black
Colour LED Yellow
Current max 16
IP Class IP65
Manufacturer Part No 1210010219
Materials Contacts Brass
Temperature range from -40
Temperature range to 90
Voltage AC / DC Max 24

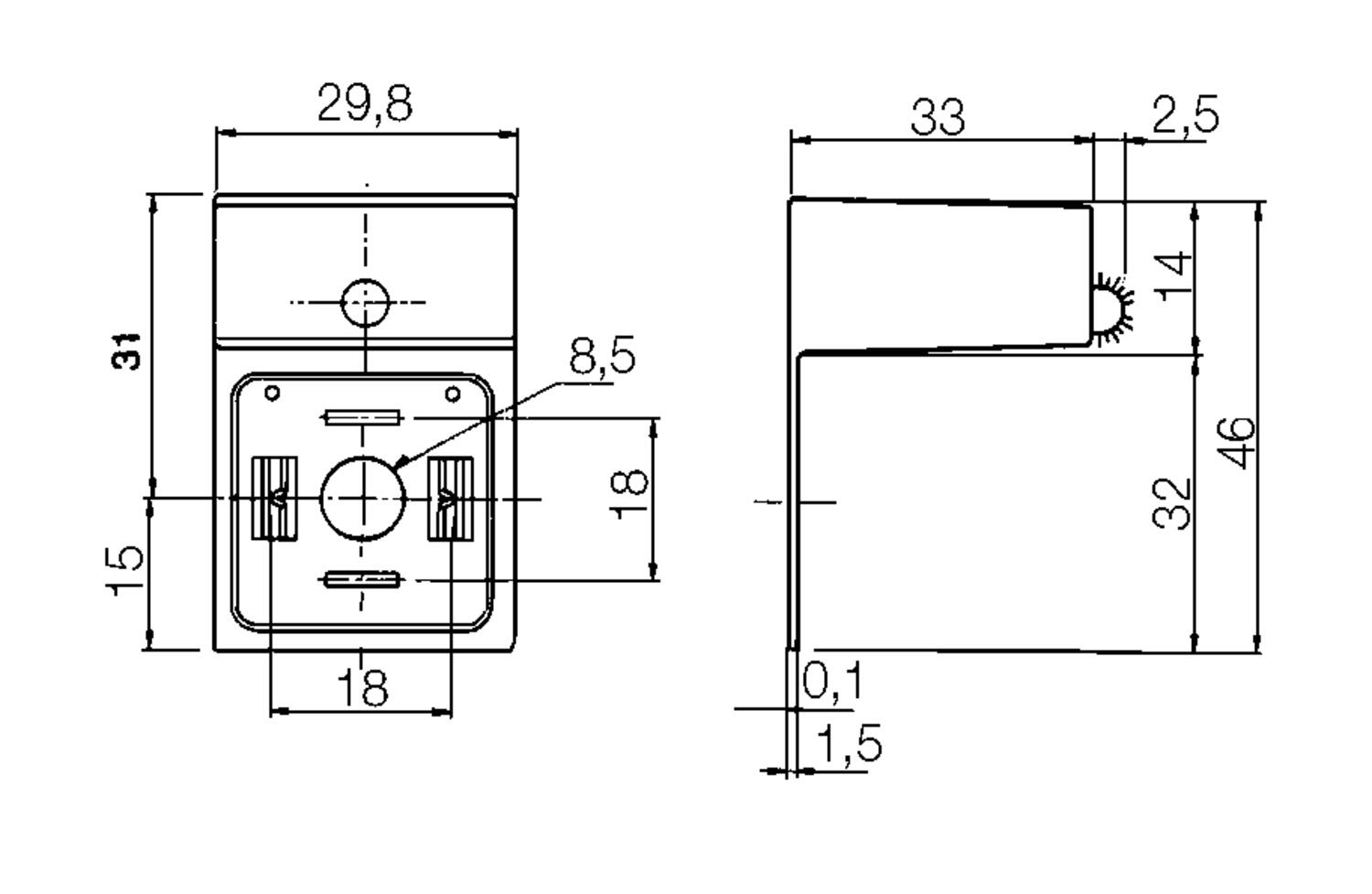

Measurements and connections

Technical illustrations

Product description

DIN Adaptors with protective circuit. The range covers the most important and common applications.

Accessories

My favourites Articles Circuit Colour LED Manufacturer Part No Voltage AC / DC Max Price

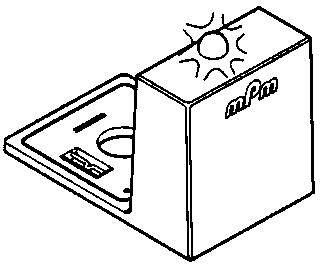

137394_812.tif
Form A, Light Adapter, C4, 24V, Yellow
Art:
A06C4H Copied
C4: LED & varistor
Yellow
1210010219
24
137399_812.tif
Form A, Light Adapter, A1, 24V, Yellow
Art:
A06A1H Copied
A1: LED
Yellow
24
137399_812.tif
Form A, Light Adapter, C4, 115V, Yellow
Art:
A06C4L Copied
C4: LED & varistor
Yellow
1210010220
115
137399_812.tif
Form A, Light Adapter, C4, 115V, Yellow
Art:
A06C44 Copied
C4: LED & varistor
Yellow
121001021
115
137399_812.tif
Form A, Light Adapter, C4, 230V, Red
Art:
A06C45 Copied
C4: LED & varistor
Red
1210010213
230
137399_812.tif
Form A, Light Adapter, C4, 24V, Yellow
Art:
A06C42 Copied
C4: LED & varistor
Yellow
1210010210
24
137399_812.tif
Form Industrial, Light Adapter, C4, 24V, Red
Art:
A05C42 Copied
C4: LED & varistor
Red
1210010165
24

Selected variant

Select a variant in the list
