MOLEX

Molex - mPm M8/M12 to DIN Form A adapter

Number of poles

2P+earth

Material in connector

PA (polyamide)

Max. current

4 A

Contact resistance

≤5 mΩ

IP-class

IP67

Temperature range

-20 °C to +120 °C

Electronics

C4: LED+VDR

Gaskets

Nitrile profile gasket+round flat gasket on the screws

Screw

M3x25 mm

The connectors are supplied complete with rating plate, screw and profile gasket in nitrile.

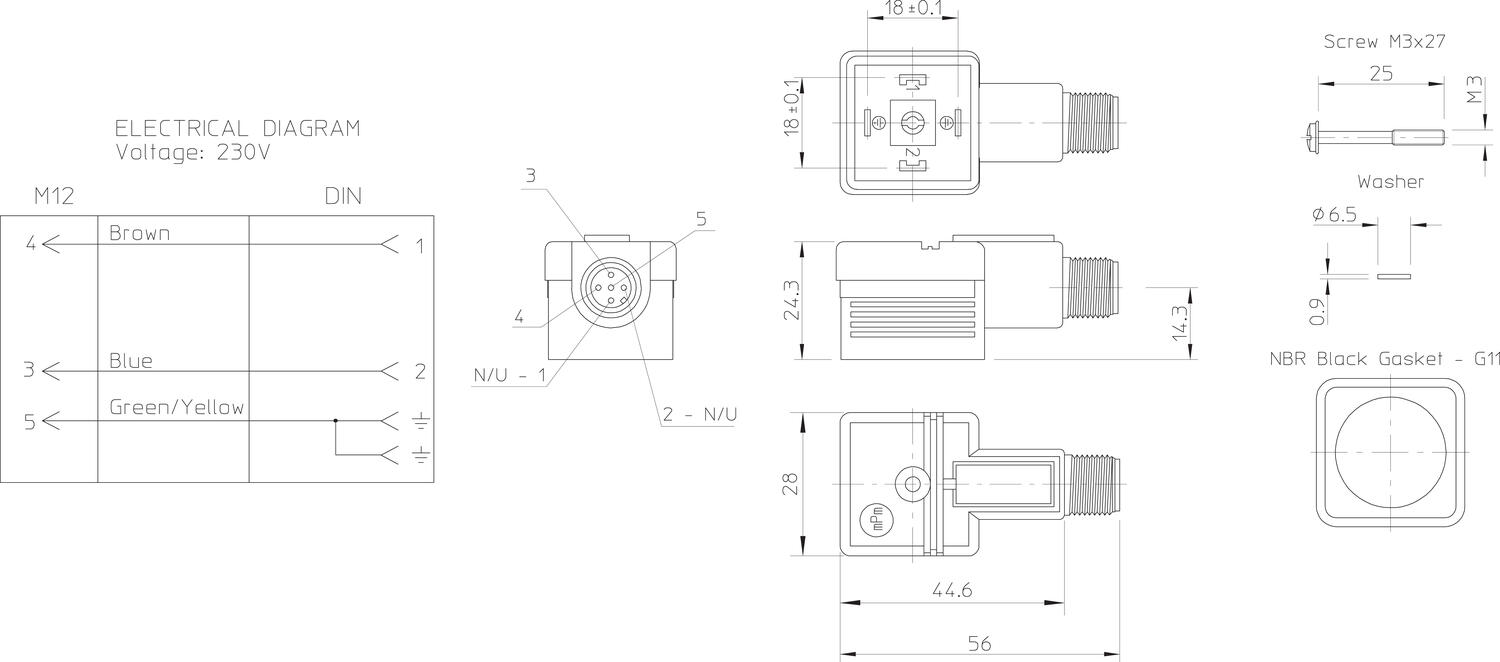

Dimensions

With M8 connector

137450_555.tif

With M12 connector

137449_555.tif



Wiring Diagram

With M8 connector

137448_555.tif

1= Not used
3= 0 Volt (-)
4= +24 Volt (+)



With M12 connector

137447_555.tif

1= Not used
2= Not used
3= 0 Volt (-)
4= +24 Volt (+)
5= Earth



Order number

Order no.

Circuit

Connection

Number of poles

Voltage

E85000

-

M12 to the rear

2+earth

0-115 V

E85002

-

M12 angled

2+earth

0-115 V

E850B0

C4

M12 to the rear

2+earth

24 V AC/DC

E850B2

C4

M12 angled

2+earth

24 V AC/DC

E53000

-

M8 to the rear

2+earth

0-115 V

E53002

-

M8 angled

2+earth

0-115 V

E530B0

C4

M8 to the rear

2+earth

24 V AC/DC

E530B2

C4

M8 angled

2+earth

24 V AC/DC



Special versions

  • Other DIN standards: DIN B Industrial, DIN B, DIN C Industrial or DIN C
  • Other circuits
  • Other pin configuration

Accessories

  • Profile gasket nitrile G11
  • Profile gasket silicone S11
  • Screw M3x25
  • Fully overmolded for better protection
  • Quick and simple installation with M8 and M12
  • With or without LED and transient protection
  • IP-class IP67

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Circuit No circuit
Color House Black
Colour LED No LED
Contact resistance ≤5 mΩ
Current max 5
IP Class IP65
LED indicator No
Material needle Brass
Number of poles 2 + earth
Packing Materials NBR
Rated voltage 250 V AC/300 V DC
Screw size M3x27
Temperature range from -40
Temperature range to 90

Measurements and connections

Product description

Number of poles

2P+earth

Material in connector

PA (polyamide)

Max. current

4 A

Contact resistance

≤5 mΩ

IP-class

IP67

Temperature range

-20 °C to +120 °C

Electronics

C4: LED+VDR

Gaskets

Nitrile profile gasket+round flat gasket on the screws

Screw

M3x25 mm

The connectors are supplied complete with rating plate, screw and profile gasket in nitrile.

Dimensions

With M8 connector

137450_555.tif

With M12 connector

137449_555.tif



Wiring Diagram

With M8 connector

137448_555.tif

1= Not used
3= 0 Volt (-)
4= +24 Volt (+)



With M12 connector

137447_555.tif

1= Not used
2= Not used
3= 0 Volt (-)
4= +24 Volt (+)
5= Earth



Order number

Order no.

Circuit

Connection

Number of poles

Voltage

E85000

-

M12 to the rear

2+earth

0-115 V

E85002

-

M12 angled

2+earth

0-115 V

E850B0

C4

M12 to the rear

2+earth

24 V AC/DC

E850B2

C4

M12 angled

2+earth

24 V AC/DC

E53000

-

M8 to the rear

2+earth

0-115 V

E53002

-

M8 angled

2+earth

0-115 V

E530B0

C4

M8 to the rear

2+earth

24 V AC/DC

E530B2

C4

M8 angled

2+earth

24 V AC/DC



Special versions

  • Other DIN standards: DIN B Industrial, DIN B, DIN C Industrial or DIN C
  • Other circuits
  • Other pin configuration

Accessories

  • Profile gasket nitrile G11
  • Profile gasket silicone S11
  • Screw M3x25

Accessories

My favourites Articles Circuit Colour LED LED indicator Rated voltage Screw size Price
137451_812.tif
DINA+M12, 3pols 0-115V
Art:
E85000 Copied
No circuit
No LED
No
250 V AC/300 V DC
M3x27
137451_812.tif
form A - M12 male strt 24vdc
Art:
E850B0 Copied
C4: LED & varistor
Yellow
Yes
24 V AC/DC
M3x27
137451_812.tif
DIN A - M8 RAK C424V
Art:
E530B0 Copied
C4: LED & varistor
Yellow
Yes
24 V AC/DC
M3x25
