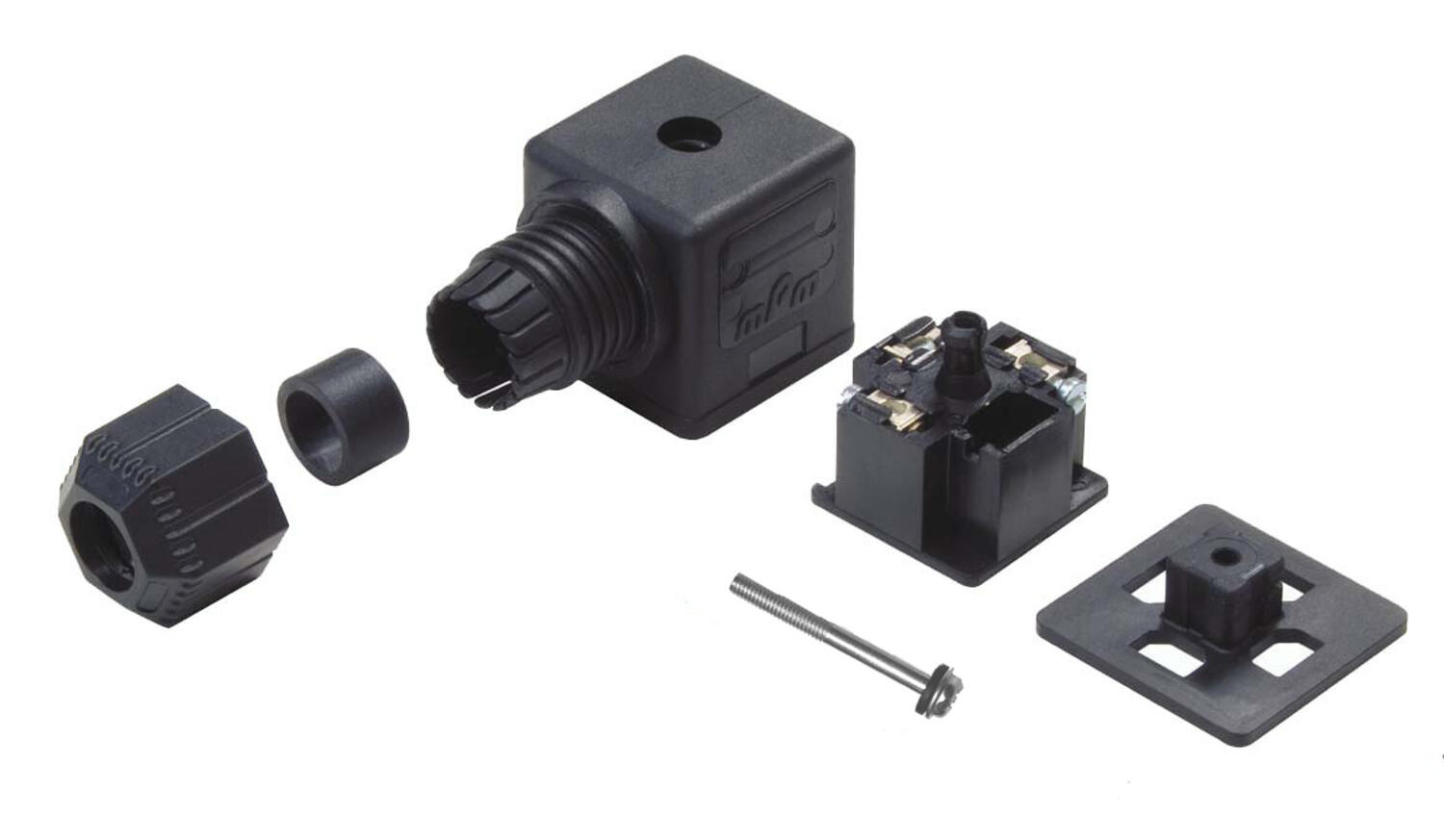

Molex - mPm DIN Form A low housing / high housing

Standard internal thread DIN valve connector, IP65 rated. Available with different thread style, gaskets and circuitry. Conforms to EN 175301-803.



IP67 rated DIN valve connectors with improved strain relief. Cable retention force increased by up to 20% over internal nut styles. Enlarged Cable range that covers the PG9 and PG11 internal thread connector cable range. Conforms to EN 175301-803.



  • With or without LED and transient protection
  • Fibreglass-reinforced housing
  • Turnable insert
  • EN175301-803 (DIN43650)-A

Selected variant

Avaible in several variants
molex_logo.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Cable Diameter Max 9
Cable Diameter Min 4
Central Material Polyamide
Circuit No circuit
Color House Black
Colour LED No LED
Connector DINA 43650
Cross-Section Max 1,5
Current max 16
IP Class IP67
LED indicator No
Manufacturer Part No 1212010001
Number of poles 2 + earth
Packing Materials NBR
Rated voltage 250 V AC/300 V DC
Screw and Gasket Integrated NBR Gasket & IP67 screw
Temperature range from -40
Temperature range to 90

Downloads

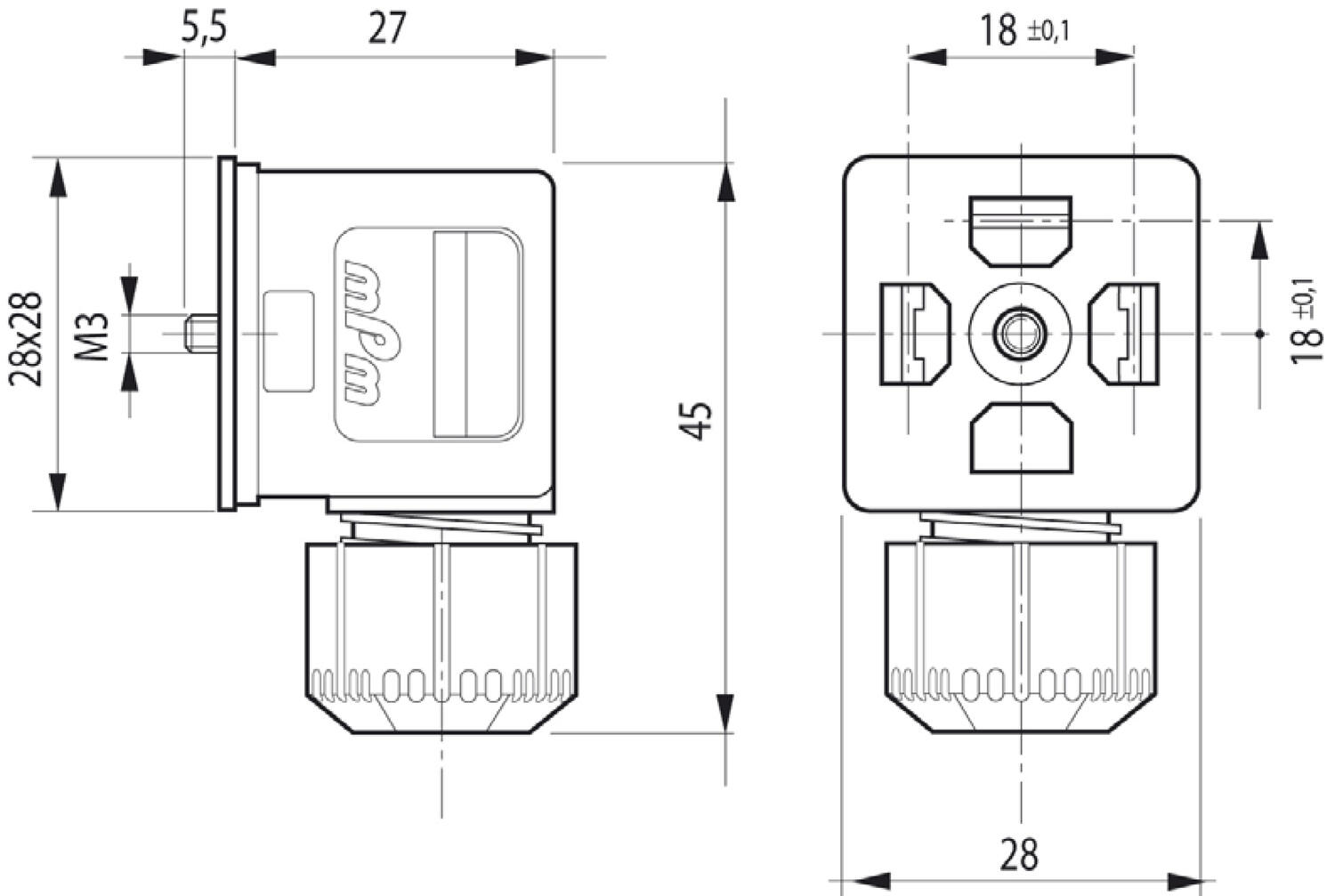

Measurements and connections

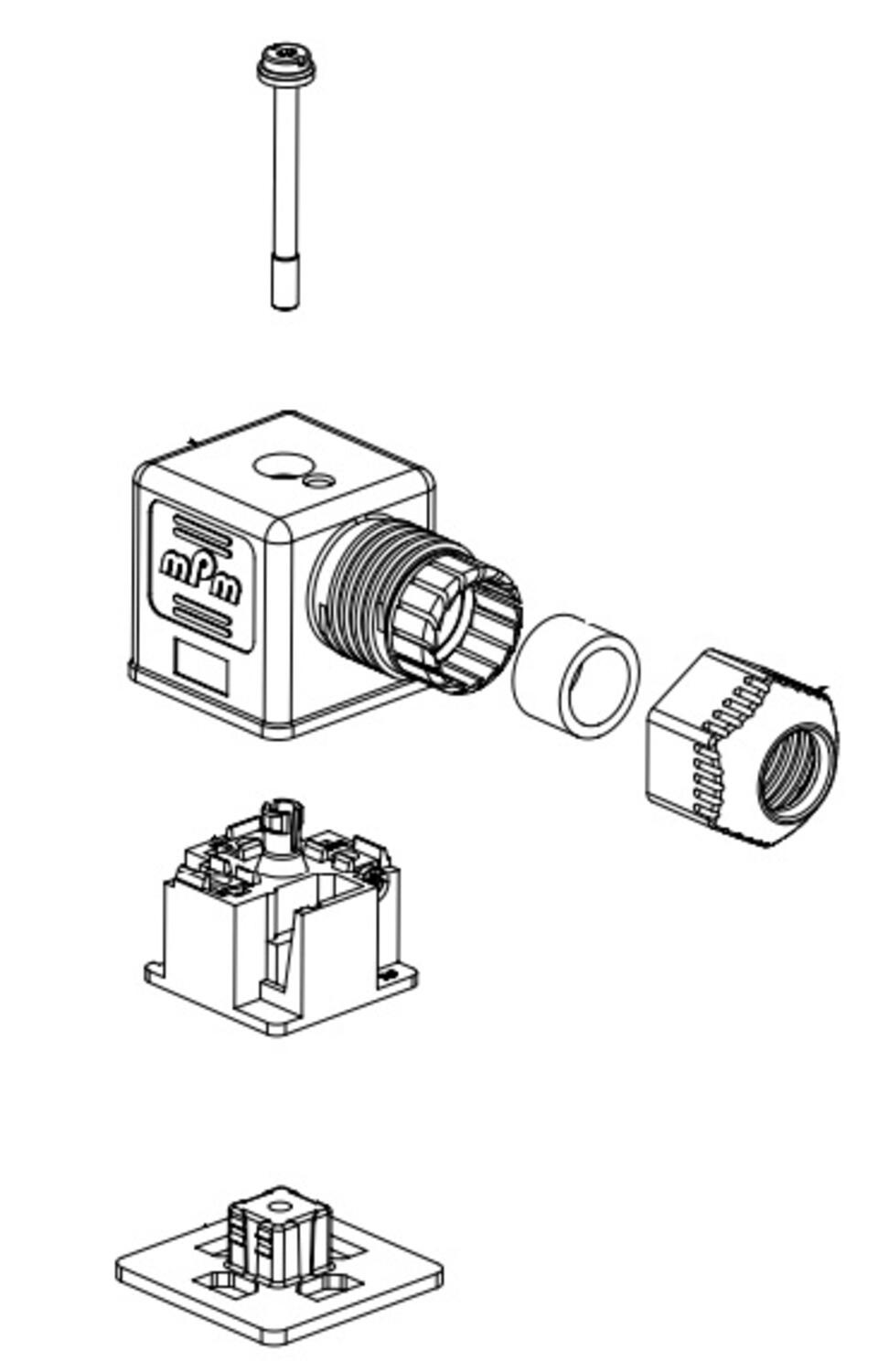

Technical illustrations

Product description

Standard internal thread DIN valve connector, IP65 rated. Available with different thread style, gaskets and circuitry. Conforms to EN 175301-803.



IP67 rated DIN valve connectors with improved strain relief. Cable retention force increased by up to 20% over internal nut styles. Enlarged Cable range that covers the PG9 and PG11 internal thread connector cable range. Conforms to EN 175301-803.



Accessories

Related products

My favourites Articles Cable Diameter Max Cable Diameter Min Cable entry CVL Circuit Color House Colour LED Connector Contact resistance IP Class LED indicator Manufacturer Part No Number of poles Packing Materials Rated voltage Screw and Gasket Price

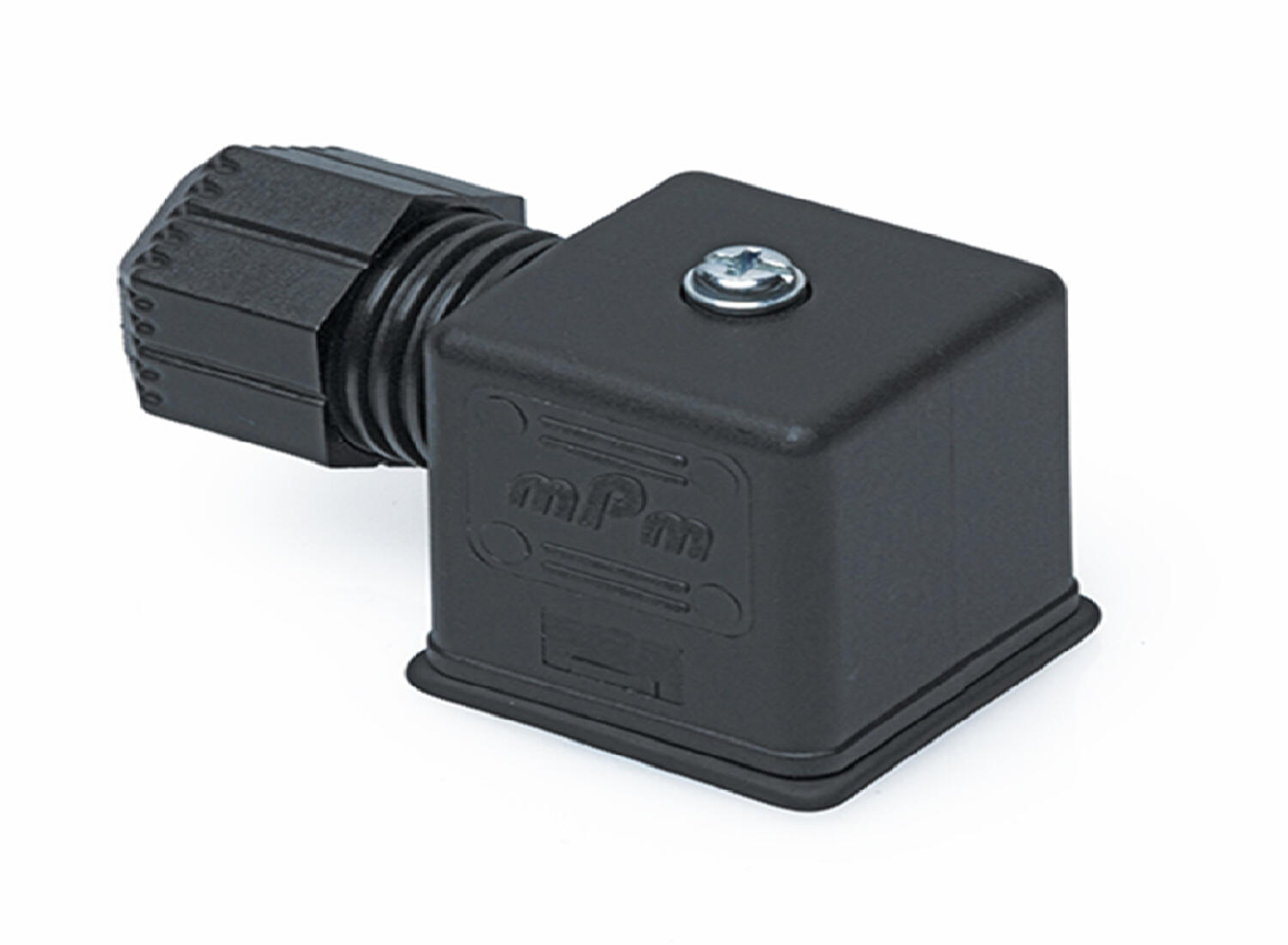

DINA field attachable 2+earth IP67 black
Art:
C28200N0R Copied
9
4
No circuit
Black
No LED
DINA 43650
IP67
No
1212010001
2 + earth
NBR
250 V AC/300 V DC
Integrated NBR Gasket & IP67 screw
Form Industrial, 3P+Earth, Ext Thread, NBR Gask, IP67, Black
Art:
C28300N0R Copied
9
4
No circuit
Black
No LED
DINA 43650
IP67
No
1212010002
3 + earth
NBR
250 V AC/300 V DC
Integrated NBR Gasket & IP67 screw
137387_812.tif
Art:
S18209TC321 Copied
8
6
PG9
C3: LED & diode
Transparent
Red
DINA 43650
IP65
Yes
1210640570
2 + earth
NBR
24 V DC
Profile NBR gasket & screw

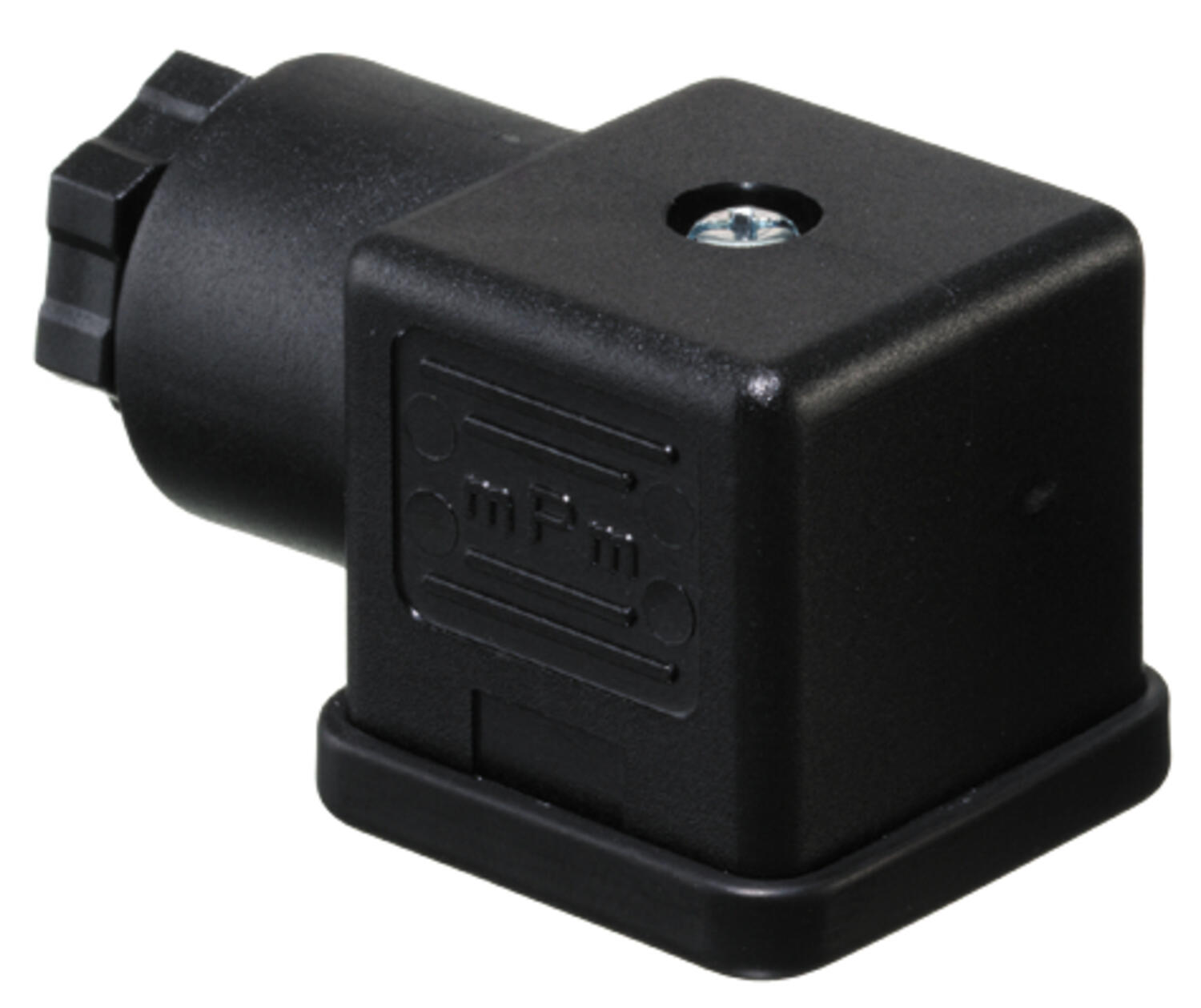

Ventiililiittimet-Harting.tif
Form A, 3P+Earth, PG9, 250V AC/DC, Black Cover
Art:
C18309N21 Copied
8
6
PG9
No circuit
Black
No LED
DINA 43650
IP65
No
1210230341
3 + earth
NBR
250 V AC/300 V DC
Profile NBR gasket & screw
Ventiililiittimet-Harting.tif
Valve connector Form A, 2P+Earth, Profile Gasket PG9
Art:
18209N21 Copied
8
6
PG9
No circuit
Black
No LED
DINA 43650
IP65
No
1210230238
2 + earth
NBR
250 V AC/300 V DC
Profile NBR gasket & screw
Form Industrial, 2P+Earth, PG9, H12, Profile Gasket, Black
Art:
18209G21 Copied
8
6
PG9
No circuit
Grey
No LED
≤15 mΩ
IP65
No
1210230229
2 + earth
NBR
250 V AC/300 V DC
Profile NBR gasket & screw
Ventiililiittimet-Harting.tif
Form Industrial, 2P+Earth, PG11, H12, Profile Gasket, Black
Art:
18211N21 Copied
10
8
PG11
No circuit
Black
No LED
DINA 43650
IP65
No
1210230278
2 + earth
NBR
250 V AC/300 V DC
Profile NBR gasket & screw
Form Industrial, 2P+Earth, PG11, H12, Profile Gasket, Grey
Art:
18211G21 Copied
10
8
PG11
No circuit
Grey
No LED
≤15 mΩ
IP65
No
2 + earth
NBR
250 V AC/300 V DC
Profile NBR gasket & screw
Ventiililiittimet-Harting.tif
Form Industrial, 2P+Earth, M16x1.5, H12, Profile gasket, black
Art:
182M6N21 Copied
8
6
M16x1,5
No circuit
Black
No LED
DINA 43650
IP65
No
121023-0677
2 + earth
NBR
250 V AC/300 V DC
Profile NBR gasket & screw
Ventiililiittimet-Harting.tif
Form Industrial, 2P+Earth, M20x1.5, H12, Profile Gasket, Blk
Art:
182M0N21 Copied
10
8
M20x1,5
No circuit
Black
No LED
≤15 mΩ
IP65
No
1210230662
2 + earth
NBR
250 V AC/300 V DC
Profile NBR gasket & screw
Ventiililiittimet-Harting.tif
Form Industrial, 3P+Earth, PG9, H12, Profile Gasket, Black
Art:
18309N21 Copied
8
6
PG9
No circuit
Black
No LED
DINA 43650
IP65
No
1210230341
3 + earth
NBR
250 V AC/300 V DC
Profile NBR gasket & screw
Ventiililiittimet-Harting.tif
Form Industrial, 3P+Earth, PG9, H12, Profile gasket, Black
Art:
18309W21SA Copied
8
6
PG9
No circuit
Black
No LED
DINA 43650
IP65
No
3 + earth
NBR
250 V AC/300 V DC
Profile NBR gasket & screw
Form Industrial, 2P+Earth, Ext Thread, NBR Gask, IP67, Grey
Art:
C28200G0R Copied
9
4
No circuit
Grey
No LED
DINA 43650
IP67
No
121201-0005
2 + earth
NBR
250 V AC/300 V DC
Integrated NBR Gasket & IP67 screw
Ventiililiittimet-Harting.tif
Form Industrial, 3P+Earth, PG11, H12, Profile Gasket, Black
Art:
18311N21 Copied
10
8
PG11
No circuit
Black
No LED
DINA 43650
IP65
No
1210230377
3 + earth
NBR
250 V AC/300 V DC
Profile NBR gasket & screw
Form A, 2P+Earth, Ext thread, IP67 NBR gasket, Black
Art:
28200N0R Copied
9
4
No circuit
Black
No LED
DINA 43650
IP67
No
1212010001
2 + earth
NBR
250 V AC/300 V DC
Integrated NBR Gasket & IP67 screw
Form A, 3P+Earth, Ext thread, NBR Gasket, IP67, Black
Art:
28300N0R Copied
9
4
No circuit
Black
No LED
DINA 43650
IP67
No
1212010002
3 + earth
NBR
250 V AC/300 V DC
Integrated NBR Gasket & IP67 screw
Form A, 3P+Earth, Ext thread, Silicone Gasket, IP67, Black
Art:
28300N0S Copied
9
4
No circuit
Black
No LED
DINA 43650
IP67
No
1212010030
3 + earth
Silicone
250 V AC/300 V DC
Integrated NBR Gasket & IP67 screw

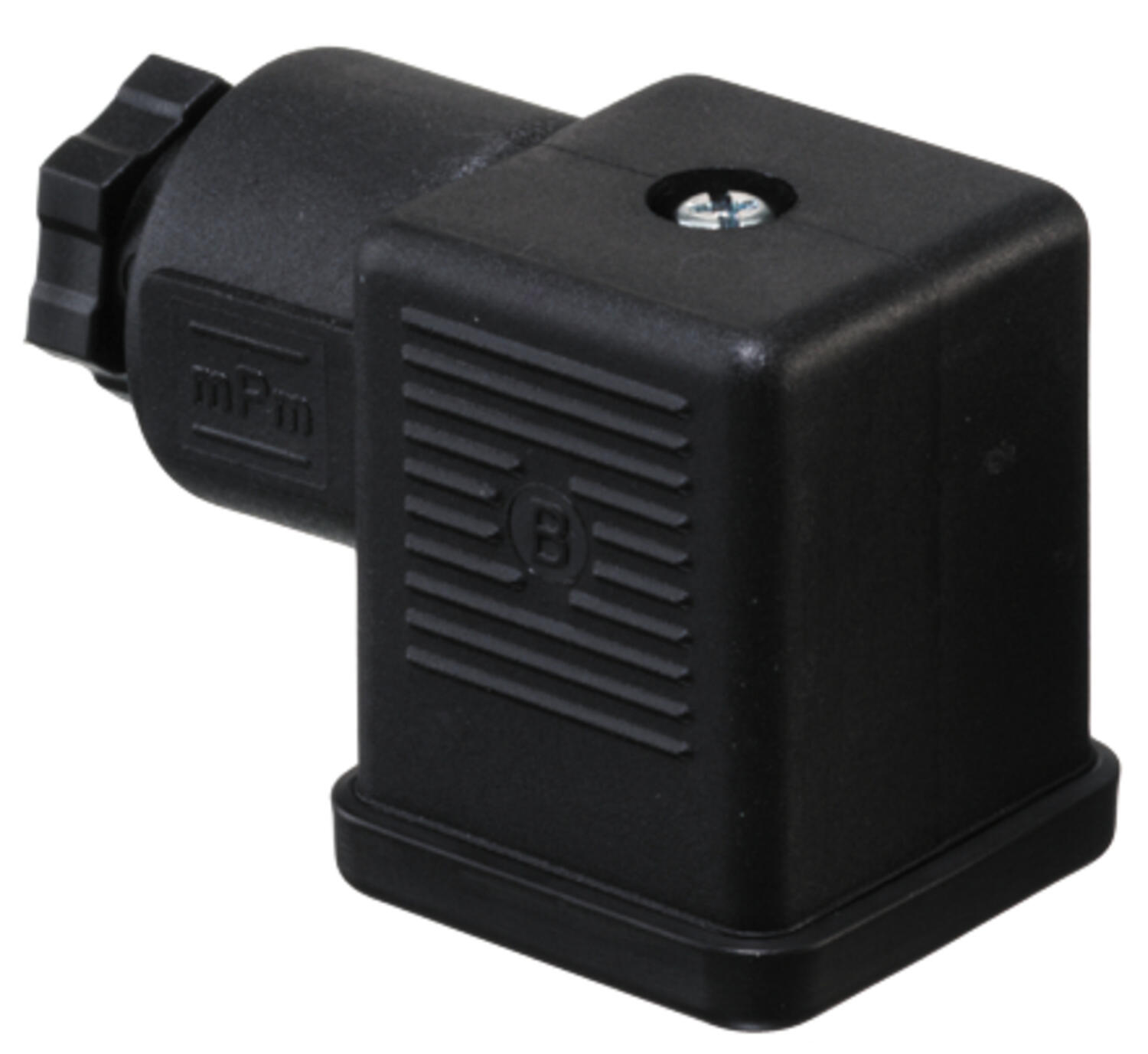

137383_812.tif
Form A, 34mm High, 2P+Earth, PG9, H12, Profile Gasket, Black
Art:
81209N21 Copied
8
6
PG9
No circuit
Black
No LED
DINA 43650
IP65
No
1210230612
2 + earth
NBR
250 V AC/300 V DC
Profile NBR gasket & screw
137383_812.tif
Form A, 34mm High, 2P+Earth, PG11, H12, Profile Gasket, Blk
Art:
81211N21 Copied
10
8
PG11
No circuit
Black
No LED
DINA 43650
IP65
No
121023-0620
2 + earth
NBR
250 V AC/300 V DC
Profile NBR gasket & screw
Form A, 34mm High, 2P+Earth, PG11, H12, Profile Gasket, Grey
Art:
81211G21 Copied
10
8
PG11
No circuit
Grey
No LED
≤15 mΩ
IP65
No
2 + earth
NBR
250 V AC/300 V DC
Profile NBR gasket & screw
137383_812.tif
Form A, 34mm High, 3P+Earth, PG9, H12, Profile Gasket, Blk
Art:
81309N21 Copied
8
6
PG9
No circuit
Black
No LED
DINA 43650
IP65
No
1210230629
3 + earth
NBR
250 V AC/300 V DC
Profile NBR gasket & screw
137383_812.tif
Form A, 34mm High, 3P+Earth, PG11, H12, Profile Gasket, Blk
Art:
81311N21 Copied
10
8
PG11
No circuit
Black
No LED
DINA 43650
IP65
No
1210230633
3 + earth
NBR
250 V AC/300 V DC
Profile NBR gasket & screw
Form A, 2P+Earth, EXT Thread, E0, 230V, IP67 NBR gasket, Black
Art:
28200NE050R Copied
9
4
E0: Switching diode
Black
Red
DINA 43650
IP67
No
1212070116
2 + earth
NBR
230 V DC
Integrated NBR Gasket & IP67 screw
Form A, 2P+Earth, EXT thread, A1, 24V, IP67 NBR gasket, Transparent
Art:
28200TA120R Copied
9
4
A1: LED
Transparent
Red
DINA 43650
IP67
Yes
1212070068
2 + earth
NBR
24 V AC/DC
Integrated NBR Gasket & IP67 screw
Form A, 2P+Earth, Ext Thread, C3, 12V, IP67, Red
Art:
28200TC310R Copied
9
4
C3: LED & diode
Transparent
Red
DINA 43650
IP67
Yes
121207-0082
2 + earth
NBR
12 V DC
Integrated NBR Gasket & IP67 screw
Form A, 2P+Earth, Ext Thread, C3, 24V, IP67, Red
Art:
28200TC320R Copied
9
4
C3: LED & diode
Transparent
Red
DINA 43650
IP67
Yes
1212070001
2 + earth
NBR
24 V DC
Integrated NBR Gasket & IP67 screw
Form A, 2P+Earth, EXT thread, C4, 24V, IP67 NBR gasket, transparent
Art:
28200TC4H0R Copied
9
4
C4: LED & varistor
Transparent
Yellow
DINA 43650
IP67
Yes
1212070005
2 + earth
NBR
24 V AC/DC
Integrated NBR Gasket & IP67 screw
Form A, 2P+Earth, Ext Thread, C4, 24V, IP67, Red
Art:
28200TC420R Copied
9
4
C4: LED & varistor
Transparent
Red
DINA 43650
IP67
Yes
1212070004
2 + earth
NBR
24 V AC/DC
Integrated NBR Gasket & IP67 screw
Form A, 2P+Earth, EXT thread, C4, 230V, IP67 NBR gasket, Transparent
Art:
28200TC4M0R Copied
9
4
C4: LED & varistor
Transparent
Yellow
DINA 43650
IP67
Yes
1212070106
2 + earth
NBR
230 V AC/DC
Integrated NBR Gasket & IP67 screw
Form A, 2P+Earth, EXT thread, R2, 230V, IP67 NBR gasket, Transparent
Art:
28200TR2M6RSN Copied
9
4
R2: LED & rectifier & varistor
Transparent
Yellow
DINA 43650
IP67
Yes
1212120021
2 + earth
NBR
230 V AC
Integrated NBR Gasket & IP67 screw
Ventiililiittimet-Harting.tif
Form Industrial, 2P+Earth, PG9, E0, Profile Gasket, Black
Art:
18209NE051 Copied
8
6
PG9
E0: Switching diode
Black
Red
≤15 mΩ
IP65
Yes
2 + earth
NBR
230 V DC
Profile NBR gasket & screw
137387_812.tif
Form Industrial, 2P+Earth, PG9, C3, 12V, Profile Gasket, Transparent
Art:
18209TC311 Copied
8
6
PG9
C3: LED & diode
Transparent
Red
DINA 43650
IP65
Yes
1210640568
2 + earth
NBR
12 V DC
Profile NBR gasket & screw
137387_812.tif
Form Industrial, 2P+Earth, PG9, C3, 24V, Profile Gasket, Red
Art:
18209TC321 Copied
8
6
PG9
C3: LED & diode
Transparent
Red
DINA 43650
IP65
Yes
1210640570
2 + earth
NBR
24 V DC
Profile NBR gasket & screw
137387_812.tif
Form Industrial, 2P+Earth, PG9, C4, 24V, Profile Gasket, Transparent
Art:
18209TC421 Copied
8
6
PG9
C4: LED & varistor
Transparent
Red
DINA 43650
IP65
Yes
1210640579
2 + earth
NBR
24 V AC/DC
Profile NBR gasket & screw
137387_812.tif
Form Industrial, 2P+Earth, PG9, C3, 12V, Profile Gasket, Yel
Art:
18209TC3G1 Copied
8
6
PG9
C3: LED & diode
Transparent
Yellow
DINA 43650
IP65
Yes
2 + earth
NBR
12 V DC
Profile NBR gasket & screw
137387_812.tif
Form Industrial, 2P+Earth, PG9, C3, 24V, Profile Gasket, Yel
Art:
18209TC3H1 Copied
8
6
PG9
C3: LED & diode
Transparent
Yellow
DINA 43650
IP65
Yes
2 + earth
NBR
24 V DC
Profile NBR gasket & screw
137387_812.tif
Form Industrial, 2P+Earth, PG9, C4, 12V, Profile Gask, Yell
Art:
18209TC4G1 Copied
8
6
PG9
C4: LED & varistor
Transparent
Yellow
DINA 43650
IP65
Yes
1210641317
2 + earth
NBR
12 V AC/DC
Profile NBR gasket & screw
137387_812.tif
Form Industrial, 2P+Earth, PG9, C4, 24V, Profile Gask, Yell
Art:
18209TC4H1 Copied
8
6
PG9
C4: LED & varistor
Transparent
Yellow
DINA 43650
IP65
Yes
1210640600
2 + earth
NBR
24 V AC/DC
Profile NBR gasket & screw
137387_812.tif
Form Industrial, 2P+Earth, M16x1.5, C4, 24V, NBR gasket, Transparent
Art:
182M6TC4H1 Copied
8
6
M16x1,5
C4: LED & varistor
Transparent
Yellow
DINA 43650
IP65
Yes
1210641374
2 + earth
NBR
24 V AC/DC
Profile NBR gasket & screw
137387_812.tif
Form Industrial, 2P+Earth, M20x1.5, C4, 24V, NBR gasket, Transparent
Art:
182M0TC4B1 Copied
10
8
M20x1,5
C4: LED & varistor
Transparent
Green
≤15 mΩ
IP65
Yes
2 + earth
NBR
24 V AC/DC
Profile NBR gasket & screw
137387_812.tif
DINA field attachable LED+VDR 24V PG11
Art:
18211TC4H1 Copied
8
6
PG11
C4: LED & varistor
Transparent
Yellow
DINA 43650
IP65
Yes
1210640685
2 + earth
NBR
24 V AC/DC
Profile NBR gasket & screw
137387_812.tif
Form Industrial, 2P+Earth, PG11, C4, 230V, Profile Gasket, transparent
Art:
18211TC451 Copied
10
8
PG11
C4: LED & varistor
Transparent
Red
DINA 43650
IP65
Yes
1210640681
2 + earth
NBR
230 V AC/DC
Profile NBR gasket & screw
137387_812.tif
Form Industrial, 2P+Earth, PG9, C4, 48V, Profile Gask, Yell
Art:
18209TC4K1 Copied
8
6
PG9
C4: LED & varistor
Transparent
Yellow
≤15 mΩ
IP65
Yes
2 + earth
NBR
48 V AC/DC
Profile NBR gasket & screw
137387_812.tif
Form Industrial, 2P+Earth, PG9, C4, 115V, Profile Gask, Yell
Art:
18209TC4L1 Copied
8
6
PG9
C4: LED & varistor
Transparent
Yellow
DINA 43650
IP65
Yes
2 + earth
NBR
115 V AC/DC
Profile NBR gasket & screw
137387_812.tif
Form Industrial, 2P+Earth, PG9, C4, 230V, Profile Gask, Yell
Art:
18209TC4M1 Copied
8
6
PG9
C4: LED & varistor
Transparent
Yellow
DINA 43650
IP65
Yes
1210640603
2 + earth
NBR
230 V AC/DC
Profile NBR gasket & screw
137387_812.tif
Form Industrial, 2P+Earth, PG9, S0, 24V, Profile Gask, Yell
Art:
18209TS0H1 Copied
8
6
PG9
S0: LED & zener diode
Transparent
Yellow
DINA 43650
IP65
Yes
2 + earth
NBR
24 V AC/DC
Profile NBR gasket & screw
137387_812.tif
Form Industrial, 2P+Earth, PG11, C4, 230V, Profile Gask, Yel
Art:
18211TC4M1 Copied
10
8
PG11
C4: LED & varistor
Transparent
Yellow
DINA 43650
IP65
Yes
1210640687
2 + earth
NBR
230 V AC/DC
Profile NBR gasket & screw
137382_812.tif
Form A, 2P+Earth, PG9, R2, 24V, Profile Gasket, Transparent
Art:
53209TR2H1 Copied
8
6
PG9
R2: LED & rectifier & varistor
Transparent
Yellow
DINA 43650
IP65
Yes
2 + earth
NBR
24 V AC
Profile NBR gasket & screw
137383_812.tif
Form A, 2P+Earth, PG9, R0, 24V, Profile Gasket, Black
Art:
53209NR021 Copied
8
6
PG9
R0: Rectifier & varistor
Black
Red
DINA 43650
IP65
Yes
2 + earth
NBR
24 V AC
Profile NBR gasket & screw
137383_812.tif
Form A, 2P+Earth, PG9, R0, 230V, Profile Gasket, Black
Art:
53209NR051 Copied
8
6
PG9
R0: Rectifier & varistor
Black
Red
DINA 43650
IP65
Yes
2 + earth
NBR
230 V AC
Profile NBR gasket & screw
137383_812.tif
Form A, 2P+Earth, PG11, R0, 230V, Profile Gasket, Black
Art:
53211NR051 Copied
10
8
PG11
R0: Rectifier & varistor
Black
Red
DINA 43650
IP65
Yes
1210640979
2 + earth
NBR
230 V AC
Profile NBR gasket & screw
137382_812.tif
Form A, 2P+Earth, PG9, R2, 230V, Profile Gasket, Transparent
Art:
53209TR2M1 Copied
8
6
PG9
R2: LED & rectifier & varistor
Transparent
Yellow
DINA 43650
IP65
Yes
1210640955
2 + earth
NBR
230 V AC
Profile NBR gasket & screw

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Cookie settings for Demesne

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.

Please login or continue as a guest

To get the best deals
Login | Create account
