EFFILUX - Line3 - Powerful LED Line Light

Effilux - Line3

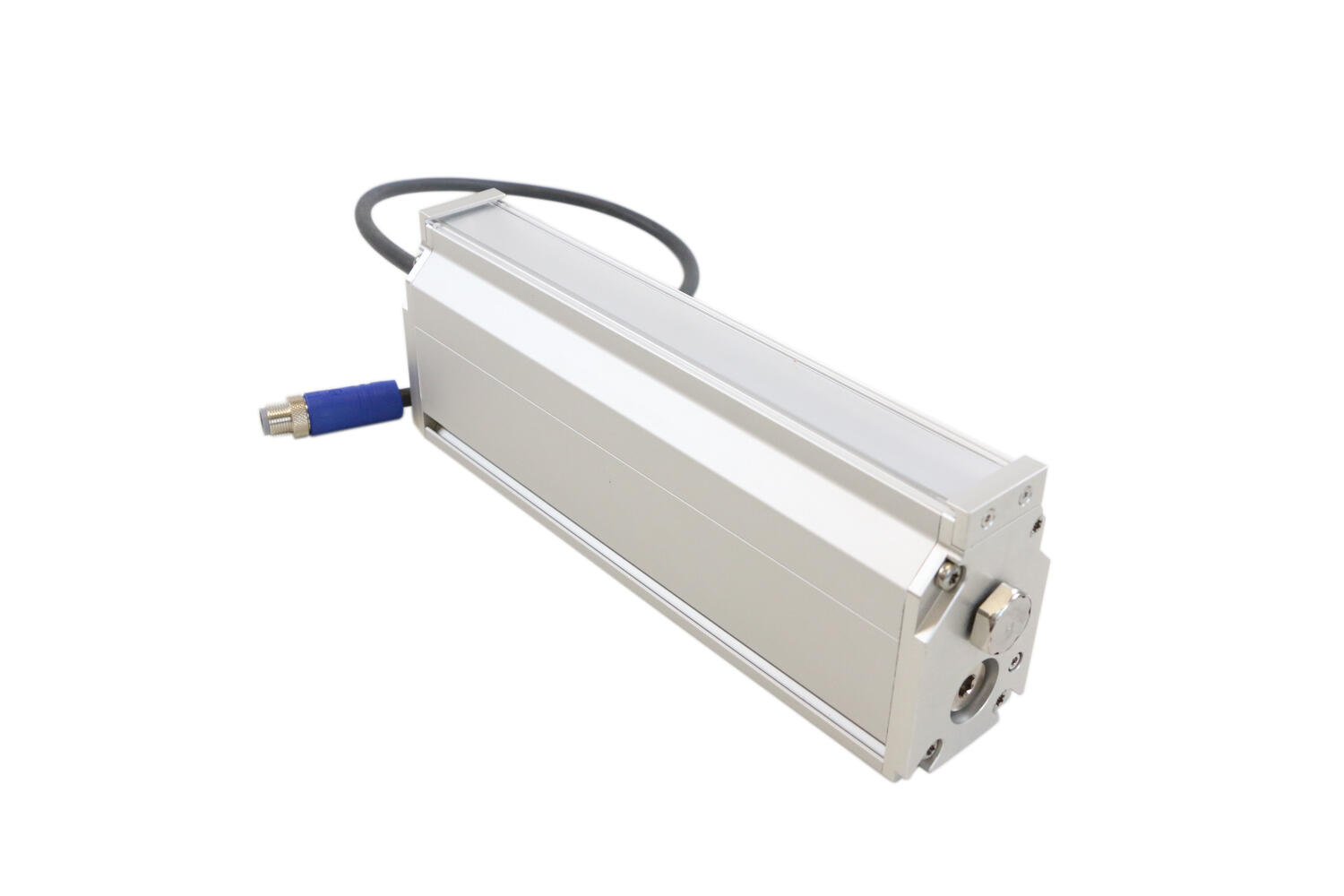

EFFI-Line3 is the new generation of LED line light intended for linescan applications designed and manufactured by Effilux.



The light has all the requested qualities for this type of application as a large homogeneity, very high power and an excellent collimation.



  • Versatility. Efficient over a wide range of working distances with scalable power and homogeneity according to the needs.
  • Built-in driver for continuous mode or strobe mode, with analog intensity control (AIC) allowing to adjust the output power.



Robust design for inspection in rough environments.



What applications can I use line light for?



EFFILUX high uniformity LED line lights can be used in conjunction with line scan cameras for line scan inspection application such as:

  • Web inspections (such as films, paper, cotton, textiles)
  • Sorting & packaging (such as refuse, postal mail, foodstuffs, packaging)
  • Transport-related applications (such as underfloor, rail, overhead line, and container inspections)
  • Large area continuous web applications: paper, textiles, wood, etc
  • High speed inspections for printing industry
  • Code reading: QR codes, barcodes, etc. Inspection of transparent and/or reflective objects: film, glass, metal, coated surface, solar panels.
  • Inspection of transparent and/or reflective objects: film, glass, metal, coated surface, solar panels



About EFFILUX -



EFFILUX designs and manufactures powerful technical LED lighting systems for machine vision, quality control, scientific imaging, biomedical and any optical measuring device.

Effilux has used all its expertise and its 13 years of experience in the field of machine vision to design a versatile and easy-to-use light that has all the qualities required for linear applications.

With machine vision LED lighting designed to easily adapt in the field and highly robust in design, EFFILUX are revolutionising with their interchangeable lens and filter solutions.



Do you think your application could benefit from these new LED line lights?



Find out more by emailing [email protected] or calling 01162849900





  • Illumination Mode - Continuous or strobe
  • IP5X (dust protected) / IP67 version available
  • Operation environment - Temperature: 0°C to 50°C - Humidity: 20 to 85%RH (with no condensation) - Altitude: Up to 2000m

Selected variant

Avaible in several variants

Selected variant

Specifications

Approvals CE, UKCA, REACH, RoHS
Central Material Aluminium
Color Blue
Connector/controller M12, 4P
IP Class IP5X
Length 200
Operating temperature 0-50°C
Standard cable length 500mm
Supply voltage 24
Wave-Length 465
Width 52

Measurements and connections

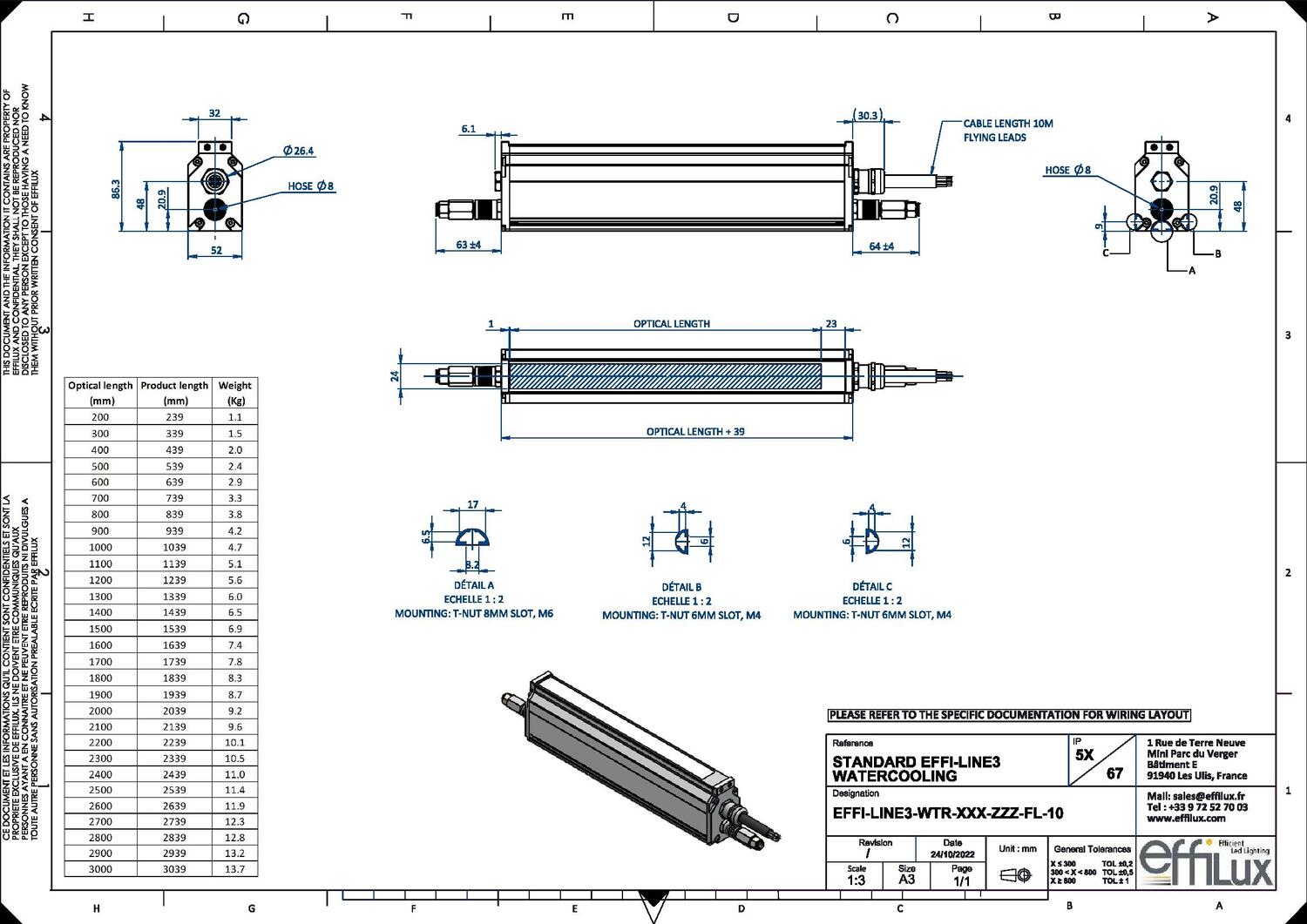

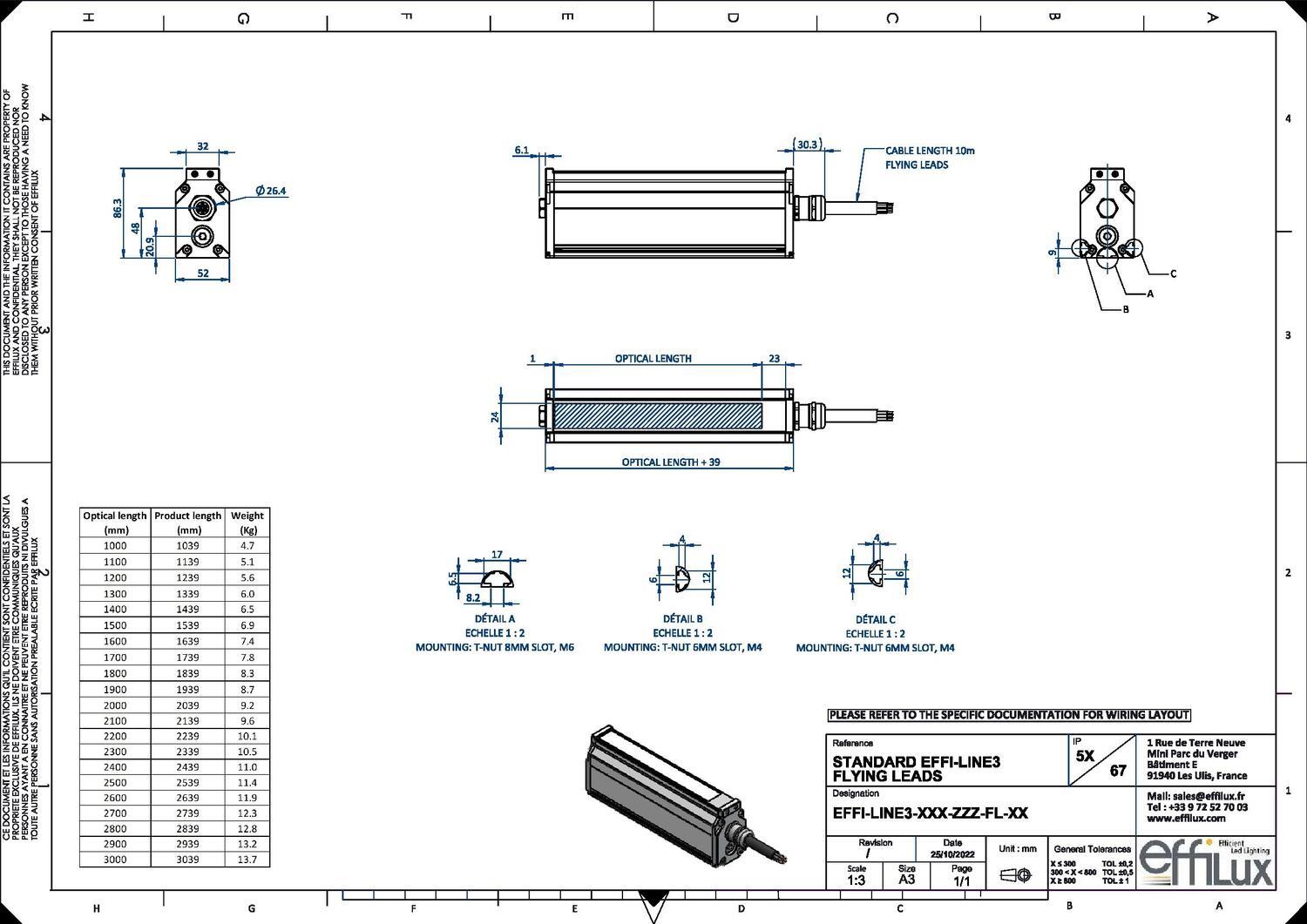

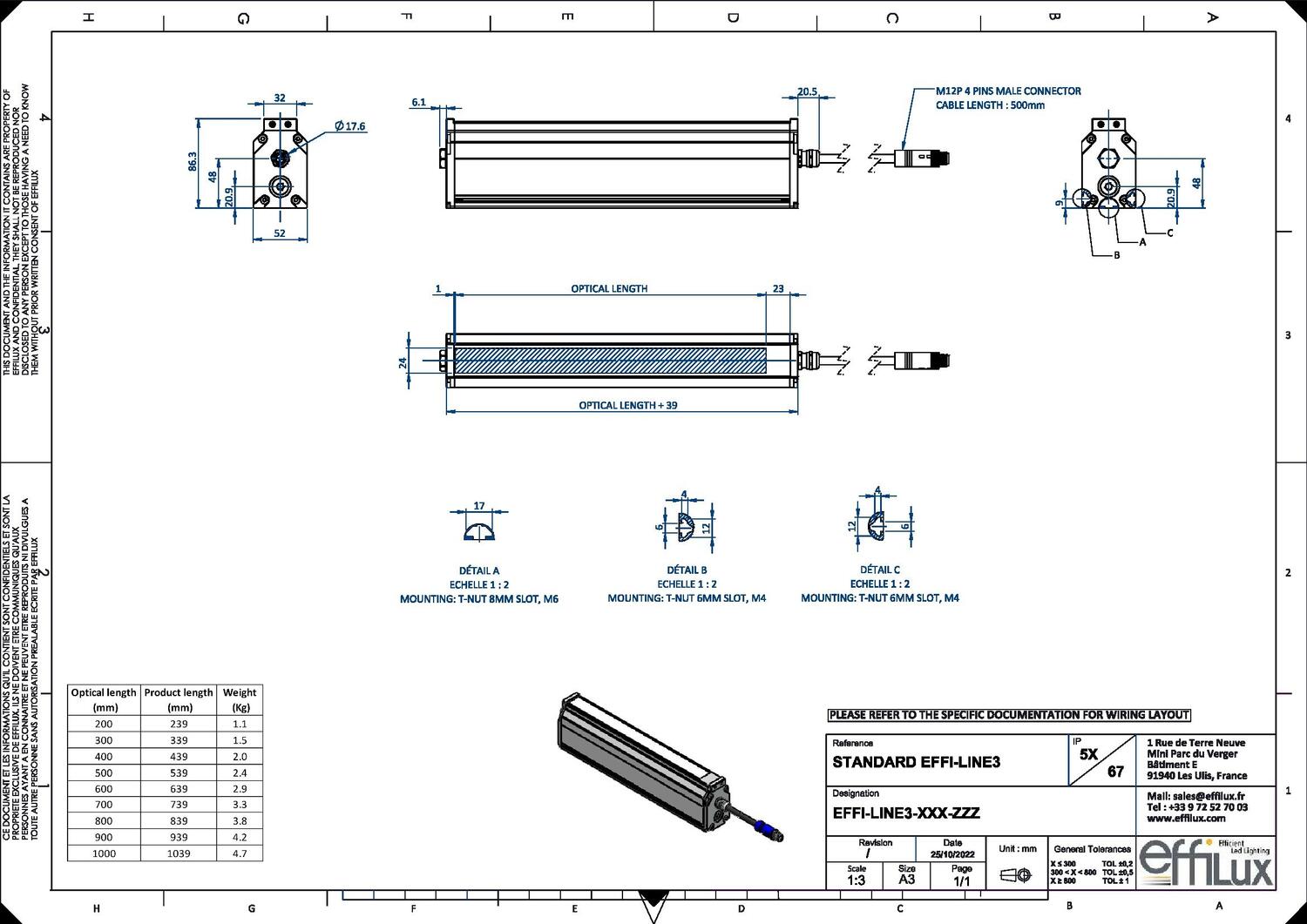

Technical illustrations

Product description



EFFI-Line3 is the new generation of LED line light intended for linescan applications designed and manufactured by Effilux.



The light has all the requested qualities for this type of application as a large homogeneity, very high power and an excellent collimation.



  • Versatility. Efficient over a wide range of working distances with scalable power and homogeneity according to the needs.
  • Built-in driver for continuous mode or strobe mode, with analog intensity control (AIC) allowing to adjust the output power.



Robust design for inspection in rough environments.



What applications can I use line light for?



EFFILUX high uniformity LED line lights can be used in conjunction with line scan cameras for line scan inspection application such as:

  • Web inspections (such as films, paper, cotton, textiles)
  • Sorting & packaging (such as refuse, postal mail, foodstuffs, packaging)
  • Transport-related applications (such as underfloor, rail, overhead line, and container inspections)
  • Large area continuous web applications: paper, textiles, wood, etc
  • High speed inspections for printing industry
  • Code reading: QR codes, barcodes, etc. Inspection of transparent and/or reflective objects: film, glass, metal, coated surface, solar panels.
  • Inspection of transparent and/or reflective objects: film, glass, metal, coated surface, solar panels



About EFFILUX -



EFFILUX designs and manufactures powerful technical LED lighting systems for machine vision, quality control, scientific imaging, biomedical and any optical measuring device.

Effilux has used all its expertise and its 13 years of experience in the field of machine vision to design a versatile and easy-to-use light that has all the qualities required for linear applications.

With machine vision LED lighting designed to easily adapt in the field and highly robust in design, EFFILUX are revolutionising with their interchangeable lens and filter solutions.



Do you think your application could benefit from these new LED line lights?



Find out more by emailing [email protected] or calling 01162849900





Accessories

My favourites Articles Color Length Wave-Length Price
Blue
200
465
Red
200
625
Infrared
200
850
White
200
000
Blue
300
465
Red
300
625
Infrared
300
850
White
300
000
Blue
400
465
Red
400
625
Infrared
400
850
White
400
000
Blue
500
465
Red
500
625
Infrared
500
850
White
500
000
Blue
600
465
Red
600
625
Infrared
600
850
White
600
000
Blue
700
465
Red
700
625
Infrared
700
850
White
700
000
Blue
800
465
Red
800
625
Infrared
800
850
White
800
000
Blue
900
465
Red
900
625
Infrared
900
850
White
900
000
Blue
1000
465
Red
1000
625
Infrared
1000
850
White
1000
000
Blue
1100
465
Red
1100
625
Infrared
1100
850
White
1100
000
Blue
1300
465
Red
1300
625
Infrared
1300
850
White
1200
000
White
1300
000
Blue
1400
465
Red
1400
625
Infrared
1400
850
White
1400
000
Blue
1500
465
Red
1500
625
Infrared
1500
850
White
1500
000
Blue
1600
465
Red
1600
625
Infrared
1600
850
White
1600
000
Blue
1700
465
Red
1700
625
Infrared
1700
850
White
1700
000
Blue
1800
465
Red
1800
625
Infrared
1800
850
White
1800
000
Blue
1900
465
Red
1900
625
Infrared
1900
850
White
1900
000
Blue
2000
465
Red
2000
625
Infrared
2000
850
White
2000
000
Blue
2100
465
Red
2100
625
Infrared
2100
850
White
2100
000
Blue
2200
465
Red
2200
625
Infrared
2200
850
White
2200
000
Blue
2300
465
Red
2300
625
Infrared
2300
850
White
2300
000
Blue
2400
465
Red
2400
625
Infrared
2400
850
White
2400
000
