ADVANCED ILLUMINATION

Advanced Illumination - AL143 Area lighting

2x3 spot light

The AL143 spot/bar light is in a 2x3 design, available in a wide range of wavelengths and multiple lens options. It is the ideal illumination for medium working distances, with convenient mounting with an M4 nut channel.



Power options include:

  • C1 connector - for use with DCS series controllers
  • C5 connector - for use with Pulsar 320 strobe controller
  • Continuous in-line controller - powered by 24V power supply
  • Combination strobe/continuous in-line controller - powered by 24V power supply
  • Default-OFF strobe/continuous in-line controller - powered by 24V power supply
  • Flying/tinned leads - powered by 24V power supply



Other Wavelength options:

  • UV - 365, 375, 385, 395, 405
  • Royal blue - 455
  • Blue - 470
  • Cyan - 505
  • Green - 530
  • Amber - 590
  • Red orange - 625
  • Infrared - 730, 850, 940
  • White - WHI



For enquiries or quotes for wavelength and power options not listed here please contact us.

  • Bright area lighting for long distances or large work areas
  • Compact design - only 28 mm high
  • M6 nut ducts for easy installation

Selected variant

Avaible in several variants
ADVANCEDILLUMINATION.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Approvals IEC 62471, CE, RoHS
Color Ultraviolet
Connector/controller Flying/tinned leads
IP Class IP65
Length 92,1
Operating temperature 0 - 60°C
Photobiological Risk Factor IEC 6247 Group 2 (moderate risk)
Standard cable length Up to 2 meters
Wave-Length 365
Weight 140,6

Downloads

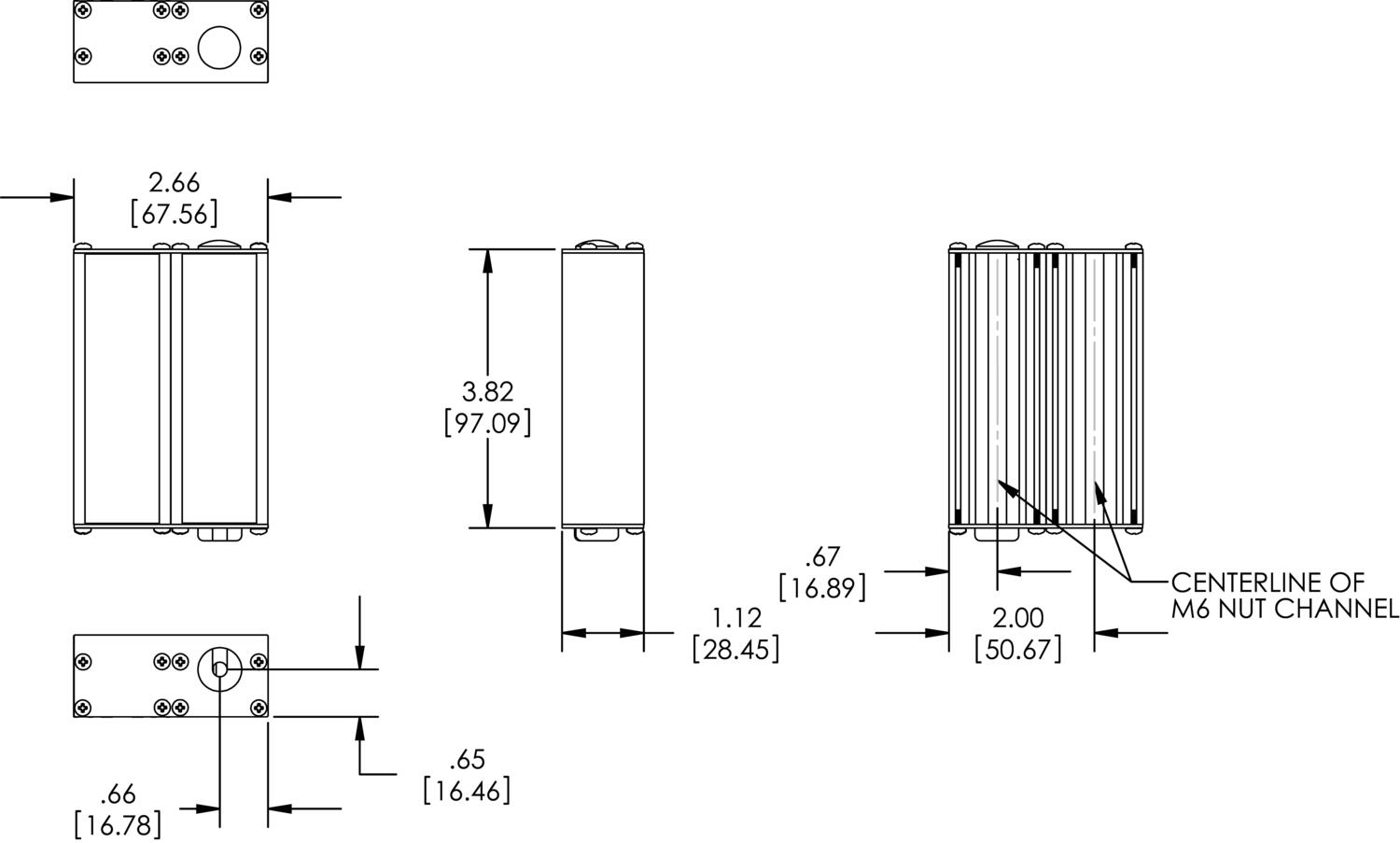

Measurements and connections

Product description

The AL143 spot/bar light is in a 2x3 design, available in a wide range of wavelengths and multiple lens options. It is the ideal illumination for medium working distances, with convenient mounting with an M4 nut channel.



Power options include:

  • C1 connector - for use with DCS series controllers
  • C5 connector - for use with Pulsar 320 strobe controller
  • Continuous in-line controller - powered by 24V power supply
  • Combination strobe/continuous in-line controller - powered by 24V power supply
  • Default-OFF strobe/continuous in-line controller - powered by 24V power supply
  • Flying/tinned leads - powered by 24V power supply



Other Wavelength options:

  • UV - 365, 375, 385, 395, 405
  • Royal blue - 455
  • Blue - 470
  • Cyan - 505
  • Green - 530
  • Amber - 590
  • Red orange - 625
  • Infrared - 730, 850, 940
  • White - WHI



For enquiries or quotes for wavelength and power options not listed here please contact us.

Accessories

Related products

My favourites Articles Color Connector/controller Photobiological Risk Factor IEC 6247 Wave-Length Price
159615_812.tif
Ai General Purpose Spot Light, UV 365, 24V
Art:
AL143-36524 Copied
Ultraviolet
Flying/tinned leads
Group 2 (moderate risk)
365
159615_812.tif
Ai General Purpose Spot Light, UV 365, I3
Art:
AL143-365I3 Copied
Ultraviolet
Strobe/continuous in-line controller
Group 2 (moderate risk)
365
159615_812.tif
Ai General Purpose Spot Light, UV 385, C1
Art:
AL143-385C1 Copied
Ultraviolet
C1 connector
Group 2 (moderate risk)
385
159615_812.tif
Ai General Purpose Spot Light, UV 395, 24V
Art:
AL143-39524 Copied
Ultraviolet
Flying/tinned leads
Group 2 (moderate risk)
395
159615_812.tif
Ai General Purpose Spot Light, UV 395, pulsar connector
Art:
AL143-395C5 Copied
Ultraviolet
C5 connector
Group 2 (moderate risk)
395
159615_812.tif
Ai General Purpose Spot Light, UV 395, ICS2
Art:
AL143-395IC Copied
Ultraviolet
Continuous in-line controller
Group 2 (moderate risk)
395
159615_812.tif
Ai General Purpose Spot Light, royal blue 455, 24V
Art:
AL143-45524 Copied
Royal blue
Flying/tinned leads
Group 1 (low risk)
455
159615_812.tif
Ai General Purpose Spot Light, royal blue 455, IC
Art:
AL143-455IC Copied
Royal blue
Continuous in-line controller
Group 1 (low risk)
455
159615_812.tif
Ai General Purpose Spot Light, blue 470, 24V
Art:
AL143-47024 Copied
Blue
Flying/tinned leads
Group 1 (low risk)
470
159615_812.tif
Ai General Purpose Spot Light, blue 470, C1
Art:
AL143-470C1 Copied
Blue
C1 connector
Group 1 (low risk)
470
159615_812.tif
Ai General Purpose Spot Light, blue 470, pulsar connector
Art:
AL143-470C5 Copied
Blue
C5 connector
Group 1 (low risk)
470
159615_812.tif
Ai General Purpose Spot Light, blue 470, ICS2
Art:
AL143-470IC Copied
Blue
Continuous in-line controller
Group 1 (low risk)
470
159615_812.tif
Ai General Purpose Spot Light, green 530, 24V
Art:
AL143-53024 Copied
Green
Flying/tinned leads
Group 1 (low risk)
530
159615_812.tif
Ai General Purpose Spot Light, green 530, pulsar connector
Art:
AL143-530C5 Copied
Green
C5 connector
Group 1 (low risk)
530
159615_812.tif
Ai General Purpose Spot Light, green 530, I3
Art:
AL143-530I3 Copied
Green
Strobe/continuous in-line controller
Group 1 (low risk)
530
159615_812.tif
Ai General Purpose Spot Light, green 530, ICS2
Art:
AL143-530IC Copied
Green
Continuous in-line controller
Group 1 (low risk)
530
159615_812.tif
Ai General Purpose Spot Light, amber 590, 24V
Art:
AL143-59024 Copied
Amber
Flying/tinned leads
Group 1 (low risk)
590
159615_812.tif
Ai General Purpose Spot Light, amber 590, pulsar connector
Art:
AL143-590C5 Copied
Amber
C5 connector
Group 1 (low risk)
590
159615_812.tif
Ai General Purpose Spot Light, amber 590, ICS2
Art:
AL143-590IC Copied
Amber
Continuous in-line controller
Group 1 (low risk)
590
159615_812.tif
Ai General Purpose Spot Light, red orange 625, 24V
Art:
AL143-62524 Copied
Red orange
Flying/tinned leads
Group 1 (low risk)
625
159615_812.tif
Ai General Purpose Spot Light, red orange 625, C1
Art:
AL143-625C1 Copied
Red orange
C1 connector
Group 1 (low risk)
625
159615_812.tif
Ai General Purpose Spot Light, red orange 625, pulsar connector
Art:
AL143-625C5 Copied
Red orange
C5 connector
Group 1 (low risk)
625
159615_812.tif
Ai General Purpose Spot Light, red orange 625, I3
Art:
AL143-625I3 Copied
Red orange
Strobe/continuous in-line controller
Group 1 (low risk)
625
159615_812.tif
Ai General Purpose Spot Light, red orange 625, ICS2
Art:
AL143-625IC Copied
Red orange
Continuous in-line controller
Group 1 (low risk)
625
159615_812.tif
Ai General Purpose Spot Light, IR 850, 24V
Art:
AL143-85024 Copied
Infrared
Flying/tinned leads
Exempt
850
159615_812.tif
Ai General Purpose Spot Light, IR 850, pulsar connector
Art:
AL143-850C5 Copied
Infrared
C5 connector
Exempt
850
159615_812.tif
Ai General Purpose Spot Light, IR 850, ICS2
Art:
AL143-850IC Copied
Infrared
Continuous in-line controller
Exempt
850
159615_812.tif
Ai General Purpose Spot Light, white 000, 24V
Art:
AL143-WHI24 Copied
White
Flying/tinned leads
Group 1 (low risk)
WHI
159615_812.tif
Ai General Purpose Spot Light, white WHI, C1
Art:
AL143-WHIC1 Copied
White
C1 connector
Group 1 (low risk)
WHI
159615_812.tif
Ai General Purpose Spot Light, white 000, pulsar connector
Art:
AL143-WHIC5 Copied
White
C5 connector
Group 1 (low risk)
WHI
159615_812.tif
Ai General Purpose Spot Light, white 000, ICS2
Art:
AL143-WHIIC Copied
White
Continuous in-line controller
Group 1 (low risk)
WHI
